Kohler Torsion User Manual

9
1160104-W2-D

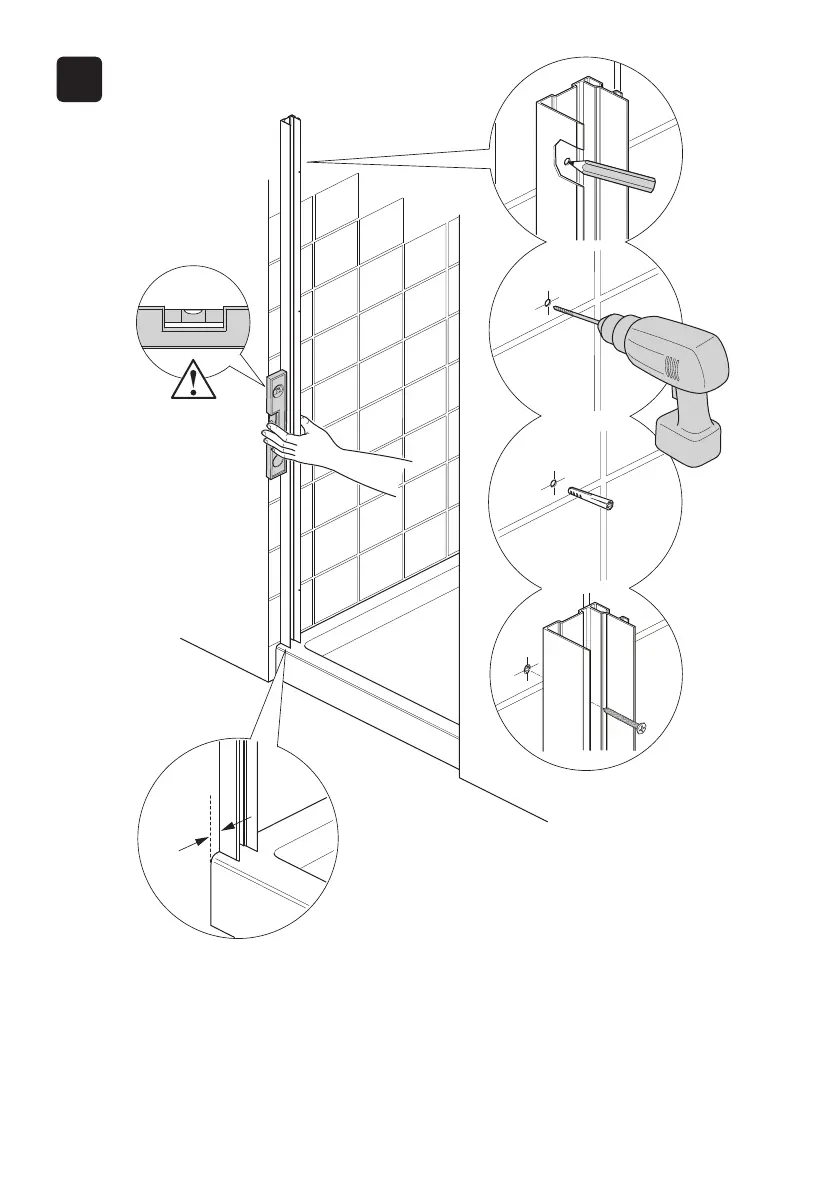

(a) Positionthesecondwallchannel(hingeside)onthewall.Usingaspiritlevel
make sure that it is upright.
(b) Markthepositionofthexingholes,thenremovethewallchannel.
(c) Drill witha 6 mm masonrybit(not supplied) andplugusing the wall plugs
(supplied).
(d) Positionthewallchannelonthewallandinstallthexingscrews.
(e) Fullytightenthexingscrews,makingsurethattheU-channelisupright.
4
20 mm
± 0 mm
6 mm
x4
x4
x4
