ASSEMBLY
4. Slide the wheel axle washer onto the wheel axle pin
(see Figure 7).
1
2

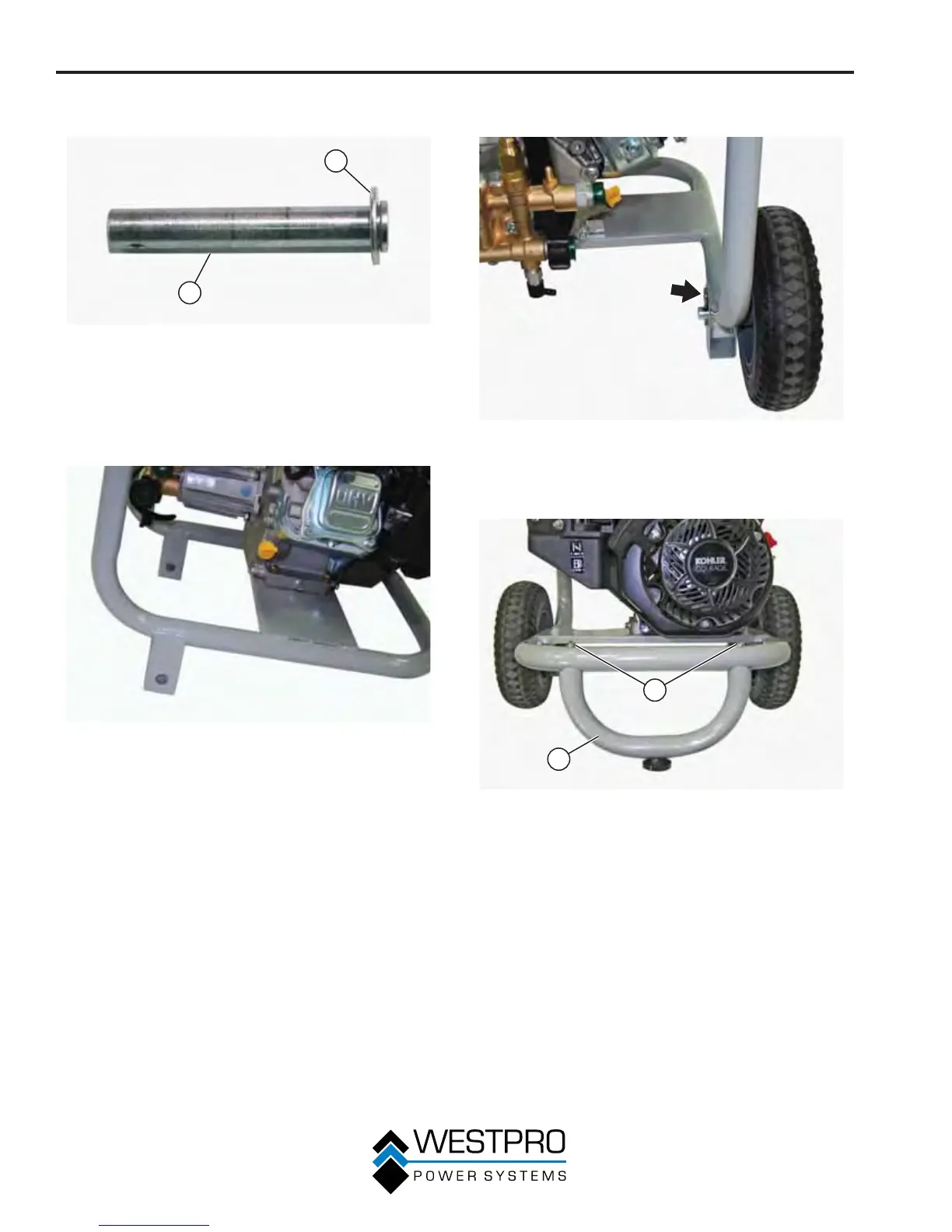

Figure 7 – Installing Wheel
Axle Washer
1 - Wheel Axle
Washer
2 - Wheel Axle Pin
5. Install the pin into the wheel assembly.
6. Locate the wheel axle mounting holes (see Figure
8). Install the pin through the axle mounting holes.
Figure 8 – Wheel Axle Mounting Holes
7. Secure the wheel axle pin in position with the wheel
axle lock pin (see Figure 9).
Figure 9 – Installing Wheel Axle Lock Pin
8. WP3000 only – Install the front support using
the two front support nuts (M6). Tighten the nuts
securely (see Figure 10).
1
2
Figure 10 – Installing Front Support
1 - Front Support 2 - Front Support
Nuts (M6)
