MAINTENANCE
1
2

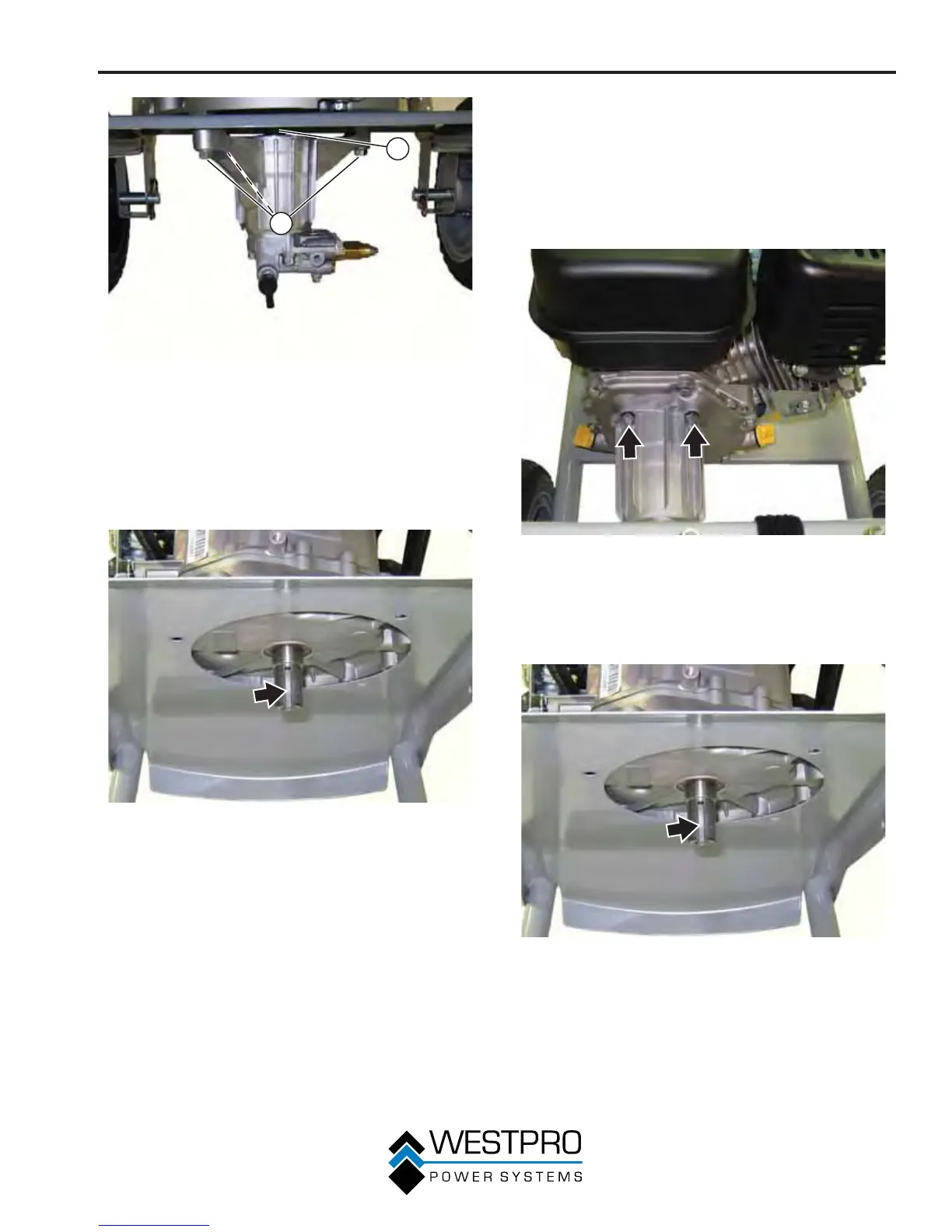

Figure 54 – Pump/Engine Mounting Bolts
1 - Pump/Engine
Mounting Bolts
2 - Engine
Crankshaft
4. Apply a thin layer of grease to the crankshaft before
installing the pump
.
5. Inspect the key and keyway on crankshaft (see
Figure 55).
Figure 55 – Key and Crankshaft Keyway
6. Slide the pump onto the crankshaft making sure the
k
ey lines up with the keyway in the pump.
7. Install the pump/engine mounting bolts and tighten
to 25 ft-lb (34 N·m).
Remove and Install the Pump – WP3000
1. Disconnect high-pressure hose and soap siphon
hose from pump.
2. Remove the 4 mounting bolts and washers holding
the pump to the engine (see Figure 56).
3. Slide the pump out off of the crankshaft (see Figure
56).
Figure 56 – Pump Mounting Bolts
4. Inspect the key and keyway on crankshaft (see
Figure 57).
5. Apply a thin layer of grease to the crankshaft before
installing the pump.
Figure 57 – Key and Crankshaft Keyway
6. Slide the pump onto the crankshaft making sure the
key lines up with the keyway in the pump.
7. Install the pump/engine mounting bolts and tighten
to 30 ft-lb (41 N·m).
