ASSEMBLY
1
2

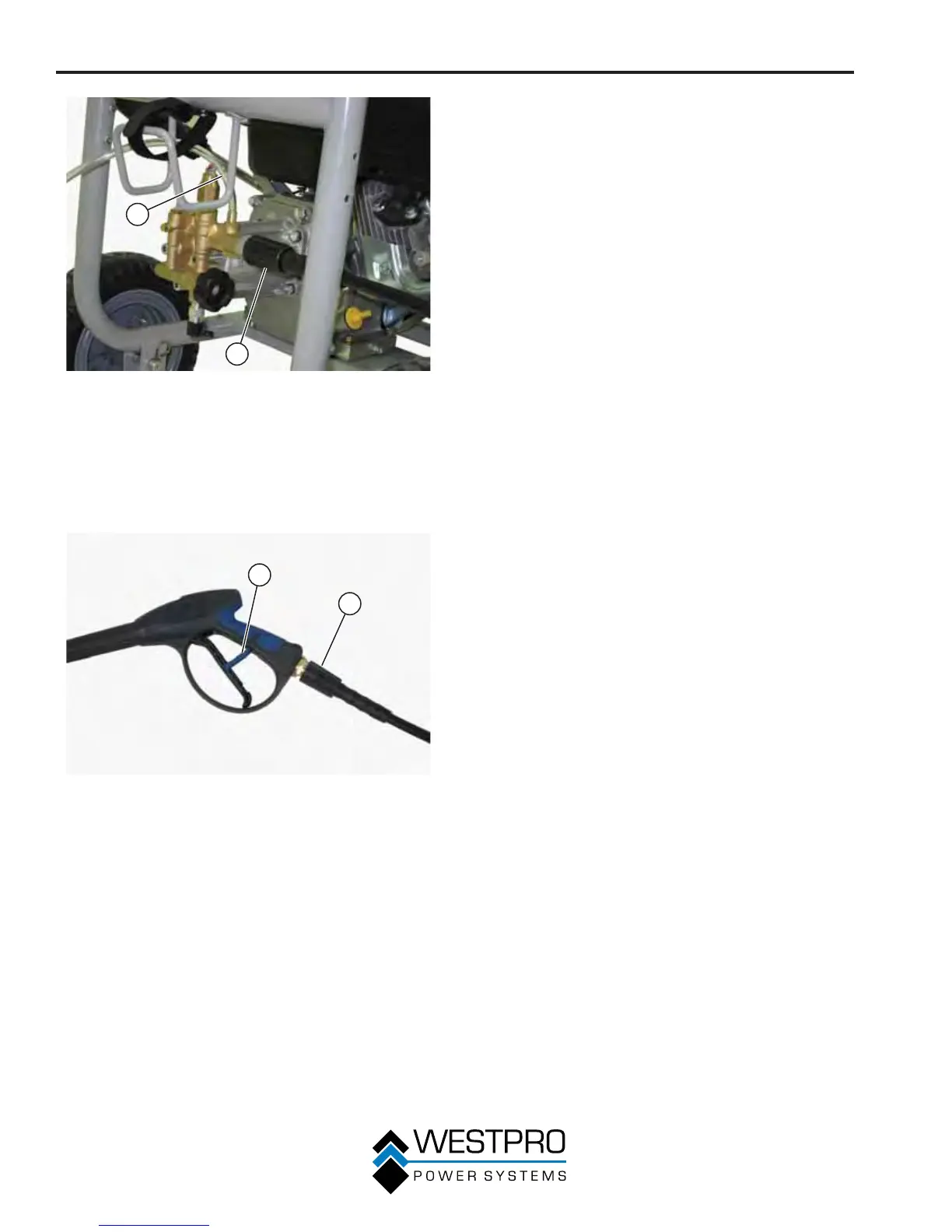

Figure 15 – Installing High-Pressure Hose – WP3000
1 - Soap Hose 2 - Hose Fitting
14. Connect the soap hose to the barbed fi tting if you
are going to be using soap (see Figure 14 and
Figure 15).
15.
Flip the trigger lock up to lock the trigger in the OFF
position (see Figure 16).
1
2
Figure 16 – T
rigger Lock in OFF Position
1 - T
rigger Lock 2 - Hose Fitting
16. Install the high-pressure hose to the spray gun
and tighten the hose fi tting (see Figure 16). Do not
overtighten. The fi tting only needs to be hand-tight.
