9

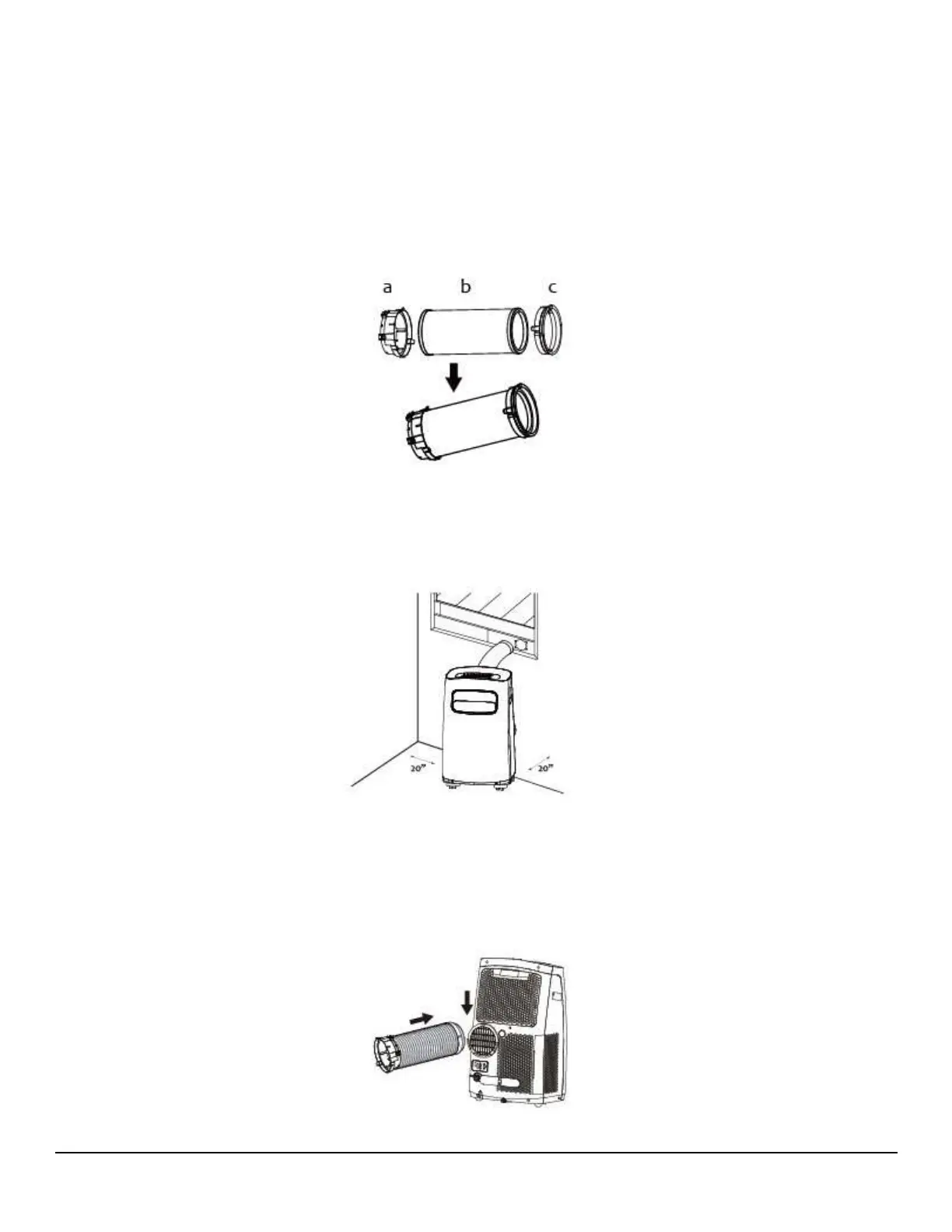

Connecting the Exhaust Hose
Step 1
Connect the Adapters to the Exhaust Hose
To connect the Window Exhaust Adapter (a) to the Exhaust Hose (b), simply extend the open
end of the flexible exhaust hose so that you can thread the adapter into place. Rotate the
adapter until it is tightened securely. Repeat this process for the Hose Adapter (c) and tighten it
securely.
Step 2
Place the Unit in the Installation Location
Roll the unit towards the location where the window kit has been installed. Please ensure that
the unit is at least 20 inches from the wall to ensure proper ventilation.
Step 3
Connect the Exhaust Hose to the unit
Align the hooks on the Hose Adapter (c) to the Exhaust Air Outlet on the back of the unit. Slide
the hose downward and into place.
To Next Page
