LADDERS
A diagonally mounted ladder (7, Figure 2-1) provides
an easy and safe path for the operator to mount and
dismount the truck. In addition, a vertical ladder (6) is
available if emergency exit from the cab is neces-
sary. Anti-skid material is placed at various places on
the decks and ladder platform area. Be certain this
material is in good condition and replace when worn.
The diagonal ladder must be removed from the truck
if it becomes necessary to remove the radiator or the
complete power module for major repairs.
When removing the ladder(s), check to be certain all
wiring and hoses which may be attached to the struc-
ture have been removed.

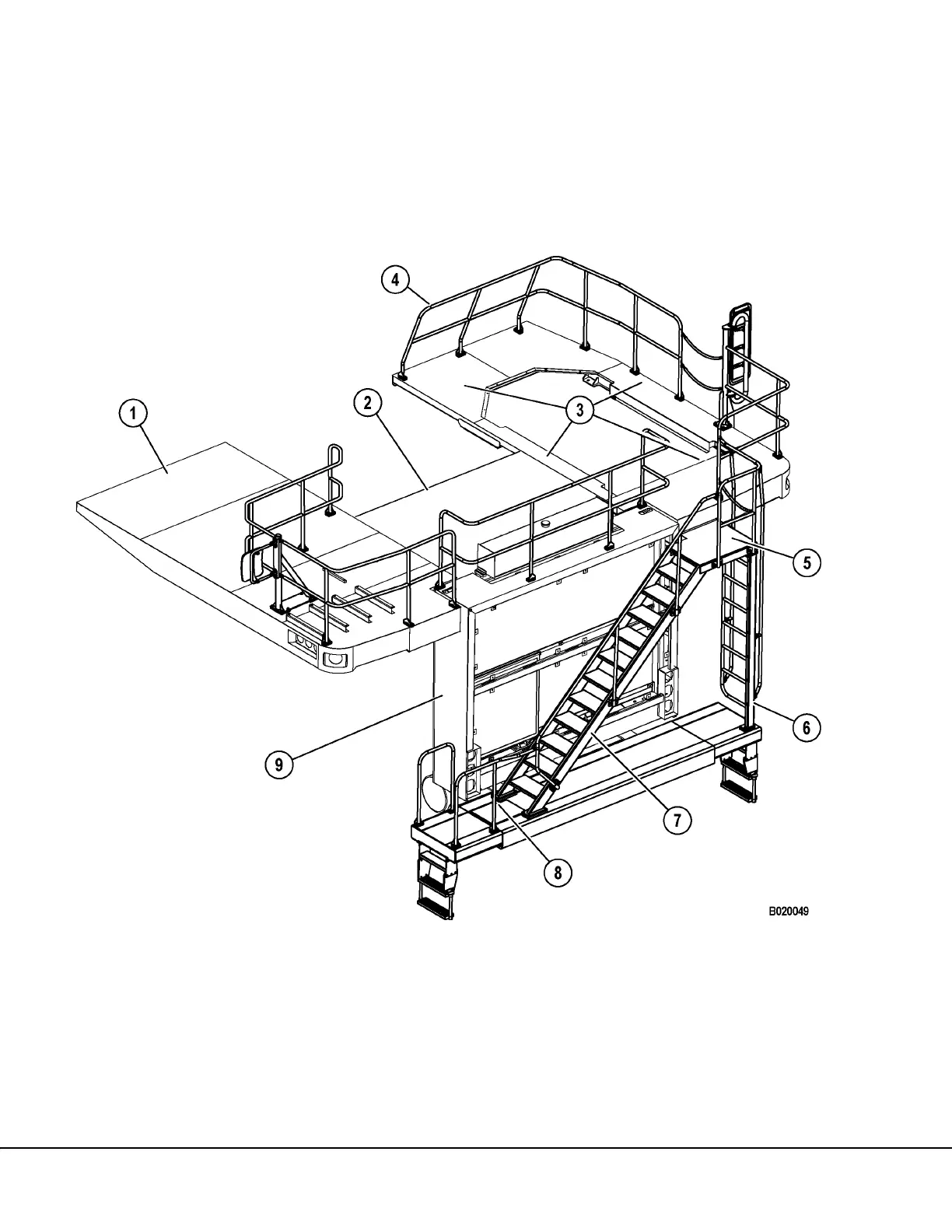

FIGURE 2-1. ACCESS LADDERS AND DECKS
1. Right Deck
2. Center Deck
3. Left Deck Components
4. Deck Handrail
5. Platform
6. Vertical Ladder
7. Diagonal Ladder
8. Ladder Handrail
9. Grille Structure
