OPERATION TRANSPORTATION
3-105
LIFTING MACHINE
WARNING
● Do not lift the machine with any worker on it.
● Use wire ropes having sufficient strength for the weight of this machine.

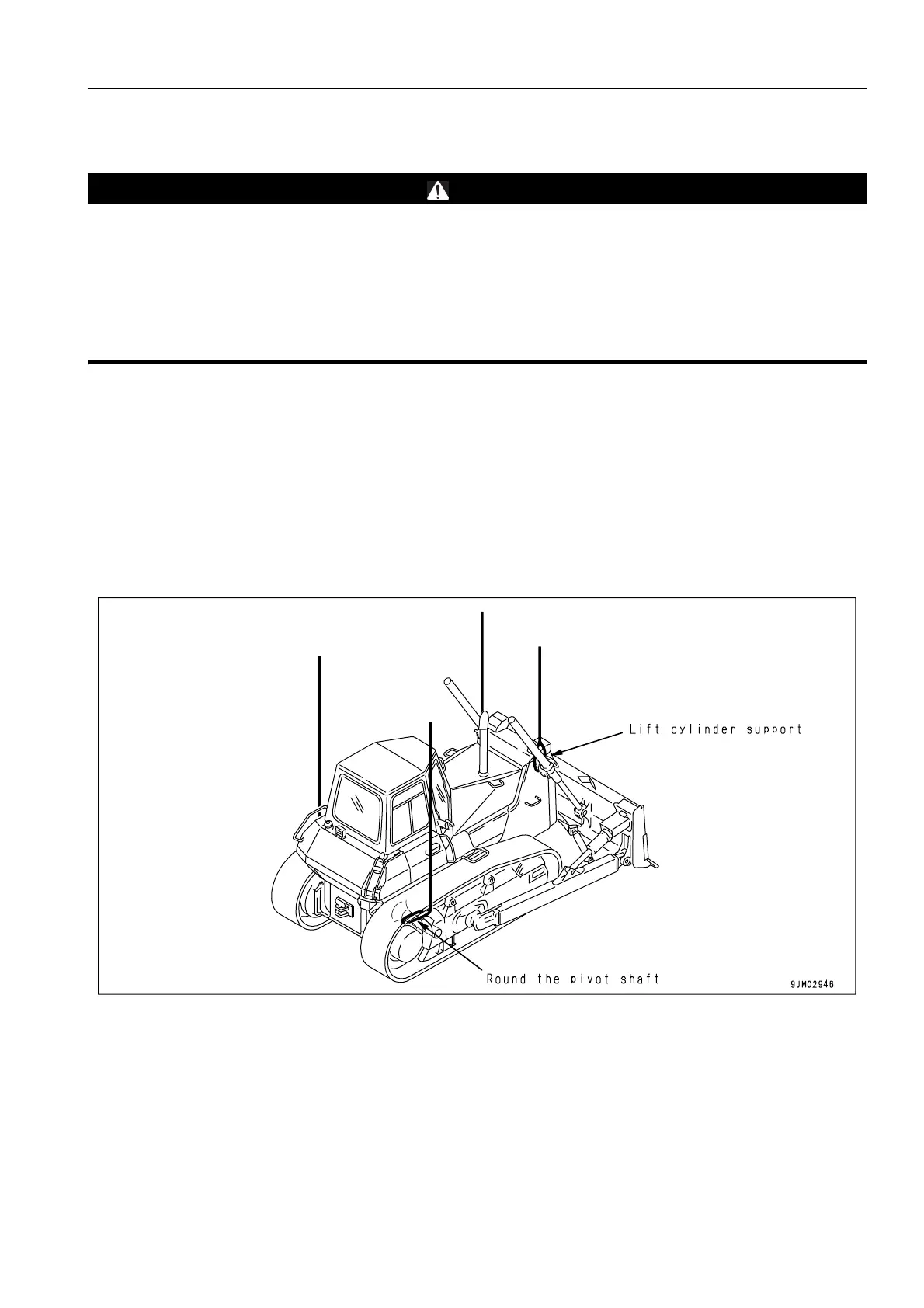

● Lift the machine in only the position shown below. If it is lifted in another position, it may be unbal-
anced.
● Lift the machine horizontally.
NOTICE
The lifting procedure applies to machines with standard specifications.
The method of lifting differs according to the attachments and options actually installed. In such cases,
please contact your Komatsu distributor for information.
For details of the weight, see "SPECIFICATIONS (PAGE 5-2)".
PROSEDURE FOR LIFTING OPERATIONS
To Next Page
