EXPLANATION OF COMPONENTS OPERATION
3-10

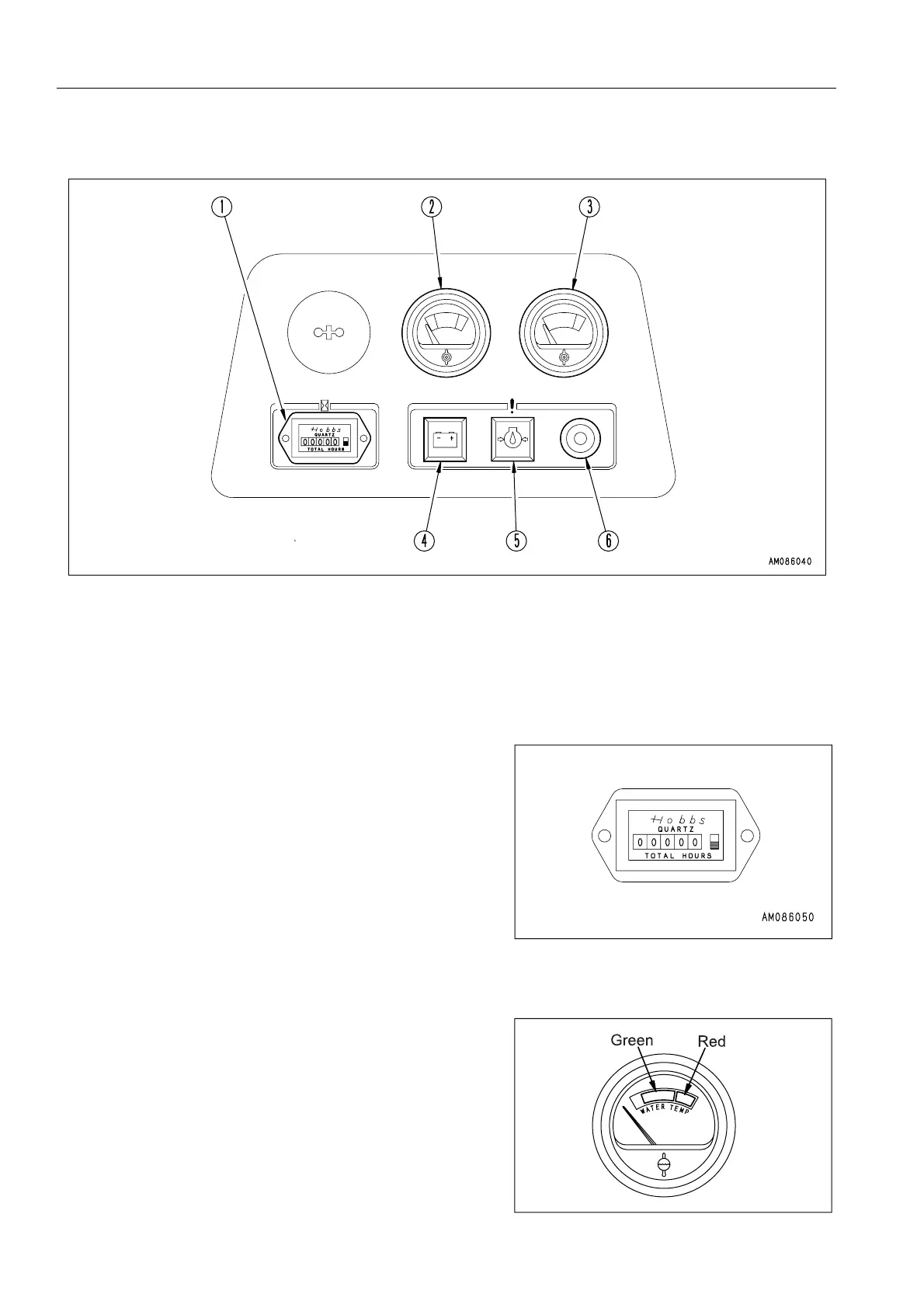

GAUGE PANEL
(Gauge panel specification)
(1) Service meter (4) Charge lamp
(2) Engine water temperature gauge (5) Engine oil pressure caution lamp
(3) Transmission oil temperature gauge (6) Glow signal lamp
SERVICE METER
This meter (1) shows the total number of hours the machine
has operated. Set the periodic service interval using this dis-
play. The service meter advances while the engine is running,
even if the machine is not traveling. Meter will advance by 1 for
each hour of operation regardless of the engine speed.
ENGINE WATER TEMPERATURE GAUGE
This gauge (2) indicates the cooling water temperature. When
the indicator is in the green range during operation, the water
temperature is normal.
If the indicator moves from the green range into the red range
during operation, stop the machine immediately, run the engine
under no load at a midrange speed, and wait for the indicator to
go down to the green range. After starting the engine, warm it
up until the indicator moves into the green range.
