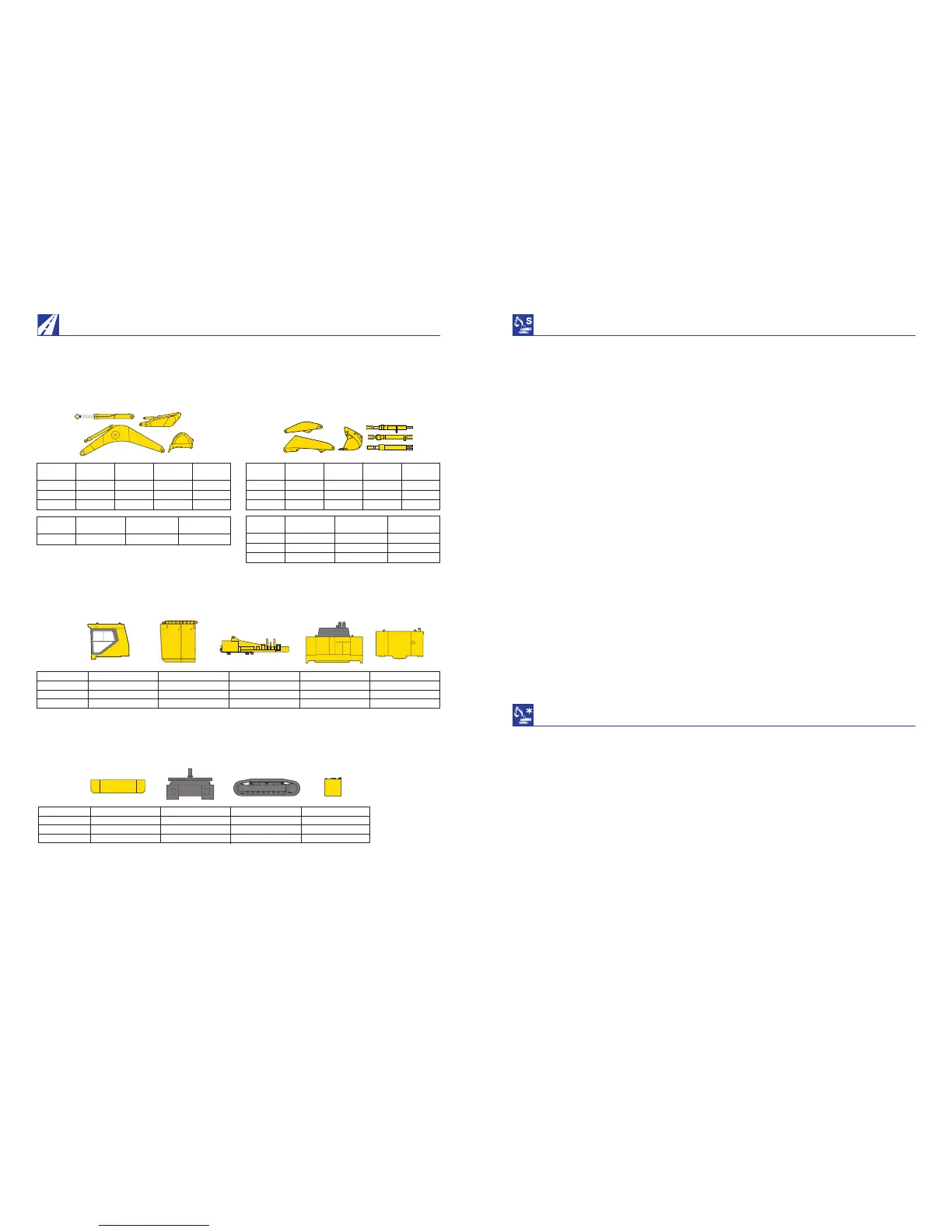

TRANSPORTATION GUIDE
Specifications shown include the following equipment:
Backhoe: boom 8700 mm 28'7", arm 3900 mm 12'10", bucket 12.0 m
3
15.7 yd
3
, shoes 810 mm 32" double grouser
Loading Shovel: boom 5950 mm 19'6", arm 4450 mm 14'7", bucket 11.0 m
3
14.4 yd
3
, shoes 810 mm 32" double grouser
STANDARD EQUIPMENT
OPTIONAL EQUIPMENT
ENGINE AND RELATED ITEMS:
● Air cleaner, double element dry (Inside mounted)
● Two cooling fans with fan guard (Hydraulic driven, for radiator and
oil cooler)
● Engine, Komatsu SAA12V140E-3
● Fuel pre-filters with water separators
ELECTRICAL SYSTEM:
● Alternators, 2 x 90 amp, 24V
● Batteries, 140 Ah, 4 x 12V
● Starting motors, 2 x 11 kW
● Working lights, 4 on boom, 4 on cab base, 3 on fuel tank top front,
1 left front and 1 left under cab side catwalk
● Auto-decelerator and auto-idling system
● AM/FM radio
● Lighting switches on instrument panel
UNDERCARRIAGE:
● 810 mm 32” double grouser shoes
● 8 track rollers / 3 carrier rollers (each side)
● Hydraulic idler cushion (HIC) with shock absorbing accumulator
● Track guiding guard (Separate type)
GUARDS AND COVERS:
● Dustproof net for radiator and oil cooler
● Pump/engine room partition cover
● Power module under cover
● Travel motor guard
OPERATOR'S CAB:
● Large damper mounted and pressurized mining shovel cab with
large tinted windshield, lockable door, large twin wipers and
washers, floor mats, cigarette lighter, ashtray and cup holders
● Instrument panel with electronic display/monitor system (7”-TFT-
LCD), electrically-controlled throttle dial, electric service meter,
gauges (coolant temperature, hydraulic oil temp., fuel level, PTO
oil temp., engine oil temp.), truck counters, eco-gauge
● Built-in top guard conforming to OPG level 2 (ISO)
● Automatic air conditioners (twin)
● Seat, fully adjustable air suspension with retractable seat belt
● Trainer's seat
● Sun shield
● Fire extinguisher
● Emergency engine stop switch
● Lock lever
HYDRAULIC SYSTEM:
● E-OLSS (Electronic Open Center Load Sensing System)
● 4 variable displacement piston pumps (2 tandem pumps) for work
equipment, travel and swing, 2 variable displacement piston
pumps (1 tandem pump) for fan drive
● Two axial piston motors for swing with single stage relief valve
● One axial piston motor per track for travel with counterbalance
valve
● Four control valves (two integrated valves) for work equipment,
swing and travel
● Control levers for work equipment and swing with PPC system
● Control levers and pedals for travel with PPC system
● Oil cooler
● High-pressure in-line oil filters
● Drain-filters for pumps & motors
● Shockless boom control
● Two-mode pressure setting for boom
DRIVE SYSTEM:
● Planetary travel gear with axial piston motor
● Travel parking brake
OTHER STANDARD EQUIPMENT:
● Fully-automatic greasing system with 200 liter 52.8 U.S. gal.
● Manual grease gun for track adjuster
● Hydraulic-actuated ladder
● Step ladder for emergency escape
● Fuel tank, 3400 liter 898 U.S. gal.
● Refueling port
● Automatic swing holding brake
● Emergency engine stop switch and fuel cut-off lever
● Maintenance light
● Step light with timer
● Light in machine cab
● Travel alarm
● Wide catwalk with kickboard (100 mm 3.9'' height) and large
handrail
● Interconnected horn and flashing light
● Dual rearview mirrors
● VHMS
● Additional 6 fuses and terminals
● Arms (Backhoe):
—3900 mm 12'10'' arm assembly
● Arms (Loading shovel):
—4450 mm 14'7'' arm assembly
● Booms (Backhoe):
—8700 mm 28'7'' boom assembly
● Booms (Loading shovel):
—5950 mm 19'6'' boom assembly
● HID lamp system
● Rearview monitoring system
● Cab front guard
● PM tune-up service connection
● Track shoe, 1010 mm 40'' triple grouser
● Center frame under cover
● Grease refill system
● Service center (Grease shut-off valve available to order)
● Isolators, battery and starter
● Jump start receptacle
● Satellite communication system for VHMS (Orbcomm)
● Heavy-duty rock bucket
● 55˚C spec.
● Additional filter system for poor-quality fuel
● Additional pre-cleaner for engine air filter (Enginaire)
● Full length track guiding guards
Length mm ft.in 2885 9'6" 3660 12'0" 7575 24'10" 5215 17'1" 3100 10'2"
Width mm ft.in 1880 6'2" 2505 8'3" 3180 10'5" 2455 8'1" 875 2'10"
Height mm ft.in 2520 8'3" 2700 8'10" 2640 8'8" 3195 10'6" 2070 6'10"
Weight t
U.S. ton 1.8 1.98 2.5 2.8 26.5 29.2 16.1 17.7 2.4 2.65
Length mm ft.in 6420 21'1" 3815 12'6" 7435 24'5" 1860 6'1"
Width mm ft.in 1115 3'8" 3190 10'6" 1720 5'8" 1115 3'8"
Height mm ft.in 1505 4'11" 2210 7'3" 1920 6'4" 2125 7'0"
Weight t
U.S. ton 24.5 27.0 18.0 19.8 26.0 x 2 28.65 x 2 3.5 3.86
Length Width Height Weight
mm ft in mm ft in mm ft in t U.S. ton
Boom 9170 30'1" 2065 6'9" 3195 10'6" 20.9 23.0
Arm 5495 18'0" 1605 5'3" 2055 6'9" 12.9 14.2
Bucket 3540 11'7" 2790 9'2" 2320 7'7" 9.7 10.7
Length Width Height Weight
mm ft in mm ft in mm ft in t U.S. ton
Boom 6400 21'0" 1740 5'9" 2000 6'7" 11.8 13.0
Arm 4900 16'1" 1450 4'9" 1700 5'7" 9.5 10.5
Bucket 3500 11'6" 3190 10'6" 2920 9'7" 14.4 15.9
Length Weight Quantity
mm ft in t U.S. ton
Boom cylinder 4265 14'0" 1.90 2.09 2
Arm cylinder 3370 11'9" 1.05 1.16 2
Bucket cylinder 3350 11'0" 1.10 1.21 2
Length Weight Quantity
mm ft in t U.S. ton
Boom cylinder 4265 14'0" 2.4 2.7 2
Work equipment assembly-backhoe
Work equipment assembly-Loading Shovel
Cab Cab base Revolving frame Power module Fuel tank
Counter weight Center frame Undercarriage Hydraulic tank
Others
Catwalk, step, handrail, small removed parts, etc.
