ATTACHMENTS AND OPTIONS
MACHINE READY FOR ATTACHMENT

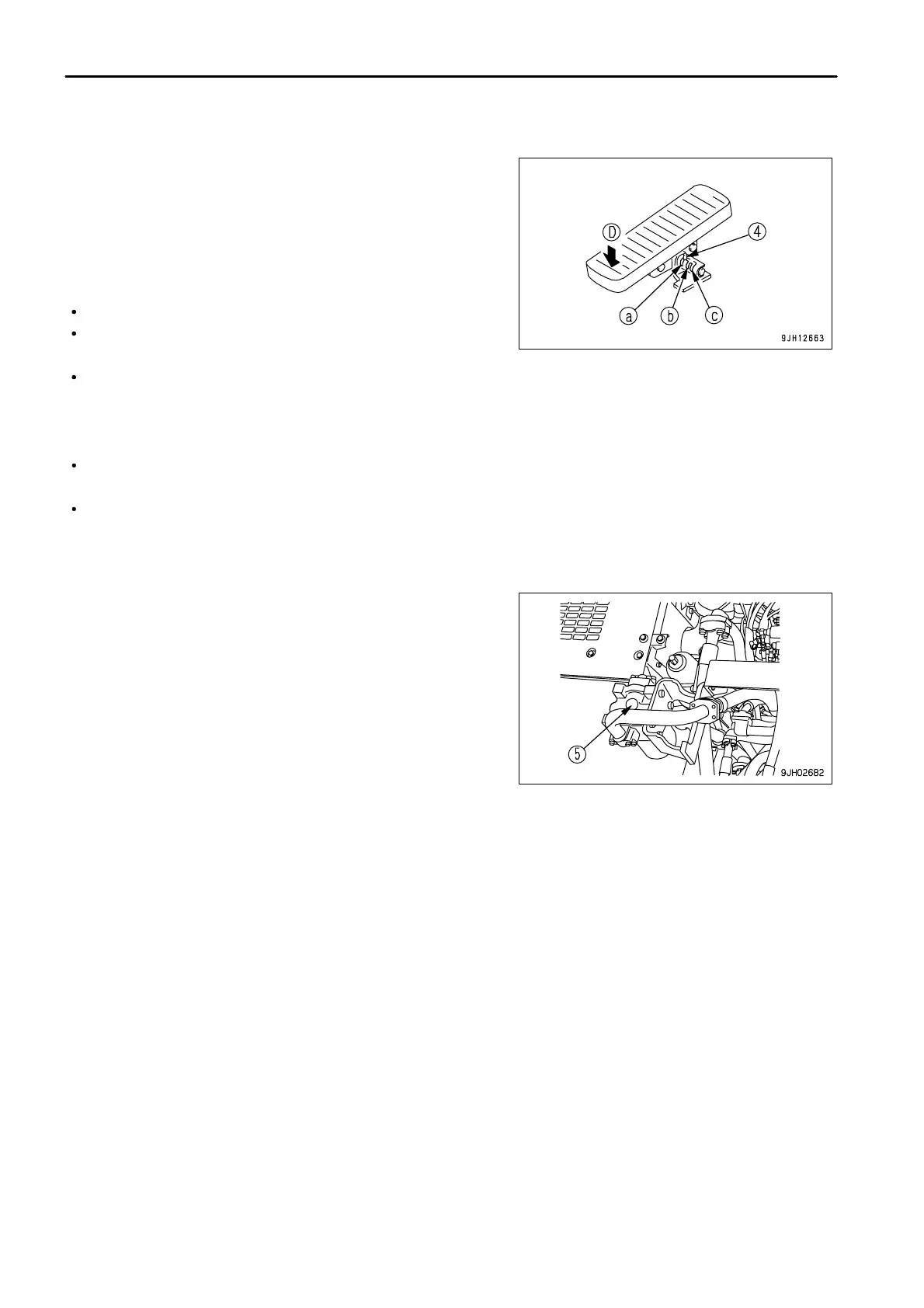

Lock Pin
This pin (4) locks the control pedal.
Position (a): Locked
Position (b): Only front of pedal can be operated to full position
(rear is locked)
Position (c): Both front and rear of pedal can be operated to
full position
When not using the attachment, set the lock pin to position (a).
When using a breaker, select B mode on the monitor and set the
lock pin to position (b).
When using a Crasher, select P or E mode on the monitor and
set the lock pin to position (c).
NOTICE
When using the breaker, if the lock pin is set to position (c) and the pedal is operated in direction (D), it will cause damage or
defective operation of the breaker. To prevent this, when using the breaker, always set the lock pin to position (b).
Before changing the position of the lock pin, stop the engine.
Breaker Circuit Additional Oil Filter
This filter (5) prevents deterioration of the hydraulic oil when using
a breaker.
Oil only flows when B mode is selected on the monitor.
NOTICE
Always install an additional filter in the return circuit on machines
equipped with a hydraulic breaker.
6 - 6
