2.

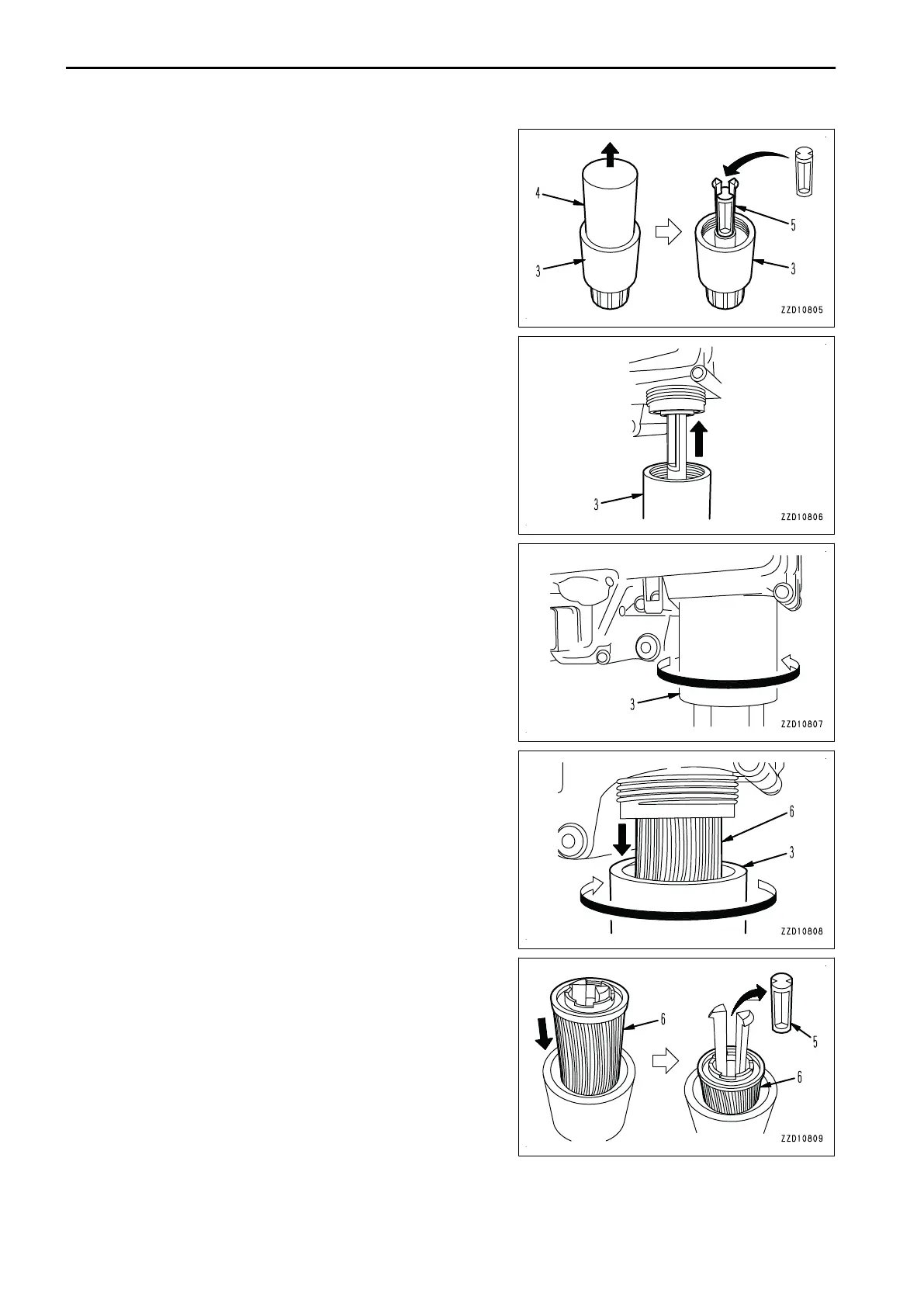

Turn cap (4) of filter removal tool (3) and remove it.
3.
Check the installation of spacer (5).
4.
Insert filter removal tool (3) into the bottom of the DEF
pump and thrust in with hand.
5.
Check that filter removal tool (3) is fully inserted to the end.
Insert the filter removal tool to the end where you cannot
thrust it in any further.
6.
Turn filter removal tool (3) in reverse, and remove filter (6).
Filter (6) is removed and you can take it out together with
filter removal tool (3).
If filter (6) cannot be removed from DEF pump, grip filter
removal tool (3), pull it down, then it will be removed.
7.
Slide filter (6) down, and remove spacer (5) from filter re-
moval tool (3).
MAINTENANCE PROCEDURE MAINTENANCE
4-74
