OPERATION DETAILED CONTROLS AND GAUGES
3-83

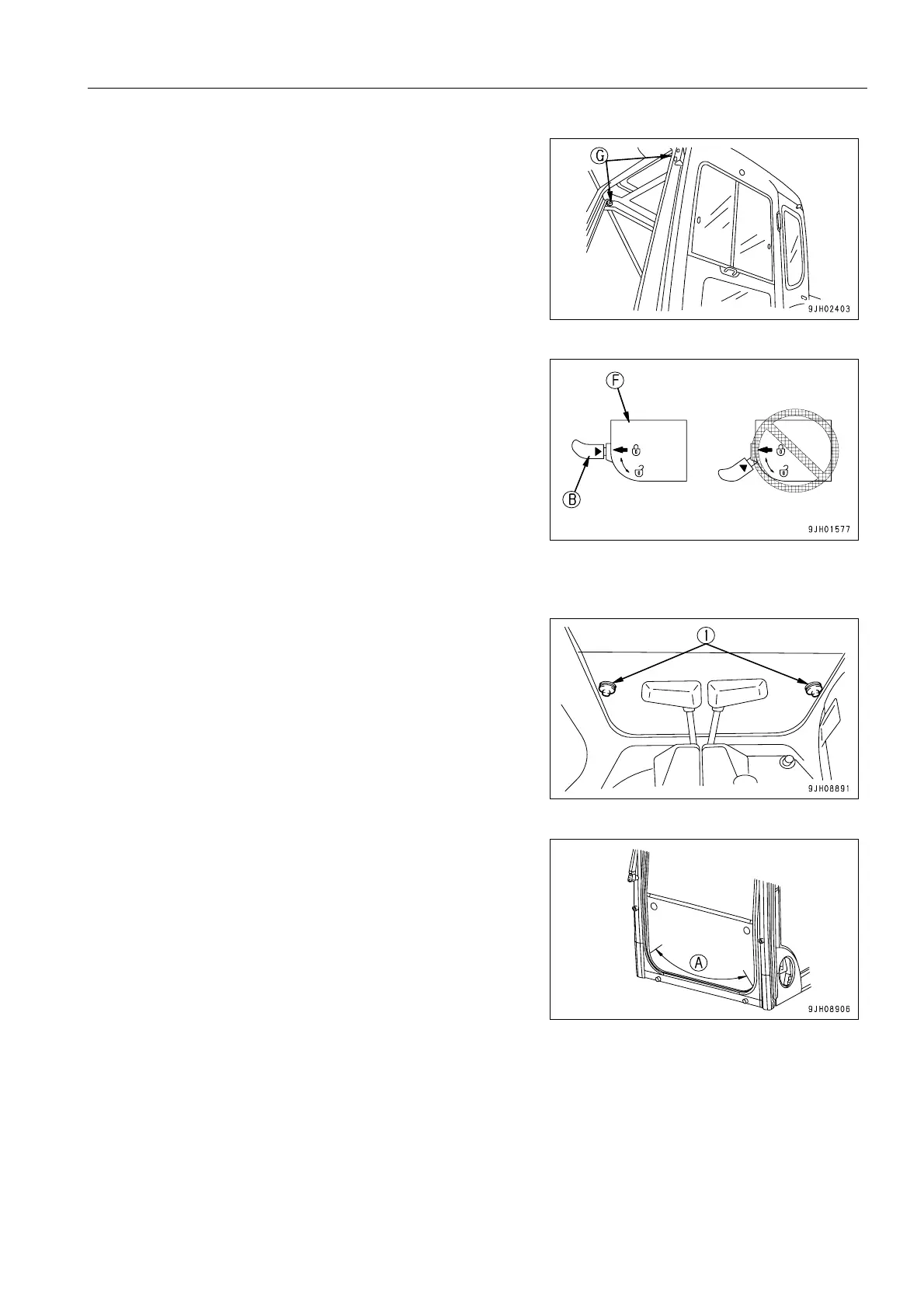

5. When the bottom of the window reaches the top of the bot-
tom window, push the top of the window to the front to push
it against left and right lock catches (G) and engage the
lock.
6. Check that lever (B) is securely at the LOCK position.
q The lock is engaged if the arrow on lock case (F)
matches the position of the arrow on lever (B). Check
visually.
q If the arrow on lock case (F) does not match the posi-
tion of the arrow on lever (B), the lock is not engaged.
Repeat the operation in Step 5 to engage the lock.
Removing Lower Windshield
1. Open the front window, then hold grip (1), pull up, and
remove the bottom window.
q If sand or dust is collected at the bottom of the front window,
it will be difficult to remove the window. In addition, when
stowing, the sand and dust stuck to the glass will be carried
inside the cab. To prevent this, clean area (A) before remov-
ing.
