MACHINE VIEW ILLUSTRATIONS OPERATION
3-4

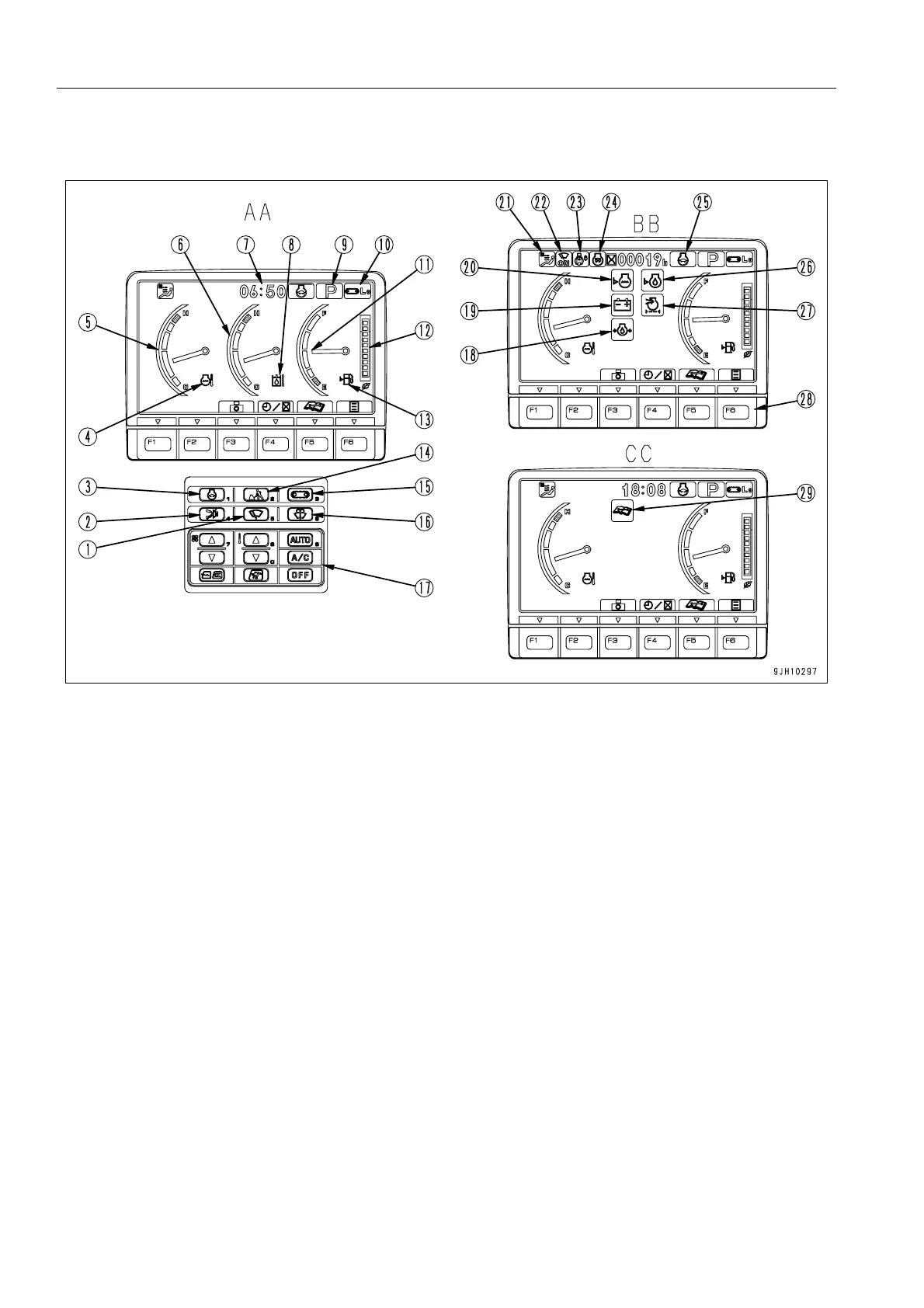

Machine Monitor
AA: Screen for standard
BB: Screen with all lamps lighted up
CC: Maintenance time warning screen
(1) Wiper switch (16) Window washer switch
(2) Buzzer cancel switch (17) Air conditioner control switch
(3) Auto-deceleration switch (18) Engine oil pressure monitor
(4) Engine coolant temperature monitor (19) Charge level monitor
(5) Engine coolant temperature gauge (20) Radiator coolant level monitor
(6) Hydraulic oil temperature gauge (21) Air conditioner monitor
(7) Service meter, Clock (22) Wiper monitor
(8) Hydraulic oil temperature monitor (23) Swing lock monitor
(9) Working mode monitor (24)
Engine pre-heating monitor or One-touch power
max. monitor
(10) Travel speed monitor
(11) Fuel gauge (25) Auto-deceleration monitor
(12) ECO gauge (26) Engine oil level monitor
(13) Fuel level monitor (27) Air cleaner clogging monitor
(14) Working mode selector switch (28) Function switches (F1 to F6)
(15) Travel speed selector switch (29) Maintenance interval monitor
