NOTICE
• Komatsu recommends using Komatsu genuine parts for replacement parts.
• If the machine is operated without DEF filter attached, or with the filter other than Komatsu genuine
parts, foreign materials may enter into DEF pump and DEF injector which will cause failure of the
machine. Never operate the machine without DEF filter attached, nor use the filter other than Komat-
su genuine parts.
• DEF filter cannot be flushed. Flushing or regenerating of it will degrade the performance of filter,
and will cause the breakage of equipment. Never reuse the filter.
• Improper assembly of DEF filter may cause leakage of DEF. Replace the DEF filter in the correct pro-
cedure.
After the engine is stopped, DEF system devices automatically purge DEF in DEF injector and DEF pump and
return it to DEF tank to prevent malfunction of the devices caused by freezing of DEF or deposition of urea.
After the engine is stopped, the devices are operated for a few minutes. Before replacing the filter, clean around
the DEF pump first after DEF system devices stop.
Items to be prepared
• DEF filter removal tool

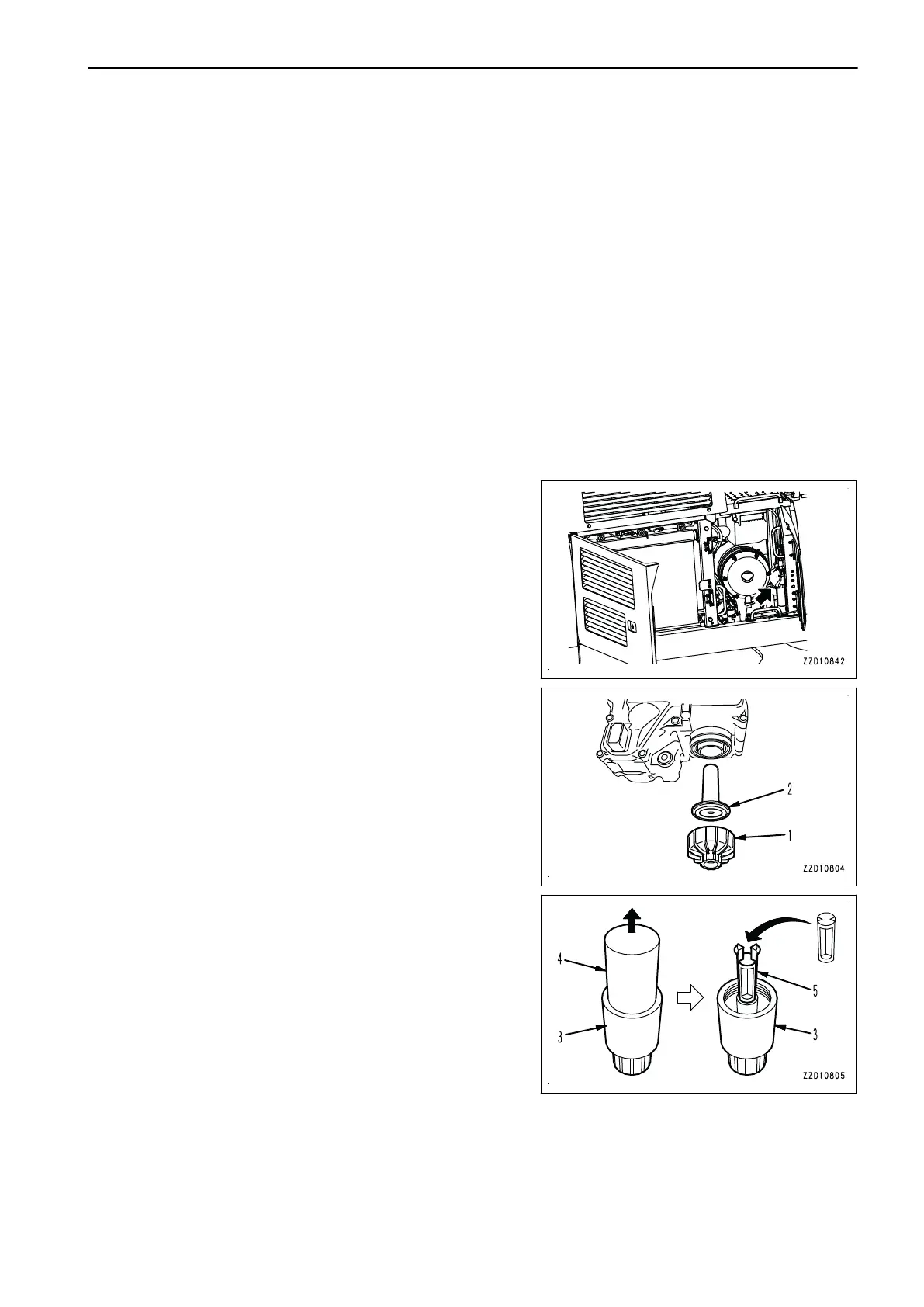

The DEF filter is located at the positions shown in the figure on
the right.
1.
Remove filter cap (1) at the bottom of DEF pump, and re-
move element (2).
2.
Turn cap (4) of filter removal tool (3) and remove it.
3.
Check the installation of spacer (5).
MAINTENANCE MAINTENANCE PROCEDURE
4-73
To Next Page
