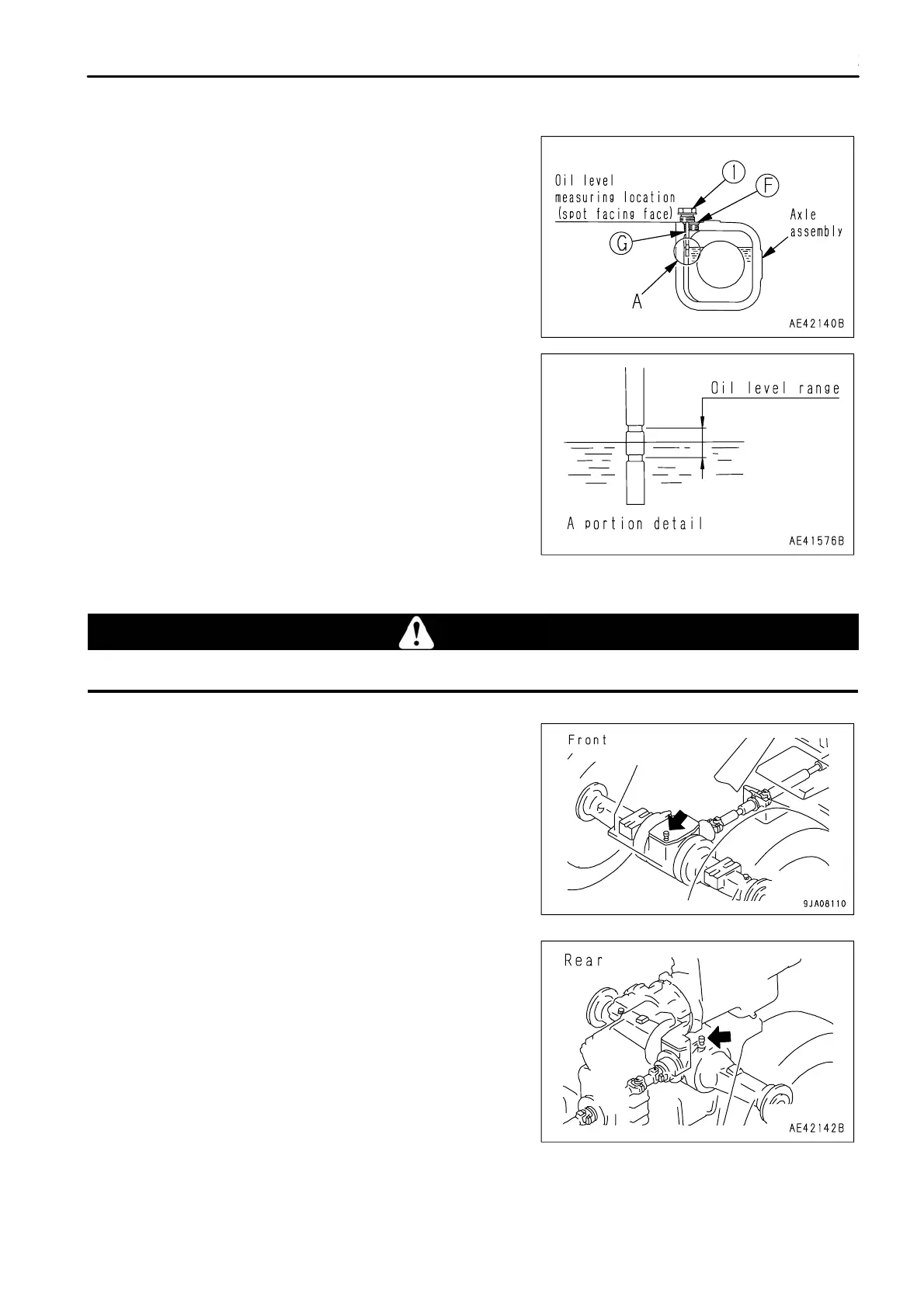

3. Set the oil level gauge (G) as shown in the right diagram.
4.
The oil level is correct when it is between the two lines provided
on the oil level gauge.
If the oil level does not reach the lower line, add axle oil through
filler port (F).
REMARK
For axles with ASD (Limited-Slip Differential), the brand of
lubricating oil is different. Use the specified lubricating oil.
5.
If the oil level is above the upper line, drain off the excess oil
through drain plug (P) and check the oil level again.
6. If the oil level is correct, install plug (1).
Tightening torque: 127 to 177 Nm (13 to 18 kgm, 94.0 to 130.2
lbft)
CLEAN AXLE CASE BREATHER
WARNING
When cleaning the axle breather, apply the parking brake and secure the front and rear frames with the frame lock bar.
Remove all mud and dirt from around the breather with a brush.
After removing the mud or dirt from around the breather, remove
the breather, immerse it in cleaning fluid and clean it.
When cleaning the breather, clean the breathers at two places
(front and rear).
After removing the breather, take steps to prevent dirt or dust from
entering the mount.
4 - 27
To Next Page
