ON
R
Switch between absolute mode
and relative mode
Zero the relative mode
Change battery
with hexagon key (SW4)
Note: Check if O-ring is proberly
seated
Battery
Order No. 75000 12150
Battery spring
Order No. 52710 00053
O-ring for battery compartment
Order No. 52914 01615
Cover for battery compartment
Order No. M04 00150.11
ENGLISH

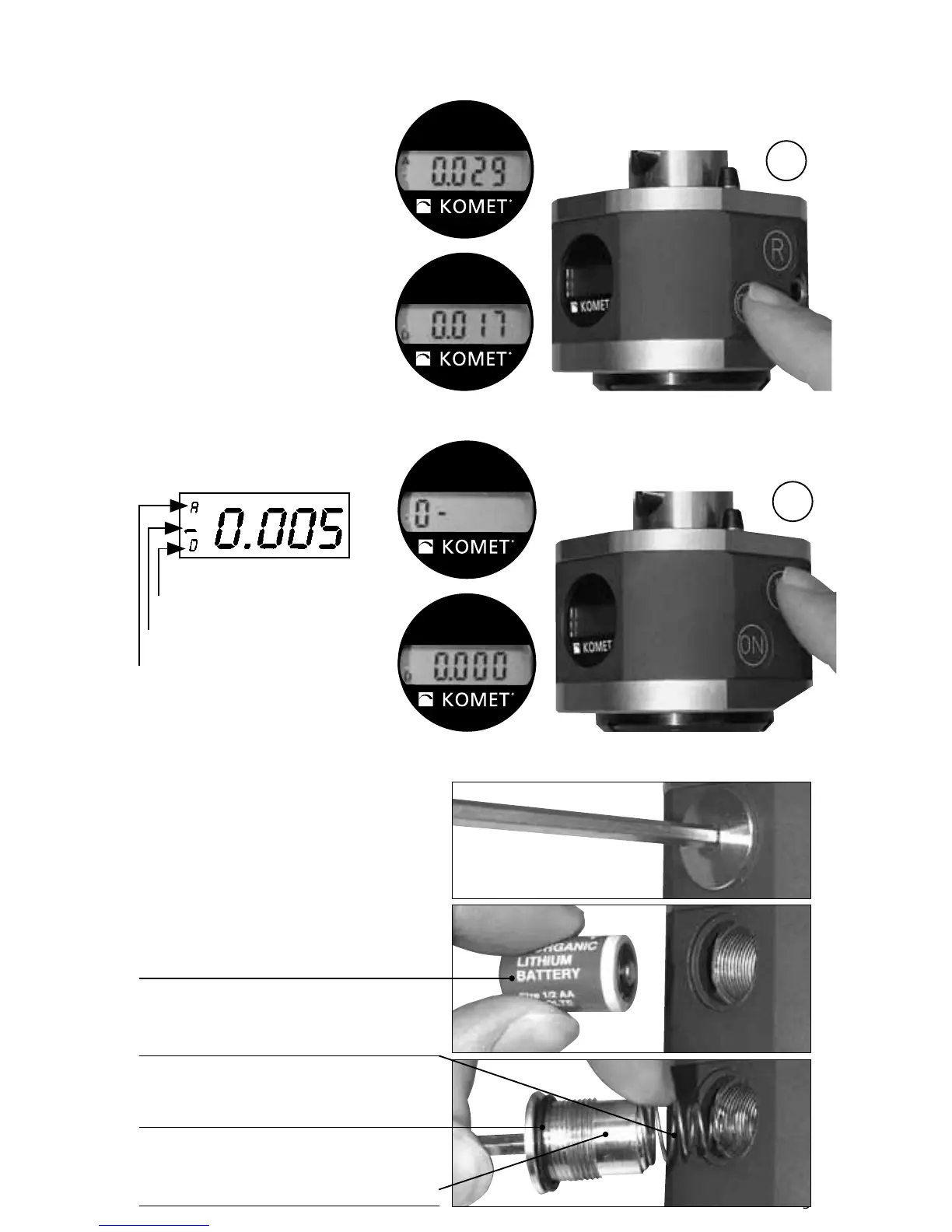

Display:
M040 operation is either in
Absolute (A) or Relative (D)
mode. Absolute zero point
is set during assembly.
The zero point (A) is fixed
at the mechanical zero
position (slide concentric
to spindle centreline).
In Relative mode (D), the
zero can be set at any
position.
Absolute
Relative
