Konica Minolta BIZHUB PRO C6500 Replacement Instructions

2
bizhub PRO C6500/bizhub PRO C6500e
2-14 bizhub PRO C6500 / bizhub PRO C6500e
10 Remove the bearing.
11 Remove the C-clip 1 and remove the pick-up roller.
– When installing the pick-up roller, be sure that the arrow mark 1 is
facing toward the C-clip 1.
12 Remove the C-clip 2 and remove the paper feed roller.
– When installing the paper feed roller, be sure that the arrow mark 2
is facing toward the C-clip.
13 Remove the paper feed roller rubber from the paper feed roller.
– When installing the paper feed roller rubber, be sure that the
painted mark is facing toward the arrow mark 2.
Reinstalling the pick-up roller/paper feed roller rubber
% Reinstall the above parts following the removal steps in reverse.

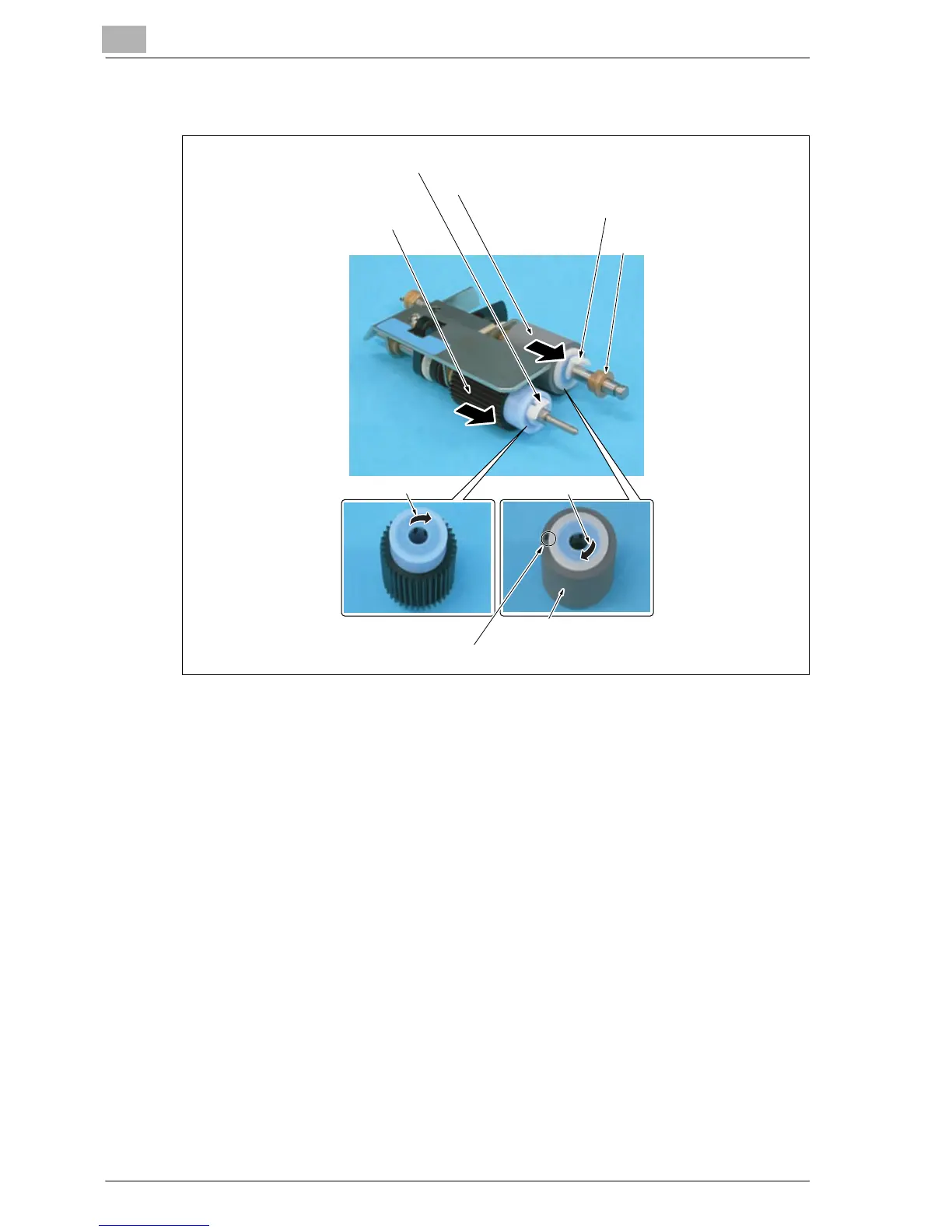

bearing
C-clip 2
paper feed roller
C-clip 1
pick-up roller
arrow mark 1 arrow mark 2
paper feed roller rubber
painted mark
