Konica Minolta SD-511 - Attach Rails; Connect Components and Attach Tray Cover

E-4

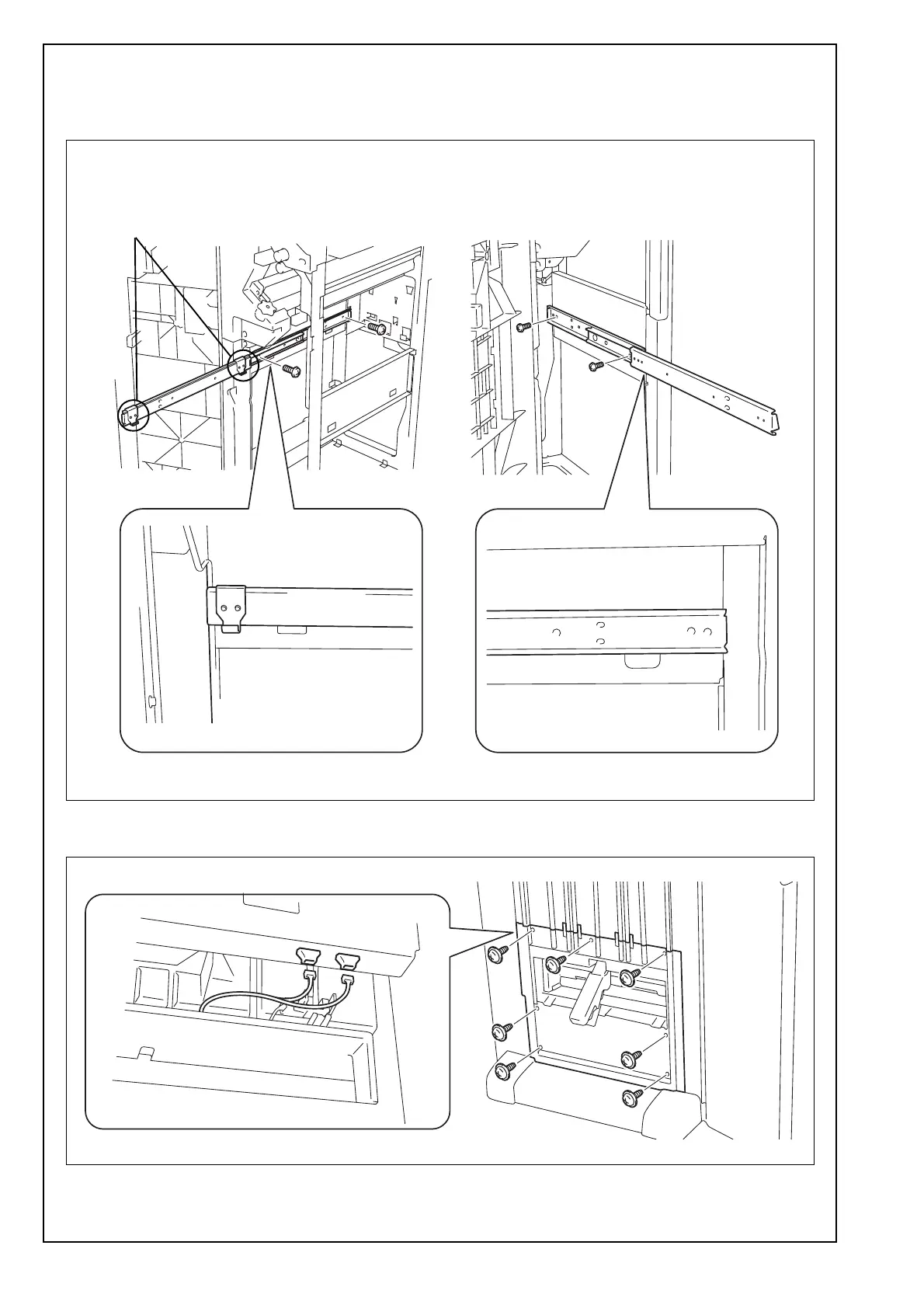

14. Attach the supplied left and right rails. (two supplied screws each)
Note:
• Align the end of the rail with the front end of the plate of the finisher.
• Put the rail along downward to screw.
15. Plug in the two connectors and attach the exit tray cover to the finisher.
(Seven screws removed in step 12)
< Right >< Left >
A3ERIXC016DA
With hooks
A3ERIXC016DA
A3ERIXC018DA
