Konica Minolta SD-511 - Mount Saddle Unit to Right Rail; Secure Saddle Unit and Connect Pantograph

E-6

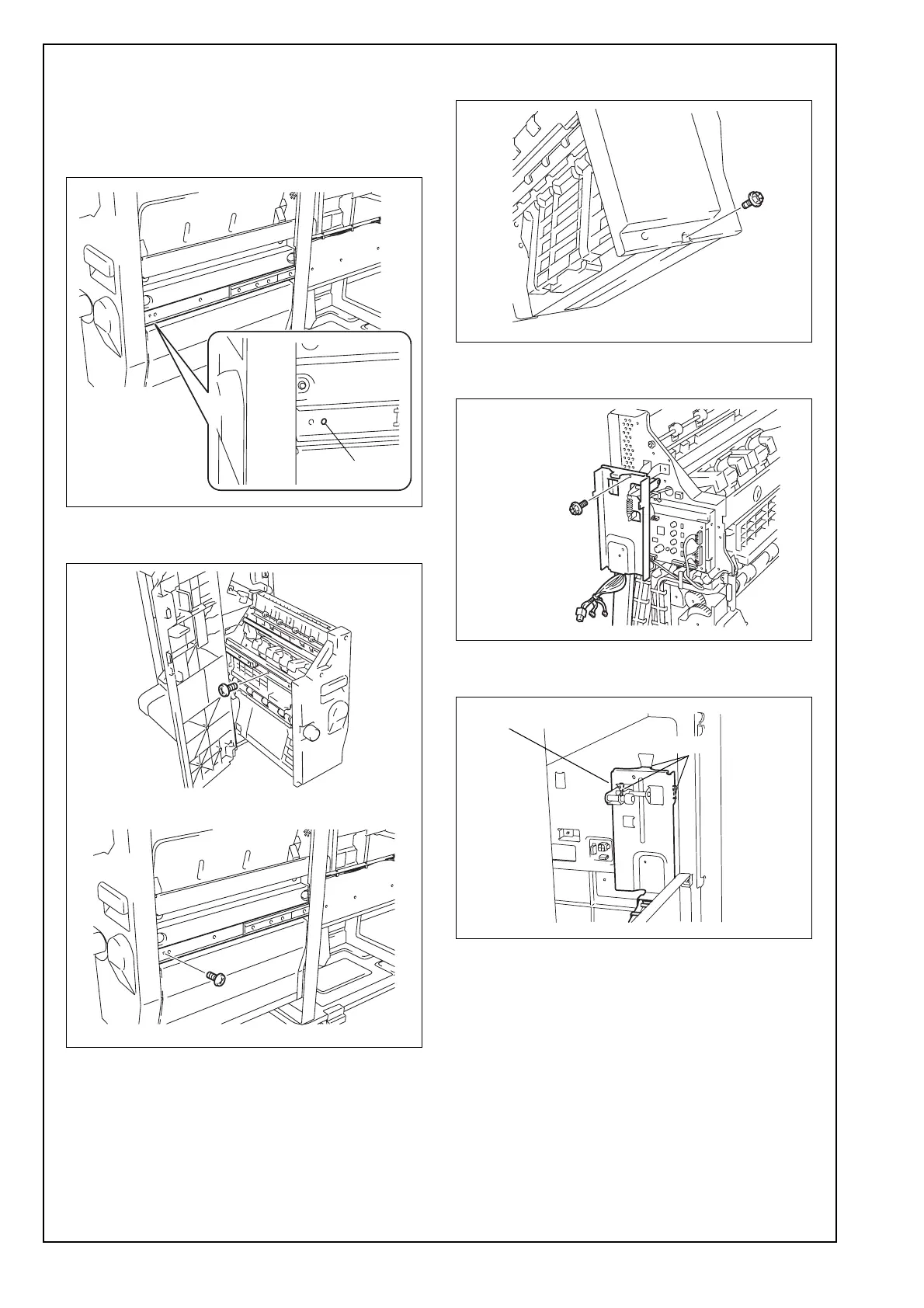

18. Pull the right rail out completely and fit the boss
of the saddle unit into the positioning hole on the
rail.
Caution:
Be careful not to hurt yourself while pulling the rail
out.
19. Attach the saddle unit to the rails. (one supplied
screw each for left and right)
20. Remove the screw shown in the illustration from
the front of the saddle unit.
21. Remove the screw shown in the illustration from
the back of the saddle unit.
22. Insert the three pantograph hooks of the saddle
unit into the holes on the rear inside the finisher.
A3ERIXC022DA
Boss
A3ERIXC023DA
A3ERIXC024DA
A3ERIXC019DA
A3ERIXC020DA
A3ERIXC025DA
Hook
Pantograph
