SAFETY NOTES
SETUP /
OPERATION INSTRUCTIONS
KÖNIG & MEYER GmbH & Co. KG
Kiesweg 2, 97877 Wertheim, www.k-m.de
16312-000-55 Rev.03 03-80-329-00 2/19
- Observe the local installation regulations
- (they may deviate from the examples
- presented in Section 2 here).
- Only mount to a suitable wall with the
- corresponding mounting materials
- (See Section 2 Wall Installation).
- Walls that are considered to be unsuitable
- are those that are too weak or those with
- electrical and water conduits.
- In case of doubt, please consult a qualified
- technician.
- Routinely check to ensure that the installation
- is stable.
- A damaged product may not be used until it
- has been restored to working condition by a
- qualified technician.

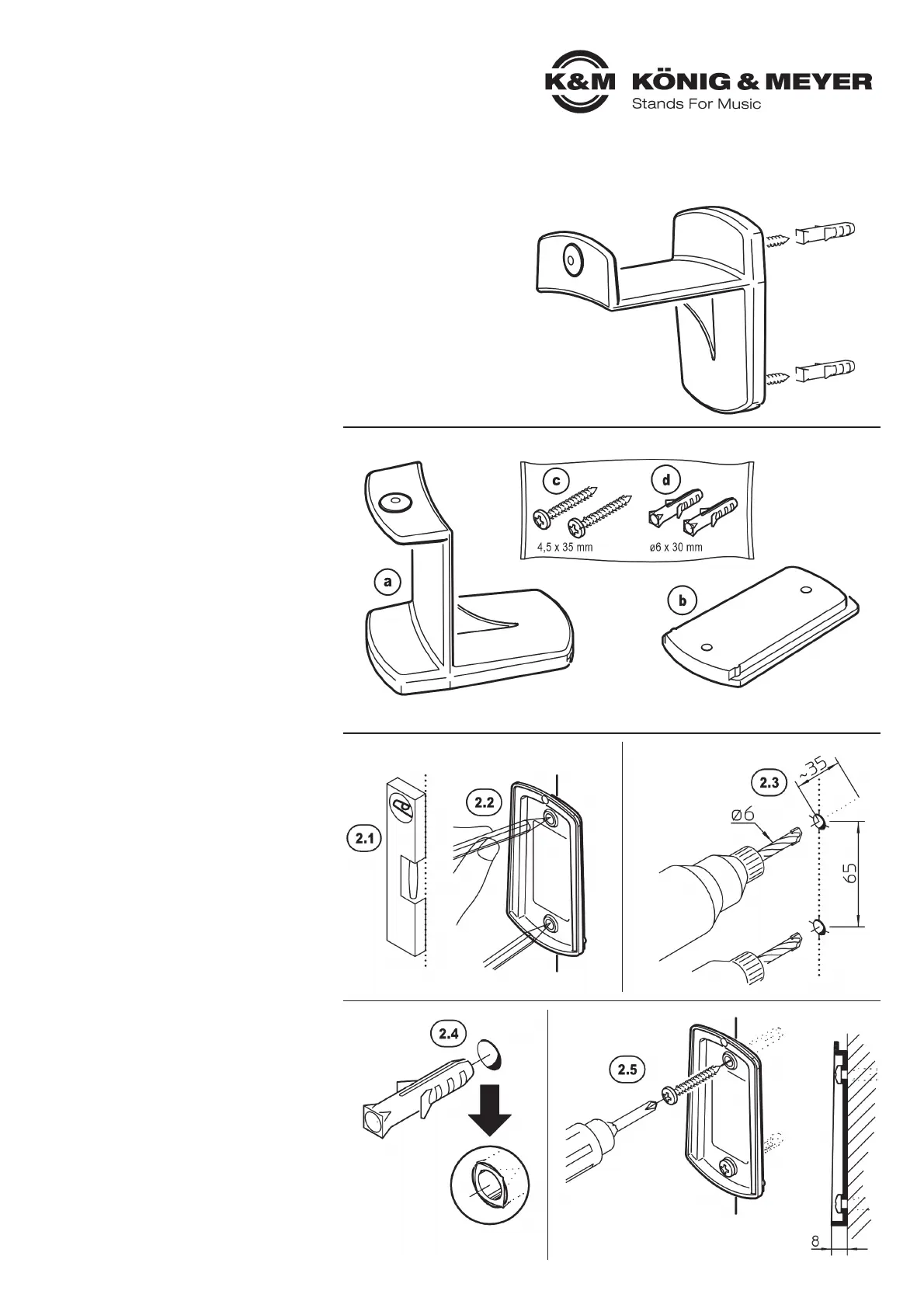

1. COMPONENTS
Please perform a visual inspection to ensure
that all parts and components are accounted for
and the product is in working order.
a. Headphone holder
b. Wall plate
c. Phillips screws 4.5 x 35 mm
d. Plastic anchors ø 6 mm
2. WALL INSTALLATION
- Determine the type of wall installation
- The included screws c and anchors d can
- be used with cement, solid brick, perforated
- brick, aerated concrete as well as lightweight
- construction walls.
- In the case of wood, only use screws c.
2.1 Place the wall plate vertically
2.2 Mark your drill holes
2.3 Drill the anchor holes:
2.3 ø 6 mm, 35 mm deep - 2x
2.4 Blowout the drill holes and set the anchors
2.5 Then install the wall plate b with both
2.5 screws c.
16312 Headphone
wall holder
- The lightweight under the K&M Headphone wall holders
- Completely made of durable plastic
- Functional and attractive design
- Two-part design with a wall plate for mounting
- and housing to cover the screws
- (included in the delivery)
- Depth 70 mm
Thank you for choosing this product. This instruction manual informs you
about the important steps to set up and handle the product. We recommend
to keep the manual in a separate place for a possible later use.
