- During maintenance work, watch out for possible injuries
- Inspect bolted assemblies regularly
- For cleaning it is best to use a damp cloth an a mild,
- nonabrasive detergent.

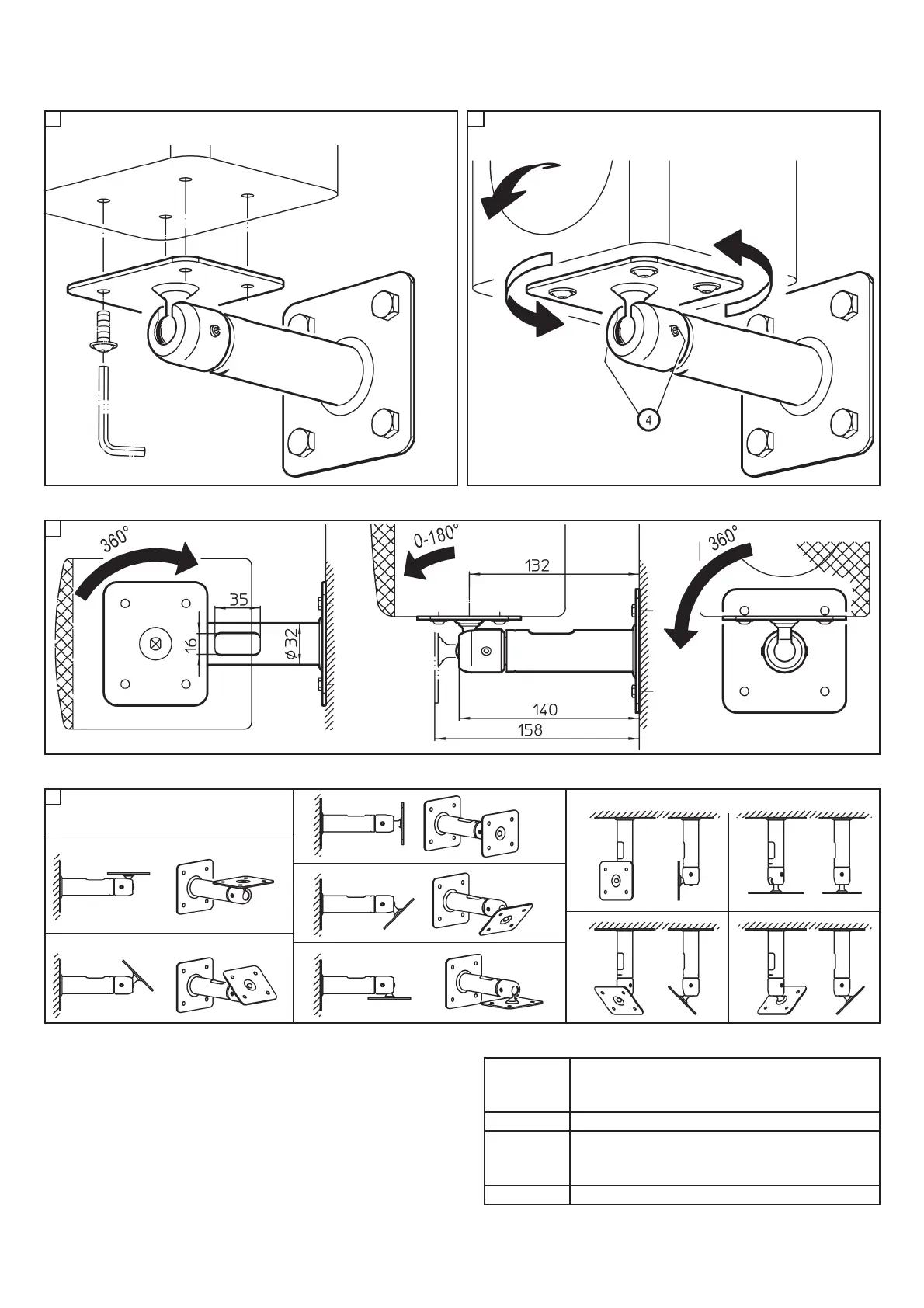

Place speaker on to the speaker plate and use four screws to screw it on
tightly. ATTENTION: If necessary, two people should perform this task
F
H
CHECKING, MAINTENANCE, CLEANING
F - Speaker sits loosely on speaker plate
R - Check screws, if needed tighten screws
R - Check the threaded inserts of the loudspeakers
F - The loudspeaker does not stay in its position
R - Check the weight of the loudspeaker (max. 10 kg)
R - Tighten threaded pins 4
FAULT FINDING (F) and REPAIR (R)
TECHNISCHE DATEN
Material
Tubes, Plates - steel, black powder coated
swivel joint - zinc die-cast, black powder coated
Gewindestifte, Klemmbolzen - Stahl, verzinkt
Load Speaker, max. 10 kg
Dimensions
Speaker plate: 80 x 95 mm,
Wall plate: 95 x 95 mm,
Depth: 158 mm
Weight 0.7 kg
KÖNIG & MEYER GmbH & Co. KG
Kiesweg 2, 97877 Wertheim, www.k-m.de
24185-017-55 Rev.04 03-80-728-00 5/17
SPEAKER MOUNTING
DIMENSIONS & SETTINGS
THE MOUNT IN DAY TO DAY USE - APPLICATION EXAMPLES
Variable adjustments both for angle and direction.
a. Hold the loudspeaker, b. loosen both threaded pins 4 somewhat,
c. Place the loudspeaker in the desired position, d. Re-tighten both threaded pins.
G
SPEAKER ADJUSTING
- vertical rotation:
Used as a ceiling mount
1. Horizontal position upwards
3. Vertical
1. Verti-
1. cal
2. Horizon-
2. tal
3.
Angled
4.
Angled,
rotated
4. Angled
4. downwards
5. Horizontal position
5. downwards
2. Angled upwards
- angle: - horizontal rotation:
I
Used as a wall mount
