26720 Monitor stand
- Height-adjustable
- Stable and solid
- Cable entry in pipe possible
- Load capacity 35 kg max.
- Weight: 4.5 kg

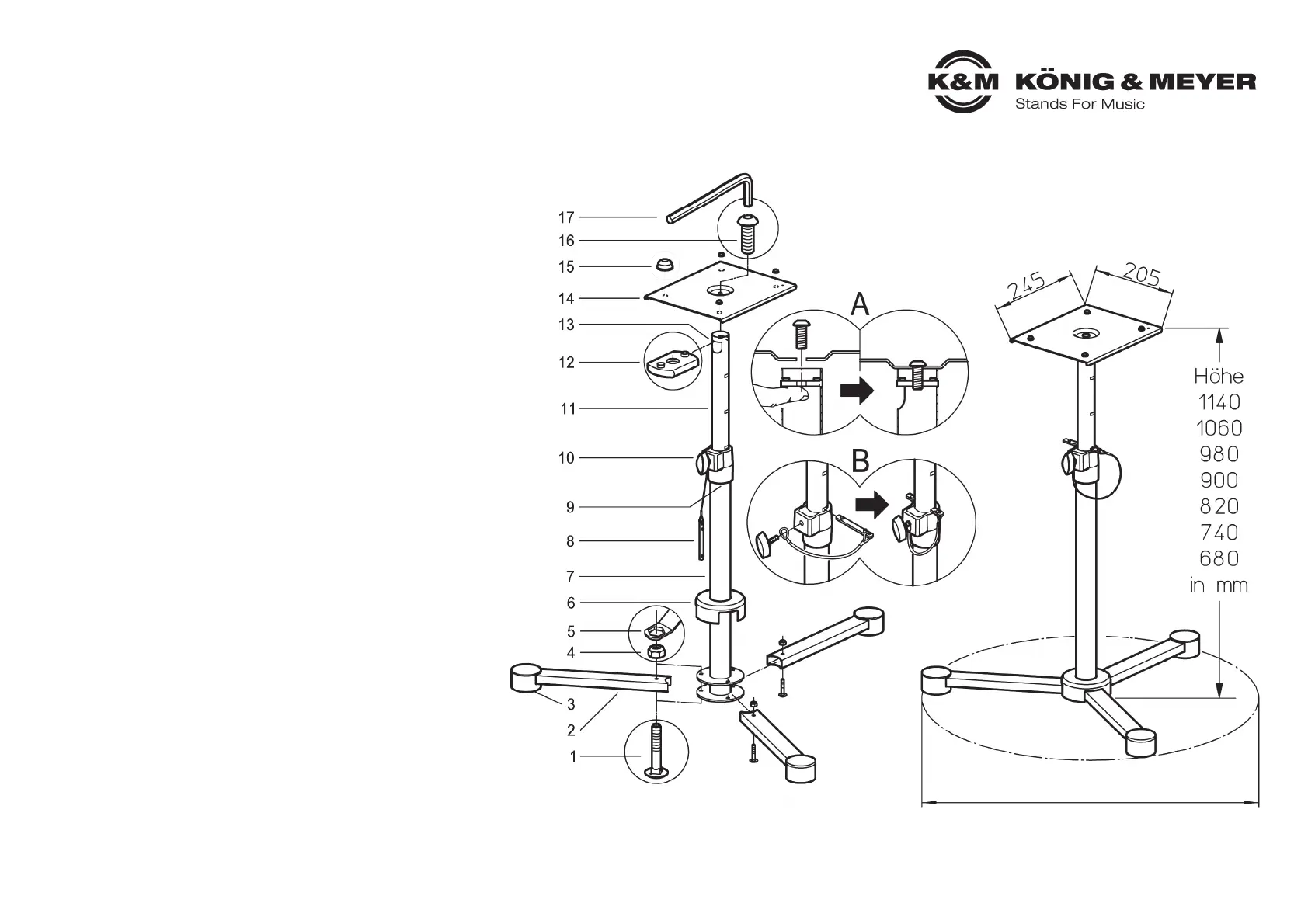

Installation Instructions
STAND
- Screw foot tubes 2 using M6 x 35 mm lock bolts 1 and M6 lock nuts 4 to the
- base tube 7 using a wrench 5.
- After installing all foot tubes, slide the cover cap 6 over it.
MONITOR PLATE A
- Insert the threaded lug 12 into the slot 13 of the extension tube 11 and
- hold it in position with your finger.
- Place the plate 14 on the base and tighten the round-head screw M8 x 20 mm 16
- from above through the hole and screw into the threaded bracket 12;
- tighten firmly with Allen key 17.
- Glue the rubber studs 15 to the plate.
Settings & Functions
ADJUST THE HEIGHT B
- Before moving the extension tube 11, first tighten the clamping screw 10 and
- loosen the safety rail 8 connected to it by a cord.
- Push the extension tube to the desired height.
- Guide safety rail 8 with top slups up to the stop through the corresponding slot
- in the pull-out tube and then lower it in a controlled manner until the safety rail
- bears on both sides of the tension clamp 9.
- Retighten the clamping screw 10 firmly.
Safety Instructions
ATTENTION!
The max. permissible load 35 kg refers to the load capacity of the column.
However, for safety reasons, the following points must be observed:
a. Do not load the stand off-centre.
b. Pay attention to tight screw connections.
c. The fuse rail 8 must always be installed.
d. Extending or retracting the extension tube
d. - for one person: remove the box from the monitor panel beforehand
d. - with two suitable persons: Box can remain on the monitor panel,
d. when the first person holds the loaded extension tube firmly and
d. securely and the second person operates the safety rail and clamping screw
e. Uncontrolled loosening of the safety rail and the clamping screw
e. under load is not permitted
f. Stand is only suitable for level surfaces
g. For indoor use only
TIPP DANGER
is caused by unauthorized external influences on the stand or monitor.
That includes: Impacts caused by public traffic, wind, vibrations, etc.
These effects must be kept away or eliminated by appropriate measures.
KÖNIG & MEYER GmbH & Co. KG
Kiesweg 2, 97877 Wertheim, www.k-m.de
26720-000-55 Rev.19 03-80-580-00 12/19
Footprint diameter 700 mm
