A. COMPONENTS
5.1 Align mounting bracket
5.1 vertically
5.2 Mark the drill holes.
5.4 WOODEN BEAM
- Wood screw 4,5 x 35 mm 3.a
drill,
countersink,
blow out,
attach bracket,
screw in wood screws
5.5 PERFORATED BRICKS,
4.5 CONCRETE
- Plastic anchor 6 x 30 mm 3.b
- with wood screw 4,5 x 35 mm 3.a
drill, countersink, blow out,
set the anchor,
attach bracket, screw in wood
screws
5.3 Pre-drilling
5.3 e.g.: ø 6 mm
5.3 Expansion anchor
5.3 ø 3 mm Wood
5.3 screw
D. DISINFECTANT BOTTLEC. PREPARING HOLDER
TECHNICAL DATA
Please read these assembly instructions carefully!
DIMENSIONS
- Dimensions: W x D x H: 154 x 155-193 x 90 mm
- Bottle size: width x depth: max. ø/
■102 mm
- Clamping range: depth 65 - 102 mm
- Drip cup: ø 70 x 47 mm
MATERIAL
- Holder, bracket: Steel
- Drip cup: Polyamide
- Knurled knobs: Polyamide, steel, zinc
- Threads: Steel, brass, zinc
SURFACE 80370-000-55 black
80370-000-76 pure white
powder-coated
WEIGHT 0.52 kg
SAFETY INSTRUCTIONS
The safety of the stand depends on the:
MOUNTING
Ensure that all screw connection are tight.
WALL CONDITION
Only use the product on suitable walls, i.e. mount only on
load-bearing walls. Weak walls are unsuited as well as
wall areas where running wires and pipes are hidden
behind. The screws and dowels 2 supplied are not
convenient for all walls. In case of any doubt consult a
qualified expert.
LOAD
Only for disinfectant bottles with suitable size;
see above TECHNICAL DATA.
SURROUNDINGS
Please avoid respectively prevent negative
external influences (knocks, dragging, vibrations,
wind, humidity etc.)
MAINTENANCE
Regularly clean the base
INSTALLATION INSTRUCTIONS

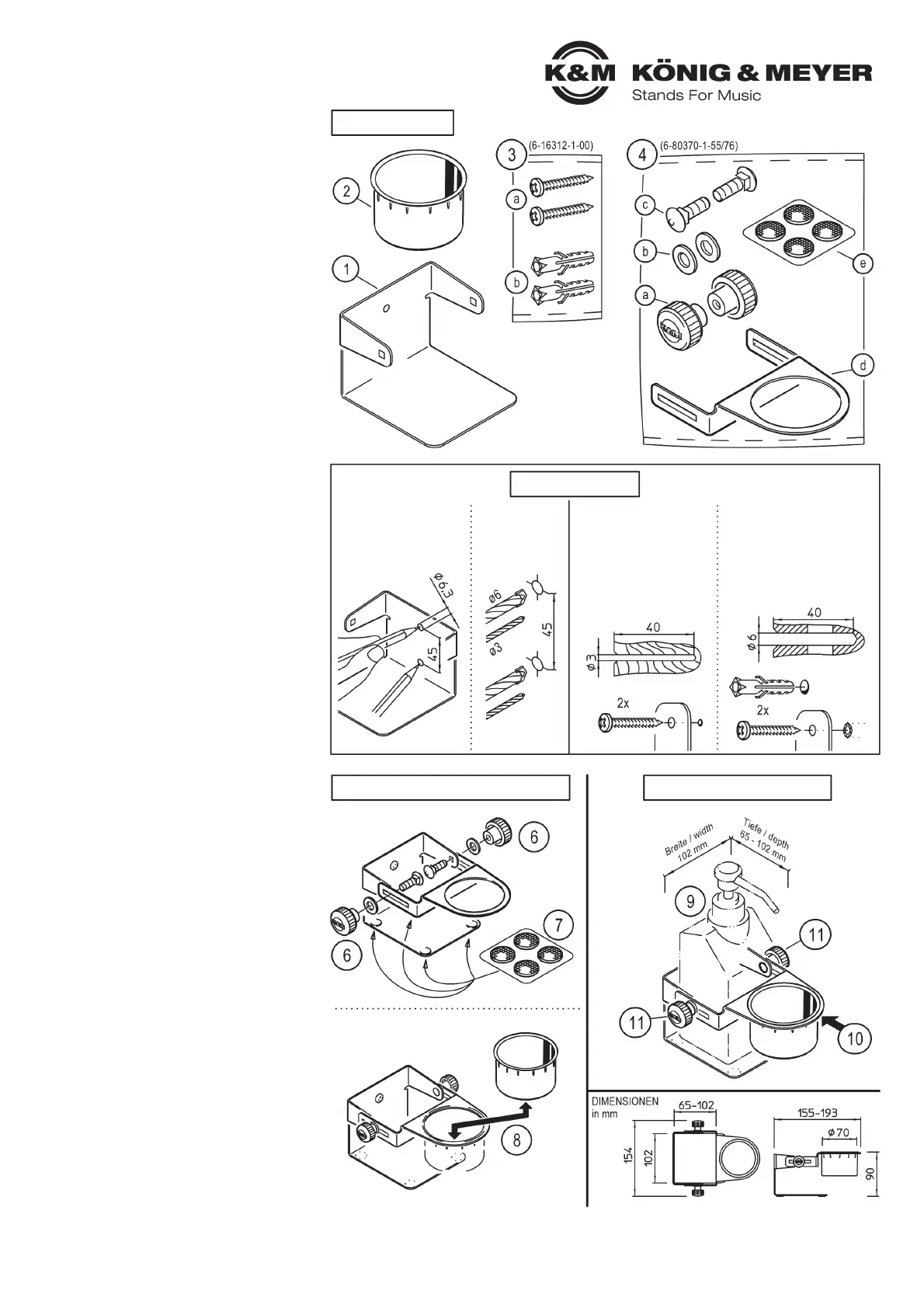

A. COMPONENTS
1 Bottle holder
2 Drip cup
3 Accessories bag (6-16312-1-00)
3.a Wood screw 4,5 x 35 mm (2x)
3.b Anchor (plastic) ø 6 x 30 mm (2x)
4 Accessories bag (6-80370-1-55/76)
4.a Knurled knob M5 (2x)
4.b Washer ø 5,3 mm (2x)
4.c Carriage bolt M5 x 12 mm (2x)
4.d Holding bracket
4.e Rubber pads ø 13 mm (4x)
B. WALL MOUNTING
5 see fig. 5.1 - 5.5
C. PREPARING DISINFECTANT HOLDER
6 Open the accessories bag 4 and attach the bracket 4.d
6 to the bottle holder 1:
6 - Slide the bracket 4.d from outside over the
6 - mounting bracket,
6 - insert the carriage bolts 4.c from the inside,
6 - thrust washers 4.b over the threads,
6 - screw on knurled knobs 4.a.
7 Glue the rubber pads (4.e) to the rear side of the base
7 (also recommended for wall mounting).
8 Press the Drip cup 2 from above into the opening.
8 As necessary, it can be removed for cleaning.
D. DISINFECTANT BOTTLE (not included in delivery)
19 Place the disinfectant bottle in the bottle holder,
10 clamp the bottle by means of the bracket 4.d,
11 tighten both knurled knobs 4.a.
INFORMATION
NOTE: The holder for disinfectant is not a
NOTE: medically certified product.
- Negative effects of the disinfectant on the products
- (surfaces, material) are not known to us.
- Nevertheless, we recommend to always remove possible
- residues of the disinfectant in order to avoid possible
- damage and to enjoy the product as long as possible.
- For cleaning purposes use a slightly damp cloth and
- a non-abrasive cleaning agent.
Disinfectant is not included in the scope of delivery.
80370 Holder for disinfectant
KÖNIG & MEYER GmbH & Co. KG
Kiesweg 2, 97877 Wertheim, www.k-m.de
80370-000-55/76 Rev.3a 03-79-922-00 6/20
