21411 Overhead microphone stand
- For special stage and studio performances
- Equally suited for home, object and public areas
- Extension tube combination with additional locking ring
- Expansive extension area for a wide array of uses: Stand up to 2.4 m variable extension
- Retrofit with Boom Arm 21231
- Height min. 1430 / max. 2380 mm, Base Circumference ø 1240 mm, 1/2"- Connector Thread, Weight: 5 kg
SAFETY NOTES
- Maximum centric load 12 kg
- Check for damage to the stand prior to and after use.
- Damaged stands may not be used.
- Weight distribution must not allow the stand to list to one side
- The floor must be load bearing and even.
- Keep unauthorized personnel away from the stand. Protect against the risk of tripping or
- the stand falling over.
- Maintain safety when installing the system:
- - Tighten screws - but not too tight.
- - The maximum stand stability is reached when the base struts of the stand are level.
- - Be careful when retracting the extension tube the clamp screws of the locking bracket and
--locking ring, so that the tube glides downward in a slow and deliberate manner and does not snap.
- Careful and attentive handling is required when adjusting the stand - due to the possibility of
- pinching or wedging your hand.
SET UP INSTRUCTIONS
Thank you for choosing this product. The instructions provide directions to all of the important set up and handling steps. We
recommend you keep these instructions for future reference.
Setting up the 21411 Overhead Microphone Stand is very easy.
It comes pre-assembled and only needs to be placed in the proper position.

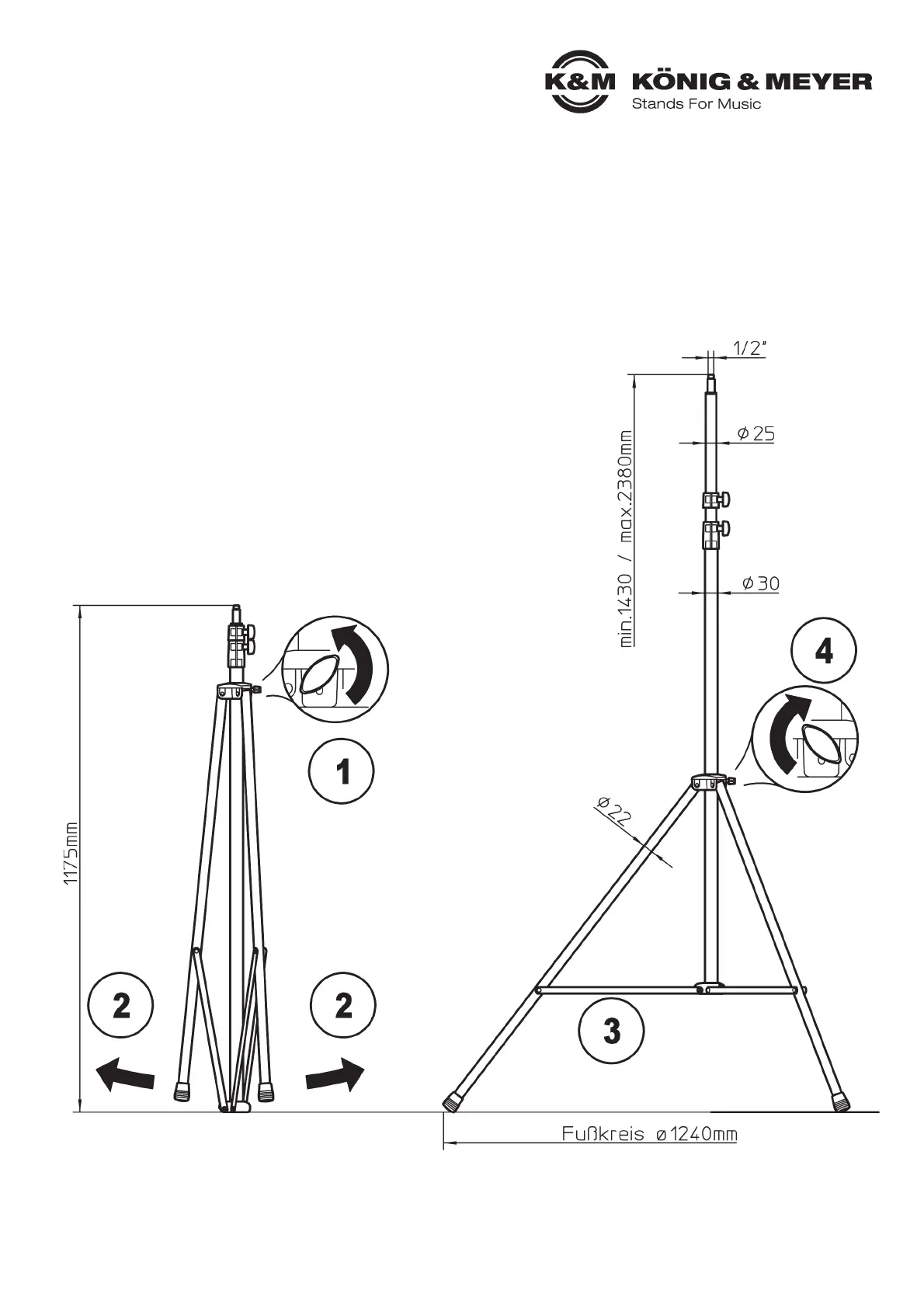

1 Loosen the clamping screw of the triangular clamp/bracket a bit.
2 Expand the legs until...
3 ...the connecting struts are horizontal.
4 Re-tighten the lower clamping screw. NOTE: Manual strength in sufficient; do not overrtighten - this will negatively affect the
components - and should be avoided.
