53

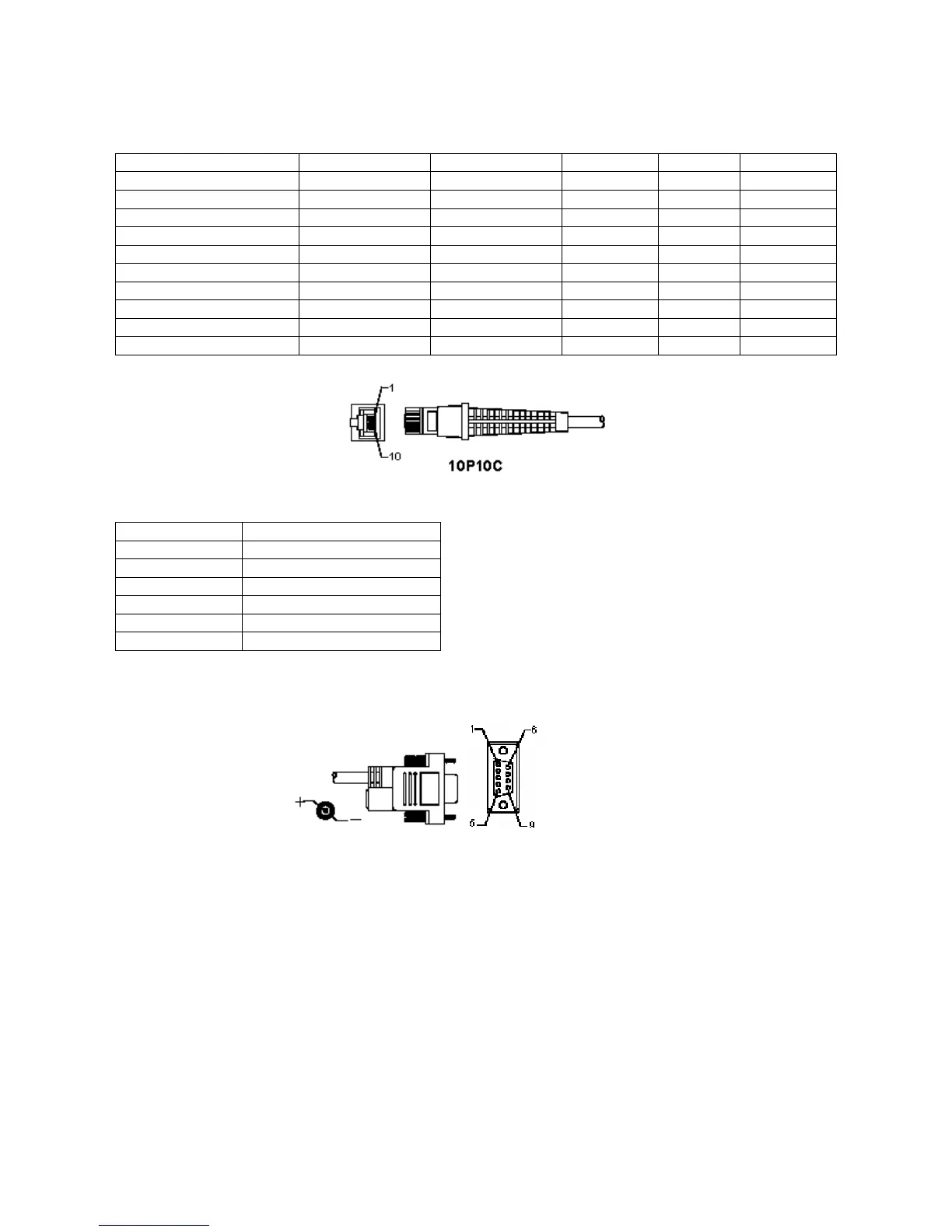

PIN ASSIGNMENT
10 Pin Modular Plug
RJ-45 Male 10P10C TTL WAND KB RS-232 KB USB
1 X X x X
2 x X X X
3 PWR-CTL x X x
4 GND GND GND GND GND
5 GOOD-READ GOOD-READ PC-DATA X PC-DATA
6 DATA DATA PC-CLK X PC-CLK
7 VCC VCC VCC VCC VCC
8 SW-DET x KB-CLK X X
9 S.O.S. X KB-DATA x X
10 x x x RX x
RS-232 Signal Output
Function DB9F+DC (or without DC)
GND 5
CTS 7
RTS 8
RX 3
TX 2
VCC+5V 9
Note:
For PC applications, a cable with a DC power jack is required to accept an external power input.
DB9F+DC –Jack
Inner (+)
