54

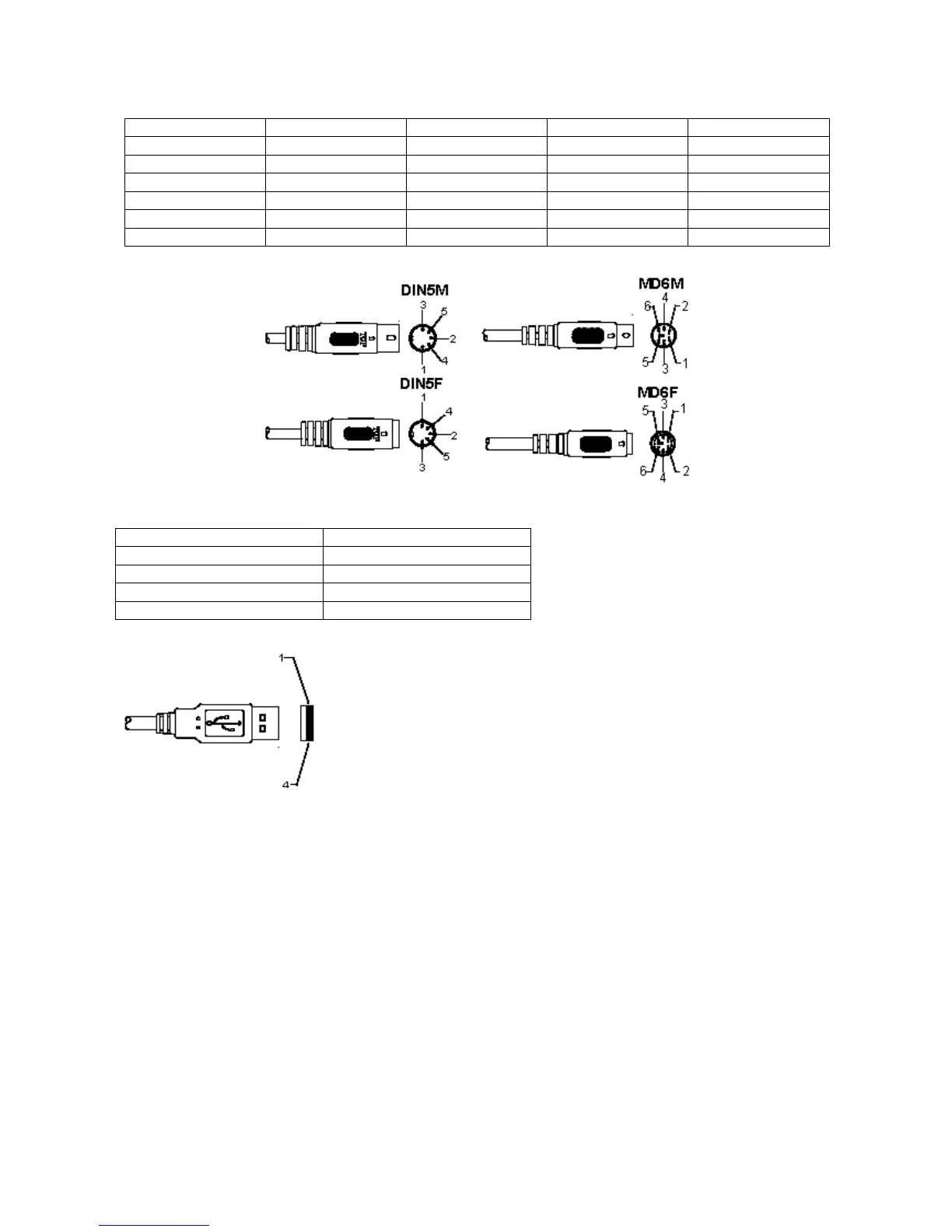

Keyboard Signal Output
Function Din5F Din5M Mini-Din6M Mini-Din6F
GND 4 4 3 3
PC_Data --- 2 1 ---
PC_CLK --- 1 5 ---
VCC+5V 5 5 4 4
KB_CLK 1 --- --- 5
KB_Data 2 --- --- 1
USB Signal Output
FUNCTION USB-A
GND 4
VCC 1
D+ 3
D- 2
USB PLUG
