Feed 1x outer cable
1.
through its matching hole
in the base.
Loop the cable fully
2.
around its opposite
shuttle screw. The cable
should go a full 180°
around the screw.
Pull firmly enough to take
3.
up
all
the slack in the
cable but
not
tight like a
guitar string. The cable
should be straight all the
way from the base to the
top plate with no bends
or kinks.
Make sure the long
4.
roundhead screw has
been pulled fully into its
hole.
Make sure the slack is still
5.
taken up and screw the
shuttle screw down tightly
onto the outer cable.

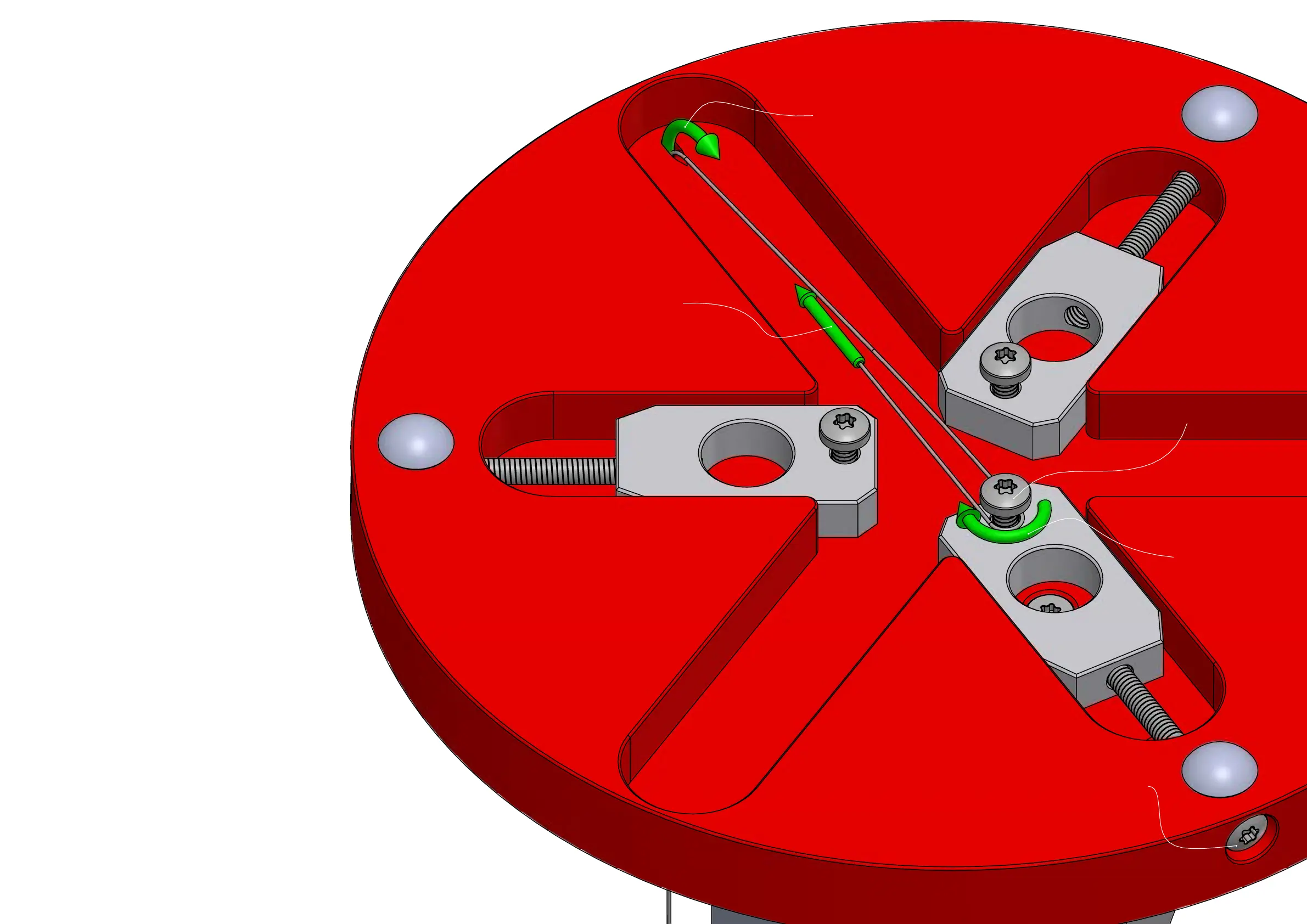

4. Make sure screw is fully
inside pocket
2. Loop around
screw
1.Feed through hole
3. Take up slack
5. Tighten screw
Repeat for the other
two outer cables. When
they are all fitted you
can tuck the excess
lengths underneath.
