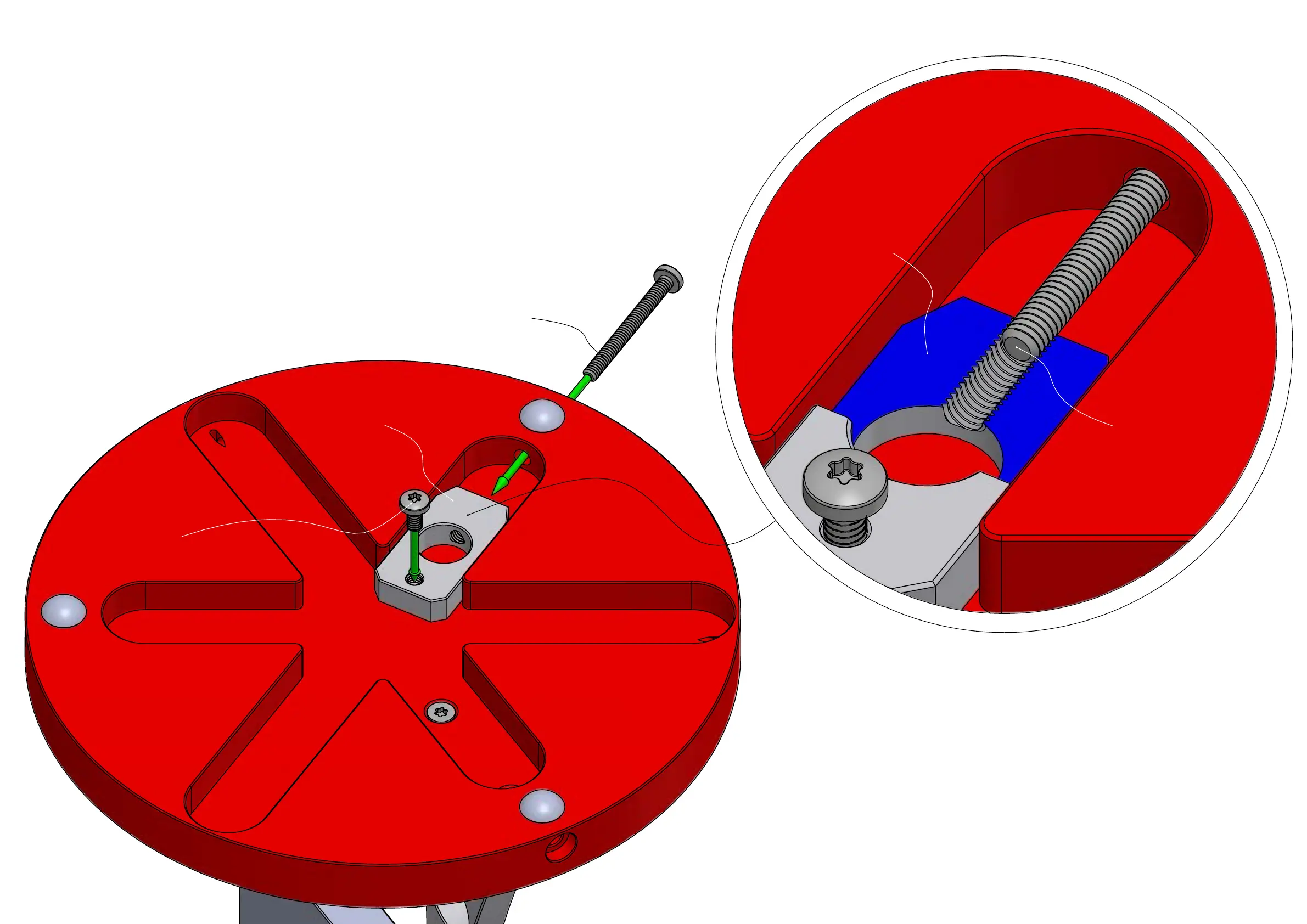

1. Fit shuttle
3. Fit short roundhead screw
2. Fit long roundhead screw
Fit 1x shuttle into a short slot in the base.
1.
Fit 1x long roundhead screw through the hole in the edge
2.
of the base and screw it into the shuttle a couple of turns.
Screw 1x short roundhead screw into the shuttle a couple of
3.
turns.
Repeat for the other two shuttles.
Couple of
turns
Shuttle shown
cutaway
for clarity
Tensegrity cable grub screws assembly instructions page 9 of 14
Copyright Kontax Engineering Ltd 9/1/23
