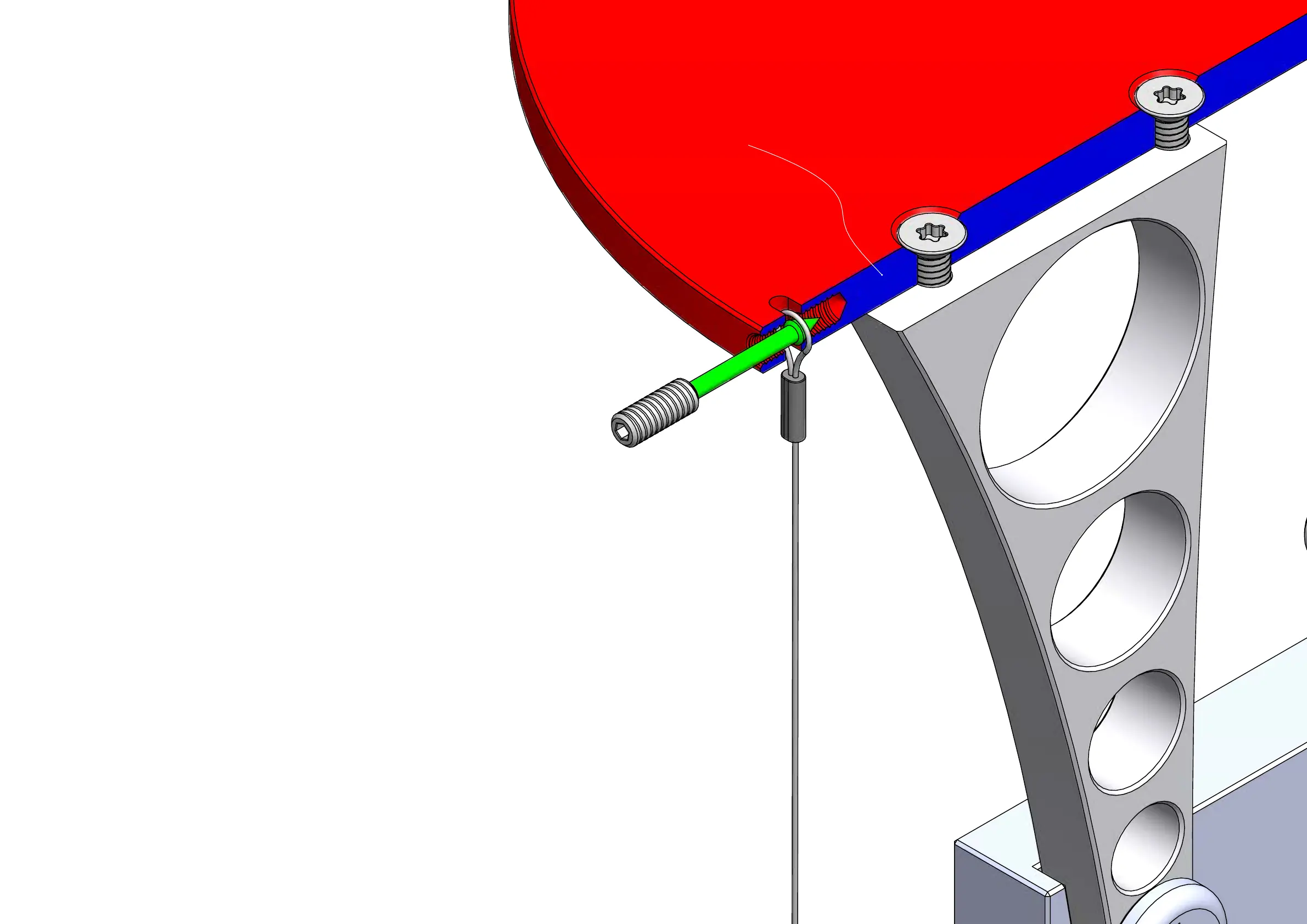

Fit 1x outer cable loop into one of the slots
in the top plate. The loop should enter
from the underside of the plate.
Using the hex driver screw 1x grub screw
into the plate, going through the loop on
the cable.
The screw should pass cleanly through the
loop on the end of the cable and screw
down flush with the edge of the plate. If it
feels tight as you screw it in do not force
it. Back the screw off, reposition the loop
and try again.
Repeat for the other two outer cables.
Plate shown cutaway for clarity
Tensegrity cable grub screws assembly instructions page 8 of 14
Copyright Kontax Engineering Ltd 9/1/23
