Service and Installation Manual

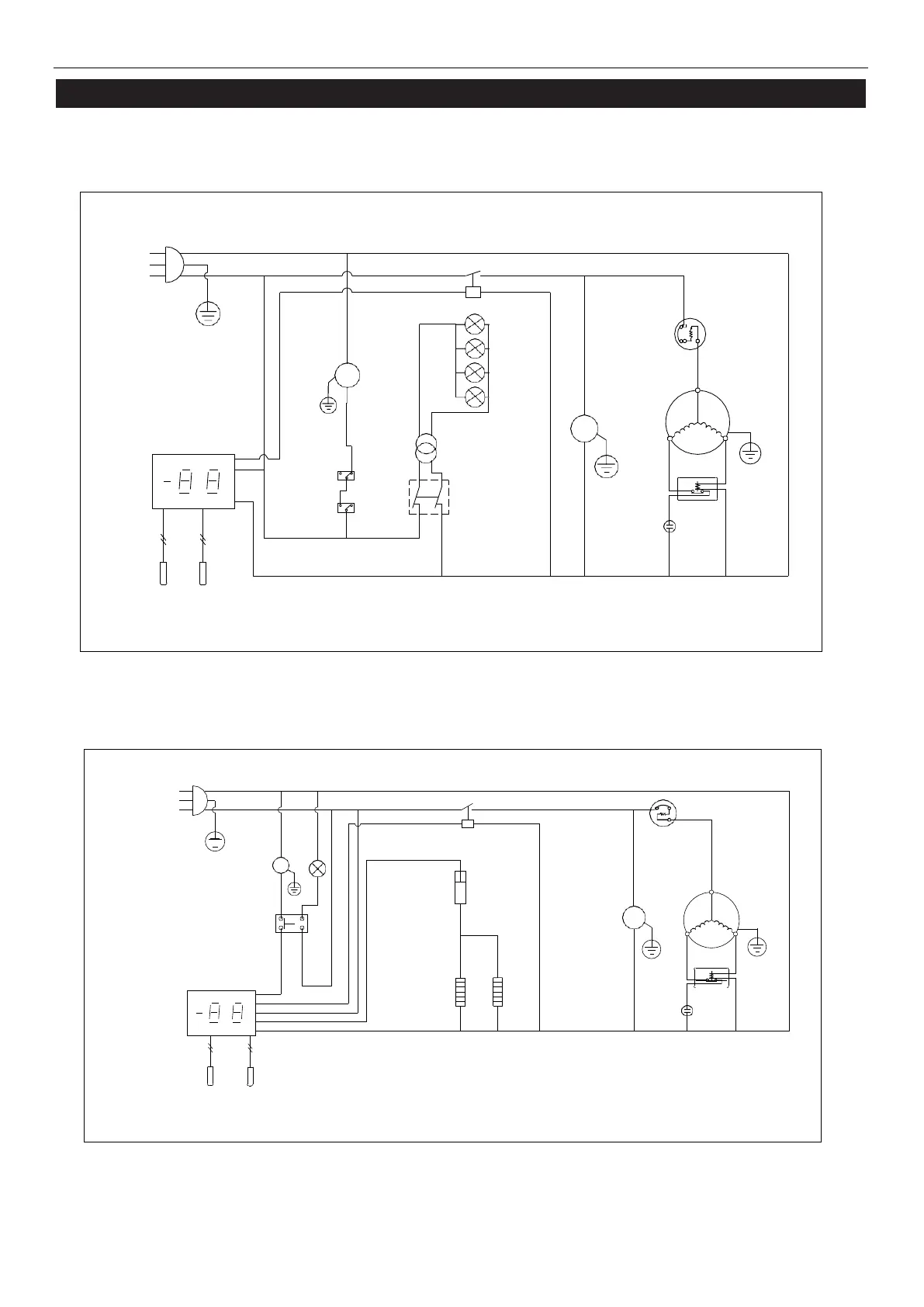

ELECTRICAL DIAGRAM
11
MODEL：KB54RG
MODEL：KB27F
N
L
PLUG
CONTACTOR
OVERLOAD
PROTECTOR
LAMP
M
LAMP
CONDENSEN
FAN
COMPRESSOR
THERMOSTAT DISPLAY
M
CURRENT
RELAY
LAMP SWITCH
STARTING
CAPACITOR
ROOM
EVAP
DOOR SWITCH
SENSOR
N
L
PLUG
OVERLOAD
PROTECTOR
CONTACTOR
M
LAMP
THERMAL
CUT-OFF
CONDENSEN FAN
COMPRESSOR
M
DOOR
SWITCH
THERMOSTAT DISPLAY
CURRENT
RELAY
STARTING
CAPACITOR
ROOM
EVAP
SENSOR
EVAP
FAN
EVAPORATOR
FAN
LED
DRIVER
DEFROST
HEATER
PIPE
HEATER
