Koolen Eco Smart - Technical Parameters

- READ ALL INSTRUCTIONS BEFORE USING.
- Do NOT open and repair the unit by any unqualified person.
- To protect against electric shock, keep the unit dry. Do not immerse
in water or any other liquid.
- Unplug from outlet while filling water, before cleaning, maintaining or
moving the unit.
- Unplug from outlet when not in use.
- Do not insert foreign objects into the grid of air vent (intake or outlet)
during operation.
- Do not cover the appliance with paper, cardboard, plastic, metal foil,
or any other flammable material. Otherwise, a fire may occur. Keep the
appliance away from any hot sources.
- Place the unit on a solid hot-proof horizontal surface.
- Do not use outdoors.
- Water level must be between the MIN and MAX line.
- After filling with water, do not tilt the unit and avoid moving it, which
may cause water to overflow the sides of the tank and leak. If the unit
needs to be moved a little, push on the side gently.
- Never turn the unit on its sides.
- Do not place any objects on the top of the unit. The air vent must not
be obstructed during operation.
- Do not use petrol, Dettol, etc. to clean the unit body. For slight dirt on
the body, wipe it off with a soft damp cloth. For greasy dirt, squeeze a
little toothpaste or mild detergent on a soft damp cloth, and then wipe
the dirt off.
- Keep the air vent (intake or outlet) away from obstacles.
- Do not strike or shake the unit body during operation, otherwise, it will
stop working automatically. In this case, restart the unit.
- After some time, operation, dust and dirt may occur in water tank. It
is recommended to change water and clean water tank frequently.
- Do not put the unit under wall socket.
- Empty water tank to avoid odor occurring when not in use.
- Do not use after the unit malfunctions. Send to service center for
repair.
- Do not use the unit for other than its intended use.
- Do not use the unit when the power cord is damaged. Send to service
center for repair. If the supply cord is damaged, it must be replaced
by a special cord or assembly available from the manufacturer or its
service agent.
4
5

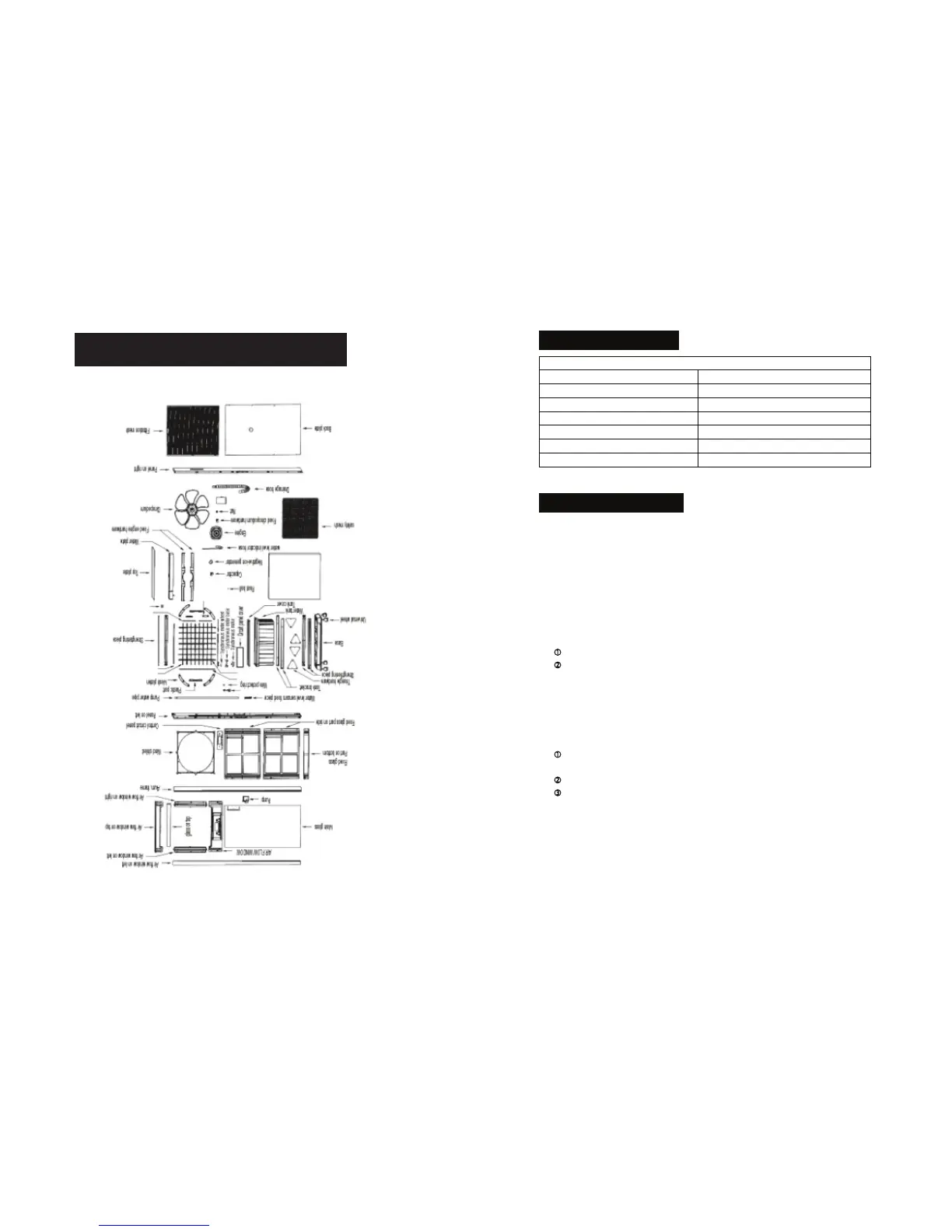

CONSTRUCTION DRAWING:
Technical Parameters:
Koolen Air Cooler High Tower
Input
220-240V ~ 50/60Hz
Air Flow Capacity
2500CBM/hour
Water Tank Capacity
20L
Wind Speed
8.6m/s
Color
Red / white silver lotus
Net Weight
28.5 KG
Measurements
600 * 440 * 1720 mm
Operation Instructions:
1.
Pull the unit outwards from the carton and place it on a solid hot -
proof horizontal
surface.
2.
Check if the accessories are complete, same as the accessories list.
3.
Place the unit on a solid hot -proof horizontal surface. Take out the casters and
caster wrench to assemble.
Note: Casters with skid are for the two front holes and casters without skid
are for the two back holes at the bottom of the unit. (shown as fig.1)
4.
Pull upwards the water tank and pul
l outwards about 10cm to the locking pin, then
add water. (shown as fig.2)
Note:

Water level must be between the MIN and MAX line. (shown as fig.3)

After some time, operation, dust and dirt may occur in water tank. It is
recommended to change water and clean water tank frequently.
5.
Only use the unit with correct AC outlet.
6.
Insert the plug pin into a wall socket and turn on the power switch which is at the
side of the unit. A small beep sound can be heard and the power indicator will be
on.
Note:

To prot
ect against electric shock, do not remove plug from wall outlet by
wet hand.

Unplug from outlet while moving the unit.

Insert the plug pin into the wall socket and make sure it is connected well.
7.
Press “HUMIDIFIER” button to improve the air damp, avoid
skin dry and spall in
winter.
Air Cooler High Tower
