1. Specifications:
Key number: 23
Keyboard switch: OEM Outemu switches
Shell material: High-quality plexiglass
4-layer profiles stored onboard
Keyboard Interface: USB Type-C
Rating: DC 5V, <100mA
1.5M detachable USB cable
Compatible with Windows XP,7,8,10, Mac OS

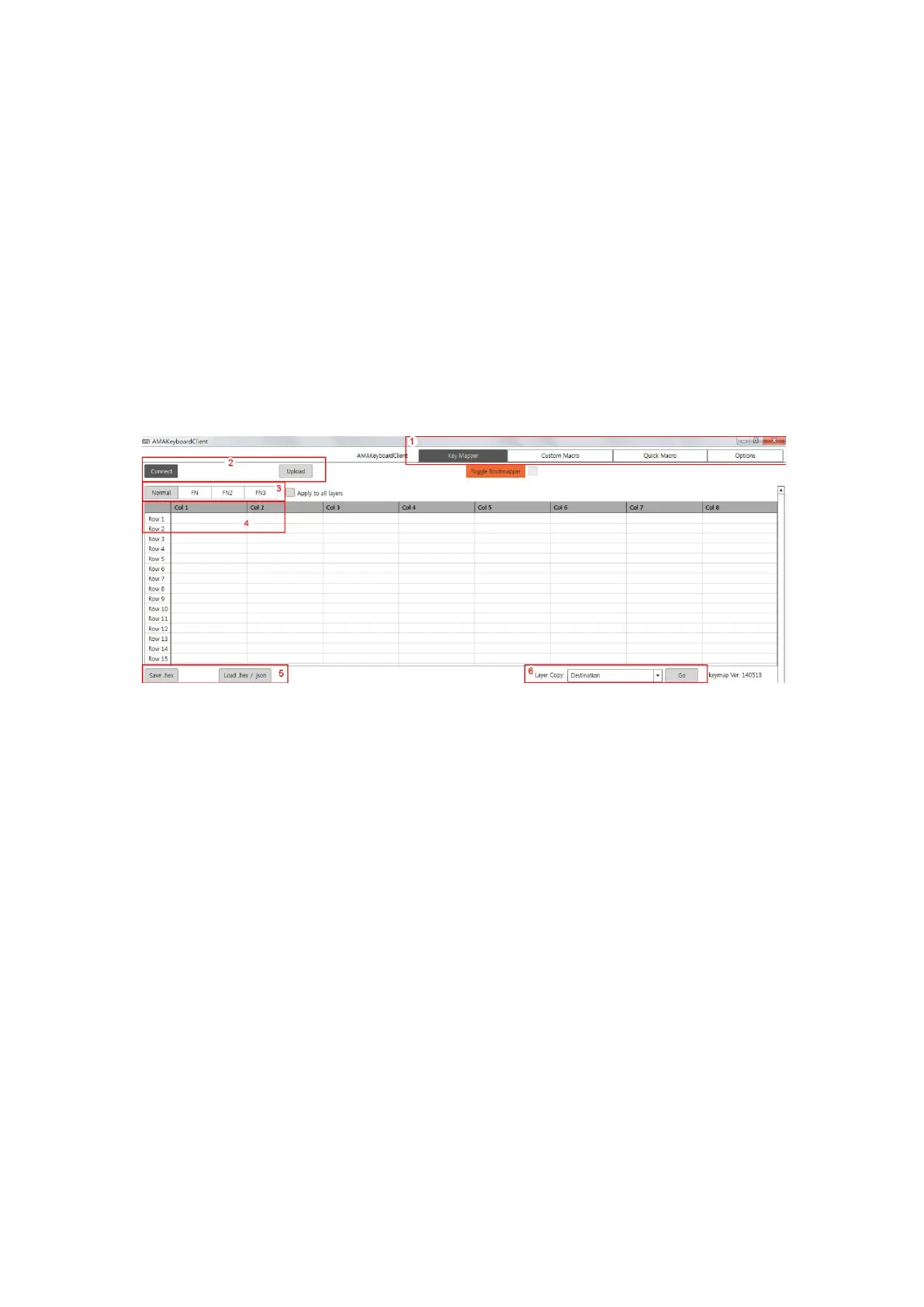

2. Software Interface Introduction
a). Entrance to 4 function modules
Key Mapper: Program each keys
Custom Macro: Edit macro string, and you can add a delay time after each character.
Quick Macro: Edit macro string, can’t add delay time
Options: Adjust backlit
b). Connect: Connect the software with keyboard
Upload: Save the configuration
c). 4-layer key configuration
Nomal: Default layer, the configuration layer used by default when connecting to the
keyboard
FN, FN2, FN3: Available 3-layer configuration, set the enable button in the lower on-screen
keyboard
d). Col: Column. Row: Row
e). Save .hex: Save the configuration as a “.hex” file
Load .hex / .json: Upload a “.hex” or “.json” file configuration
