VOORUI
M4-8 screw post is required for wall hanging screws. If you can't find this screw,
please contact Koorui customer service.
VESA Attention
VESA device can be purchased separately.
O
Refer to the user guide provided with your VESA device for details.
O
O
Install your wall mount on a solid wall perpendicular to the floor. Before
attaching the wall mount to surfaces other than plaster board, please contact
your nearest dealer for additional information. If you install the product on a
slanted wall, it may fall and result in severe personal injury.
O
Do not mount the product at more than 15 degree tilt.

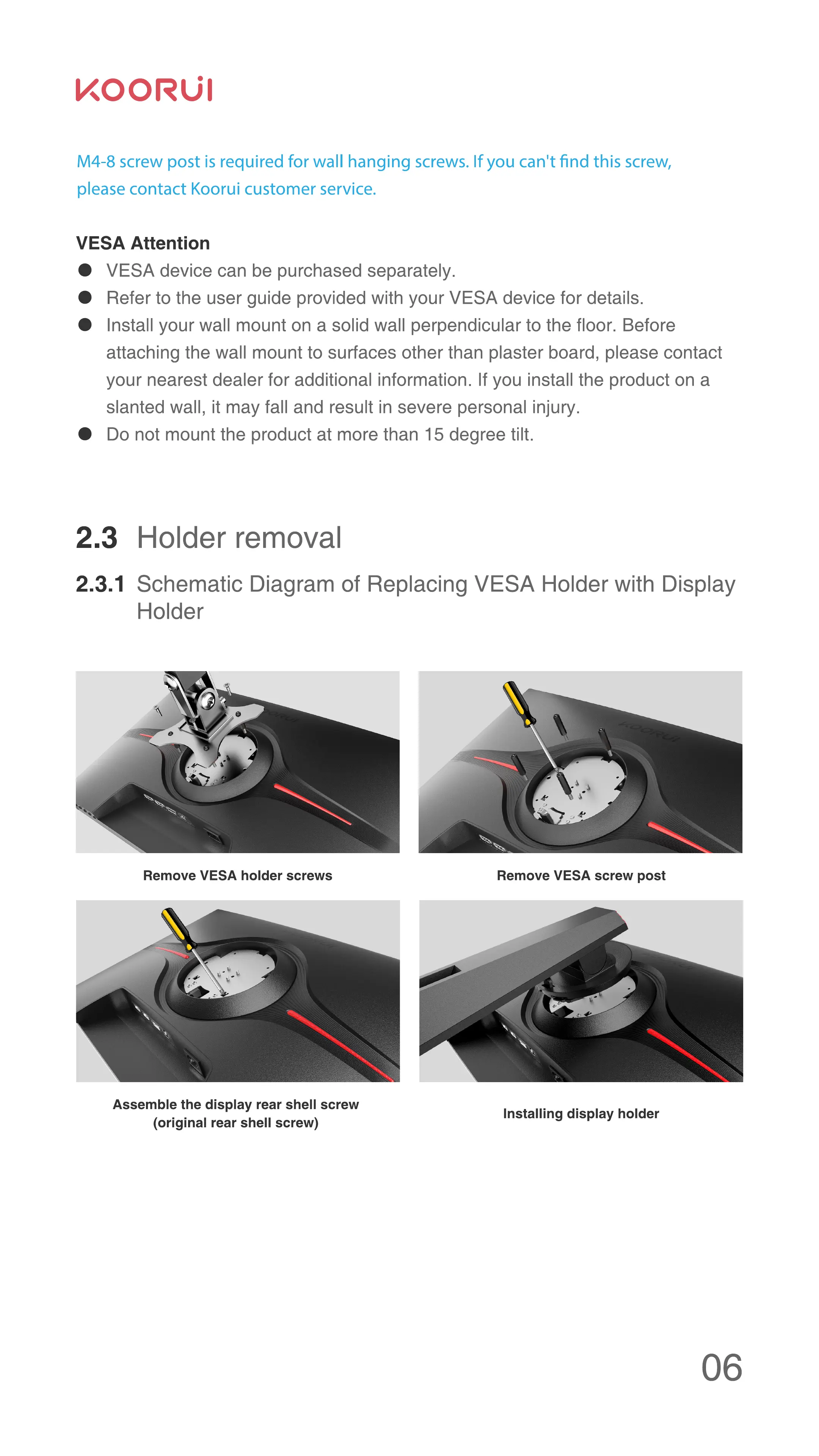

2.3 Holder removal
2.3.1 Schematic Diagram of Replacing VESA Holder with Display
Holder
Remove VESA holder screws
Assemble the display rear shell screw
(original rear shell screw)
Remove VESA screw post
Installing display holder
06
