KOORUI GN07 - Monitor Disassembly; VESA Bracket Removal Diagram

2.3.1 VESA Bracket Removal Diagram
2.3 Monitor Disassembly

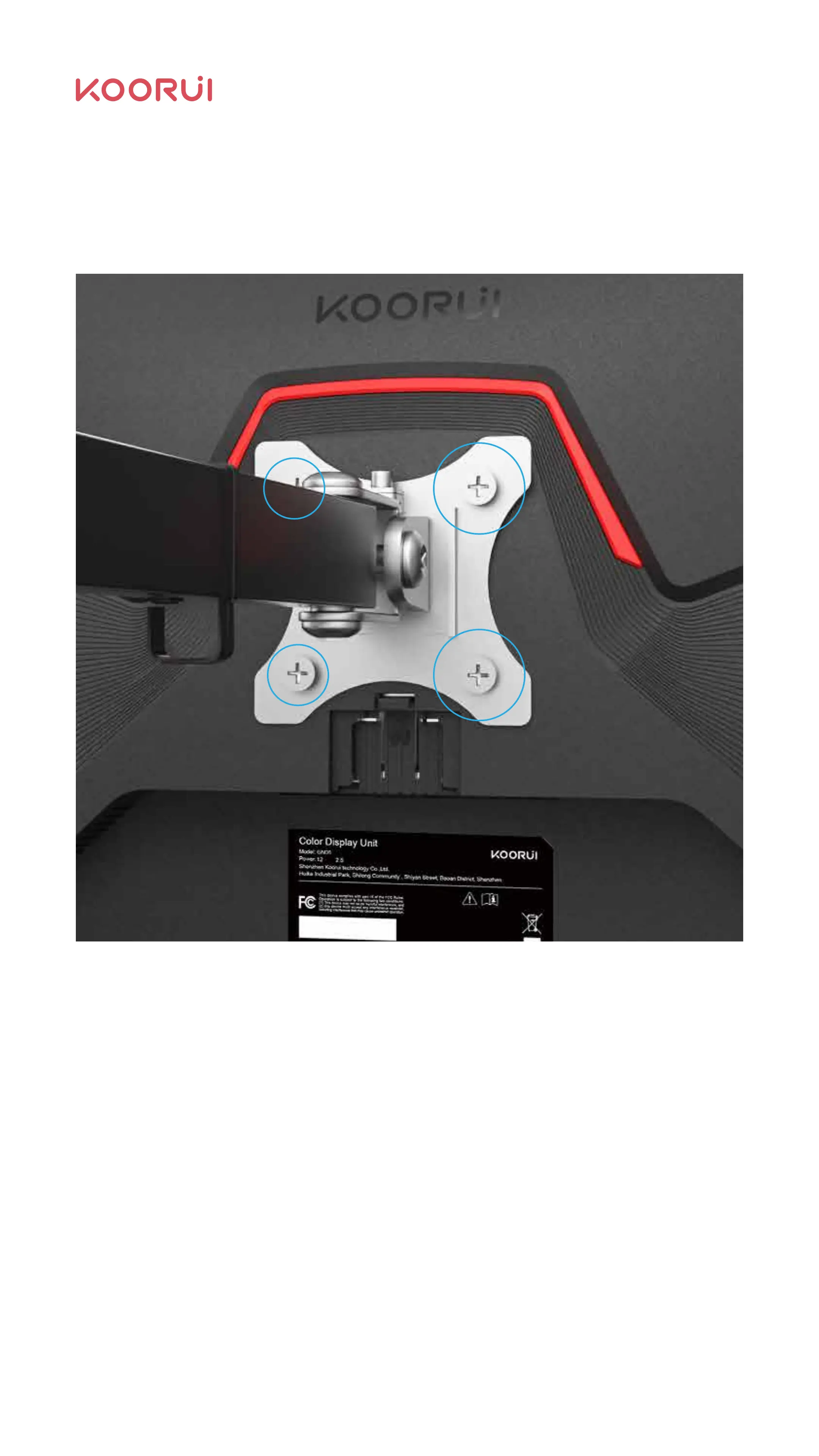

Removed the
VESA screws
●
●
Just remove the screws as shown in the figure. During the process of removal,
please avoid the monitor from falling;
Please follow figure 1.5 (operation of protecting the monitor) to pick and place
the monitor,
06
