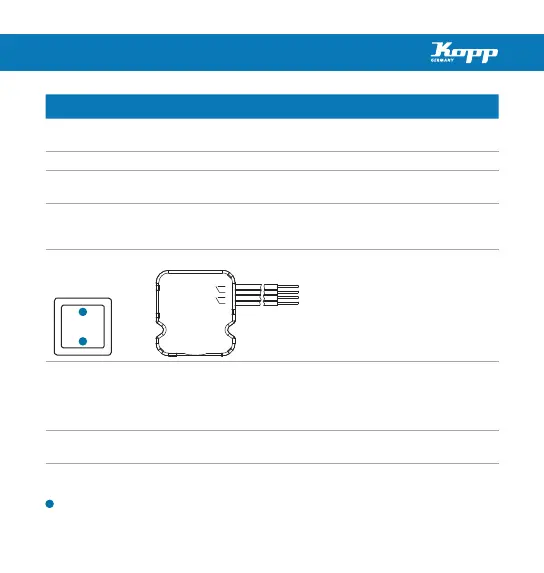

Switching mode
Description Connection of universal radio transmitter to a customary switch (on-
o/two-way/universal switch).
Application Individual control of up to two radio receiver groups.
Connectivity Up to two on-o/two-way/universal switches can be simultaneously
connected to a universal radio transmitter.
DIP switch
Setting
Select mode A. To activate the mode A, remove battery for at least
30 seconds and then reinsert the battery. Set both of the DIP switch
positions to ON.
Pinning diagram
(page 30)
Connect 1st switch
(on-o/two-way/universal switch)
to the input channel 1 / 2.
Connect 2nd switch
(On-o/two-way/universal switch)
to the input channel 3 / 4.
Teach both switch positions (ON/
OFF) on the receiver.
Switching
operation
2 Switch ON 2 on-o/two-way/universal
switch: radio signal „ON“ is transmitted
1 Switch OFF 1 on-o/two-way/universal
switch: radio signal „OFF“ is transmitted
LED signalling With every signal emission, the universal radio
transmitter‘s LED flashes shortly.
actuation point on operating rocker
