Switching mode - Two-circuit switch
Description Connection of the universal radio transmitter to a customary
two-circuit switch.
Application Individual control of up to two radio transmitter groups.
Connectivity A two-circuit switch can be connected to the universal radio transmit-
ter, if both of the twocircuit switch contacts should be used. Up to
two two-circuit switches can be simultaneously connected to the uni-
versal radio transmitter, if only one two-circuit switch contact of either
two-circuit switch is used.
DIP switch
Setting
Select mode A. To activate the mode A, remove battery for
at least 30 seconds and then reinsert the battery.
Set both DIP switch positions to „ON“.

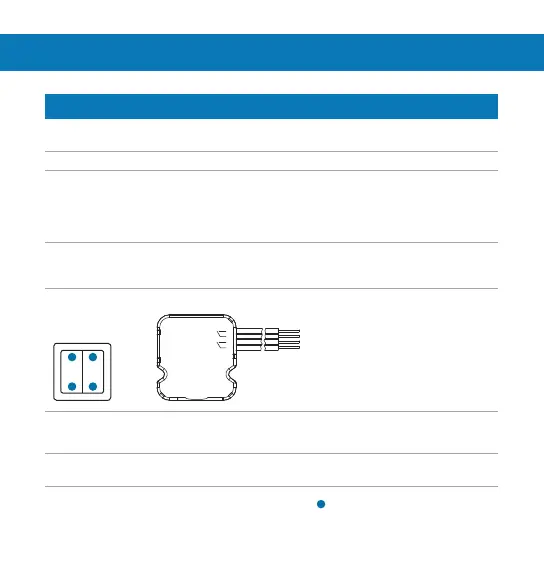

Pinning diagram (page 30) Connect 1st two-circuit switch to
the input channel 1 / 2 or 1 / 4.
Connect 2nd two-circuit switch to
the input channel 3 / 2 or 3 / 4.
All switch positions (2x ON, 2x OFF)
must be teach to the receiver.
Switching
operation
2 Switch ON the 2 two-circuit switch: radio signal „ON“ is transmitted
1 Switch OFF 1 two-circuit switch: radio signal „OFF“ is transmitted
LED signalling With every signal emission, the universal radio transmitter‘s LED
flashes shortly.
actuation point on operating rocker
