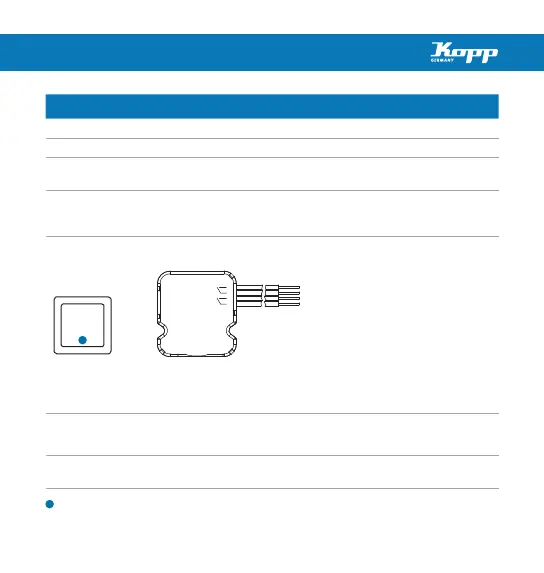

Pushbutton
Description Connection of universal radio transmitter to a customary pushbutton.
Application Individual control of up to two radio receiver groups.
Connectivity Up to two pushbuttons can be simultaneously connected to a universal
radio transmitter.
DIP switch
Setting
Select mode B. To activate the mode B, remove battery for at least 30
seconds and then reinsert the battery.
Set both DIP switch positions to „OFF“.
Pinning diagram Connect 1st pushbutton to the input
channel 1 / 2.
Connect 2nd pushbutton to the
input channel 3 / 4.
When used with RF receiver with
the function push button, note
the following:
In the adjustment „I“ must be set he
Mode „C - dim-function“ Only then
the device is switched on as long as
the push button is pressed.
Switching
operation
1 1 If „OFF“, inch pushbutton 1x: radio signal „ON“ is transmitted
1 1 If „ON“, inch pushbutton 1 x: radio signal „OFF“ is transmitted
LED signalling With every signal emission, the universal radio transmitter‘s LED
flashes shortly.
actuation point on operating rocker actuation point on operating rocker
