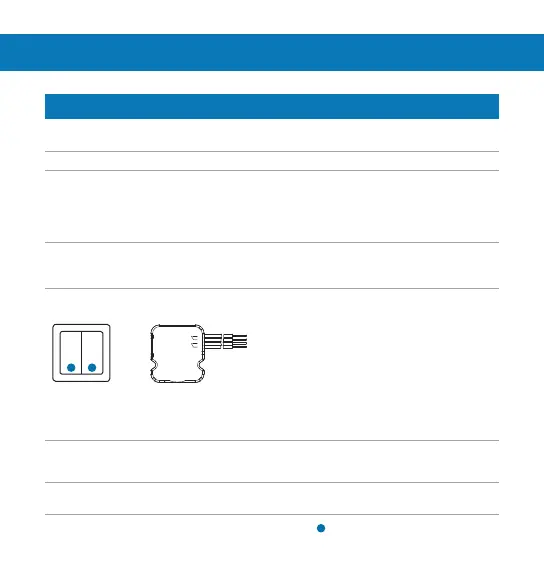

Sequence pushbutton
Description Connection of universal radio transmitter to a customary sequence
pushbutton.
Application Individual control of up to two radio receiver groups.
Connectivity A sequence pushbutton can be connected to the universal radio trans-
mitter, if both of the sequence pushbuttons should be used.
Up to two sequence pushbuttons can be simultaneously connected to
the universal radio transmitter, if only one sequence pushbutton
contact of either sequence pushbutton is used.
DIP switch
Setting
Select mode B. To activate the mode B, remove battery for at least 30
seconds and then reinsert the battery. Set both DIP switch positions
to OFF.
Pinning diagram Connect 1st switching contact of a sequence
pushbutton to the input channel 1 / 2.
Connect 2nd switching contact of a sequence
pushbutton to the input channel 3 / 4.
When used with RF receiver with the function
push button, note the following:
In the adjustment “I” must be set he Mode „C -
dim-function“ Only then the device is switched
on as long as the push button is pressed.
Switching
operation
1 1 If „OFF“, inch pushbutton 1x: radio signal „ON“ is transmitted
1 1 If „ON“, inch pushbutton 1 x: radio signal „OFF“ is transmitted
LED signalling With every signal emission, the universal radio transmitter‘s LED
flashes shortly.
actuation point on operating rocker
