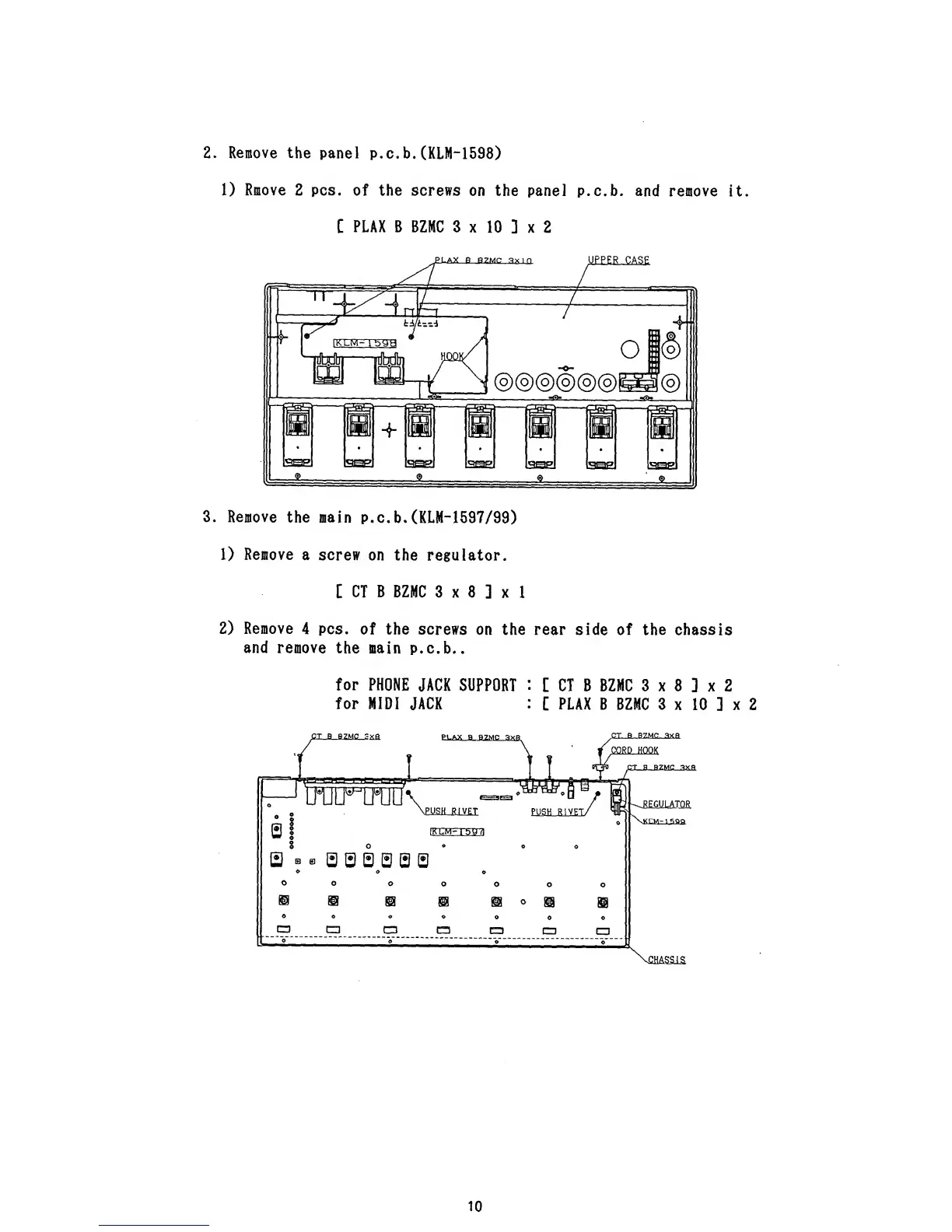

Korg A4 - Remove the Panel P.C.b.; Remove the Main P.C.b.

2. Remove the
panel
p.c.
b.
(KLM-1598)
1)
Rmove
2
pcs.
of the
screws
on the
panel p.c.b.
and
remove
it.
C
PLAX
B BZMC
3
x
10
]
x 2
3.
Remove
the
main
p.c.
b.
(KLM-1597/99)
1)
Remove
a
screw
on the
regulator.
[
CT
B BZMC
3 x
8
]
x 1
2)
Remove
4
pcs.
of the
screws
on the rear side
of the chassis
and remove
the
main p.c.b..
for
PHONE
JACK SUPPORT
:
[
CT B
BZMC
3 x
8
]
x
2
for
MIDI
JACK
:
[
PLAX
B
BZMC
3
x
10
]
x 2
