Korg A4 User Manual

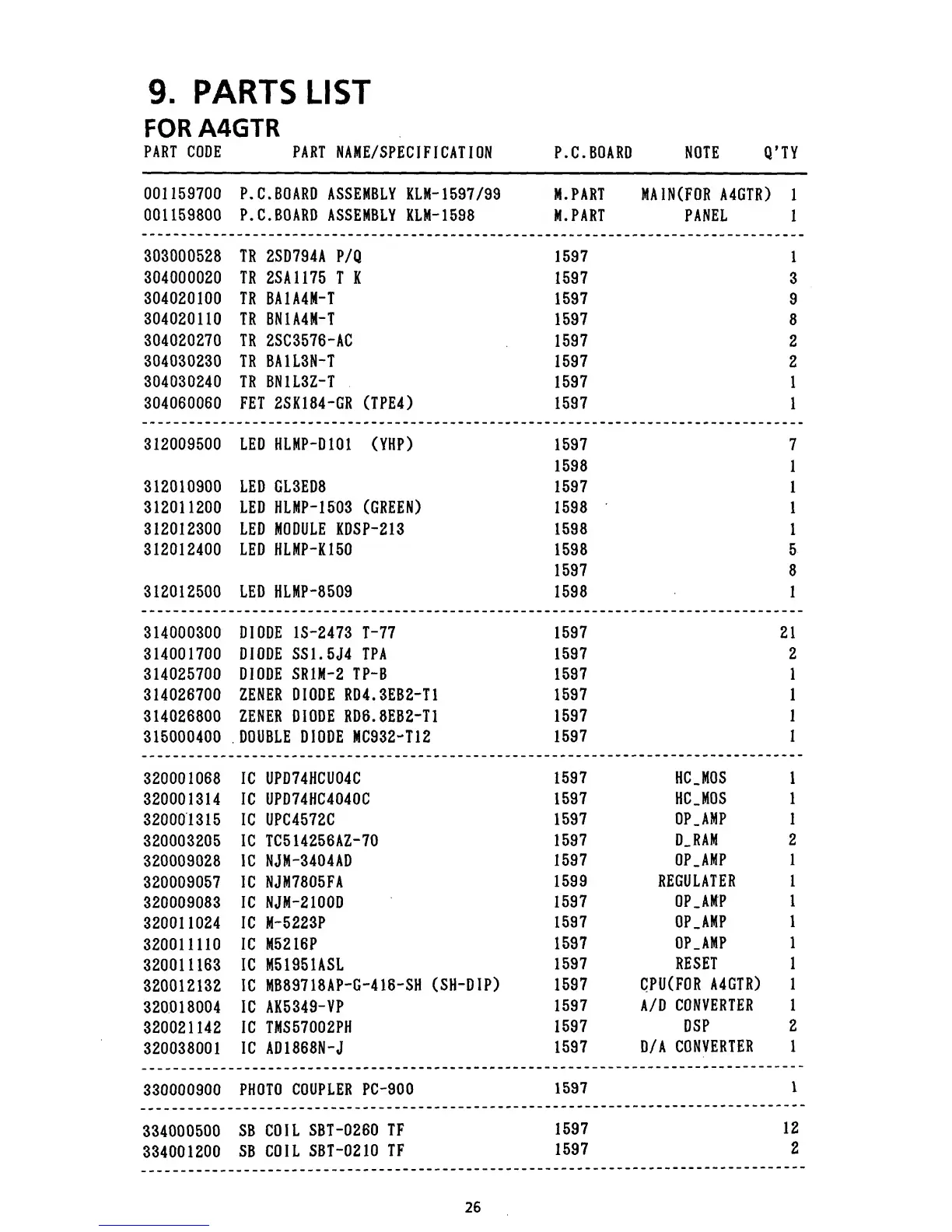

9.
PARTS
LIST
FOR
A4GTR
PART CODE PART
NAME/SPECIFICATION
P.C.
BOARD
NOTE
Q’TY
001159700 P.C.
BOARD ASSEMBLY
KLM- 1597/99
M.PART
MAINCFOR
A4GTR)
1
001159800
P.C.
BOARD ASSEMBLY KLM-1598
M.PART
PANEL
1
303000528
TR
2SD794A
P/Q 1597
1
304000020
TR 2SA1175
T K 1597
3
304020100
TR BA1A4M-T 1597
9
304020110
TR BN1A4M-T
1597 8
304020270
TR 2SC3576-AC
1597
2
304030230
TR
BA1L3N-T 1597
2
304030240 TR
BN1L3Z-T
1597
1
304060060
FET 2SK184-GR (TPE4) 1597
1
312009500 LED HLMP-D
101
(YHP) 1597 7
1598
1
312010900 LED GL3ED8 1597
1
312011200
LED HLMP-1503
(GREEN) 1598
1
312012300 LED MODULE
KDSP-213
1598
1
312012400 LED HLMP-K
150
1598 5
1597
8
312012500 LED HLMP-8509 1598 1
314000300 DIODE
1S-2473 T-77
1597 21
314001700 DIODE
SS1.5J4
TPA
1597
2
314025700 DIODE
SR1M-2
TP-B
1597
1
314026700 ZENER DIODE RD4.3EB2-T1
1597
1
314026800
ZENER
DIODE RD6.8EB2-T1
1597
1
315000400 DOUBLE DIODE MC932-T12
1597
1
320001068 IC
UPD74HCU04C
1597
HC.MOS
1
320001314 IC
UPD74HC4040C
1597
HC.MOS 1
320001315 IC UPC4572C
1597
OP. AMP 1
320003205 IC TC514256AZ-70
1597
D.RAM
2
320009028 IC
N
JM—
3404
AD
1597
OP.AMP
1
320009057
IC
NJM7805FA
1599 REGULATER
1
320009083 IC
NJM-2100D
1597
OP.AMP
1
320011024 IC
M-5223P
1597
OP.AMP 1
320011110
IC
M5216P
1597
OP.AMP
1
320011163
IC
M51951ASL
1597
RESET
1
320012132
IC
MB89718AP-G-416-SH
(SH-DIP) 1597
CPUCFOR
A4GTR)
1
320018004
IC
AK5349-VP
1597
A/D
CONVERTER
1
320021142
IC
TMS57002PH
1597
DSP
2
320038001
IC
AD1868N-J
1597
D/A
CONVERTER 1
330000900
COUPLER PC-900
1597
1
334000500
SB
COIL
SBT-0260
TF
1597
12
334001200
SB
COIL
SBT-0210
TF
1597
2
26
