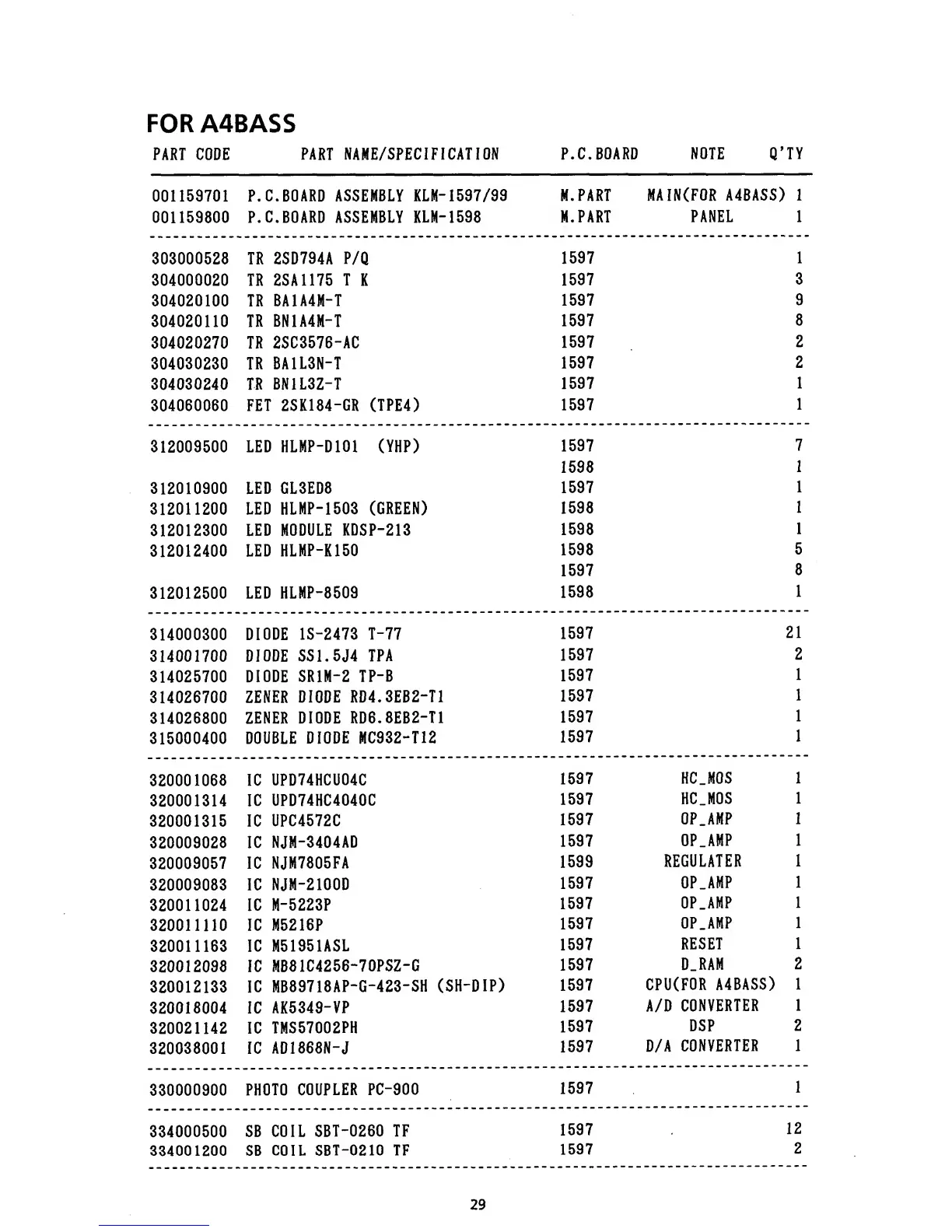

A4BASS
PART CODE
PART NAME/SPECIFICATION
P.C.
BOARD
NOTE
Q’TY
001159701
P.C. BOARD ASSEMBLY
KLM-
1597/99
M.PART
MA
IN(FOR
A4BASS)
1
001159800
P.C. BOARD ASSEMBLY KLM-1598 M.PART
PANEL 1
303000528 TR 2SD794A
P/Q
1597
1
304000020 TR 2SA1175
T
K
1597
3
304020100
TR
BA1A4M-T
1597
9
304020110 TR BN1A4M-T
1597
8
304020270 TR
2SC3576-AC
1597
2
304030230 TR
BA1L3N-T
1597
2
304030240 TR
BN1L3Z-T
1597
1
304060060 FET
2SK184-GR (TPE4)
1597
1
312009500 LED HLMP-D101
(YHP)
1597
7
1598
1
312010900
LED GL3ED8
1597
1
312011200 LED
HLMP-1503
(GREEN)
1598
1
312012300
LED MODULE
KDSP-213
1598
1
312012400
LED
HLMP-K
1 50
1598
5
1597
8
312012500
LED
HLMP-8509
1598
1
314000300
DIODE 1S-2473 T-77
1597
21
314001700
DIODE
SS1.5J4
TPA
1597
2
314025700
DIODE
SR1M-2
TP-B
1597
1
314026700
ZENER
DIODE
RD4.3EB2-T1
1597
1
314026800 ZENER
DIODE RD6.
8EB2-T1
1597
1
315000400
DOUBLE
DIODE
MC932-T12
1597
1
320001068
IC
UPD74HCU04C
1597
HC.MOS
1
320001314
IC
UPD74HC4040C
1597
HC.MOS
1
320001315
IC
UPC4572C
1597
OP.AMP
1
320009028
IC
NJM-3404AD
1597
OP.AMP
1
320009057
IC NJM7805FA
1599
REGULATER
1
320009083 IC
NJM-2100D
1597
OP.AMP
1
320011024
IC M-5223P
1597
OP.AMP
1
320011110 IC M5216P
1597
OP.AMP
1
320011163
IC
M51951ASL
1597
RESET
1
320012098 IC
MB81C4256-70PSZ-G
1597
D.RAM
2
320012133
IC
MB89718AP-G-423-SH
(SH-DIP)
1597
CPUCFOR
A4BASS)
1
320018004
IC
AK5349-VP
1597
A/D
CONVERTER
1
320021142 IC
TMS57002PH
1597
DSP
2
320038001 IC AD1868N-J
1597
D/A
CONVERTER
1
330000900
COUPLER PC-900
1597
1
334000500
SB
COIL
SBT-0260 TF
1597
12
334001200
SB
COIL SBT-0210
TF
1597
2
29
