Set Up Overview
Guitar Lab:
Connect an electric guitar to the input of a stand-alone guitar processor/external amp simulator (such as the Korg PXmini).
Then connect the output that device to the Student Interface Instrument In jack. See Fig. 14 for a detailed diagram.
1. Front:
a. Audio device (iPod, laptop, etc.) to Student Interface Aux In 1.
b. Headphones to each headphone input.
2. Back:
a. Guitar output to stand-alone guitar processor/external amp simulator.
b. Stand-alone guitar processor/external amp simulator output to Instrument In 2.
c. Network to Teacher Unit using CAT5 cable.

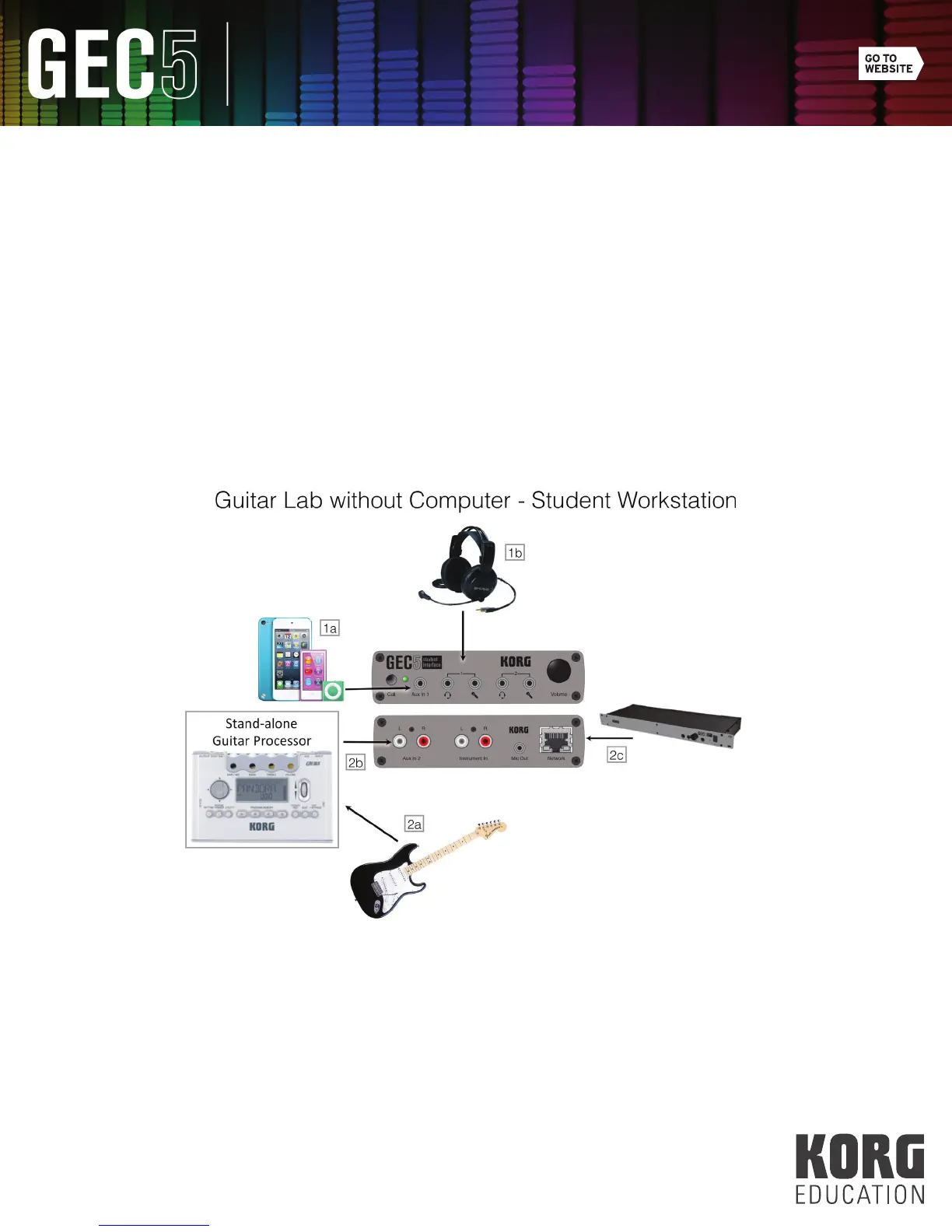

(Fig. 14)
