Set Up Overview
Guitar Lab with Computer:
Connect an electric guitar to the input of a computer audio interface and the output of the audio interface to the Student
Interface Aux In 2 jack. In this situation you do not need to connect anything to the Student Interface Instrument In jack.

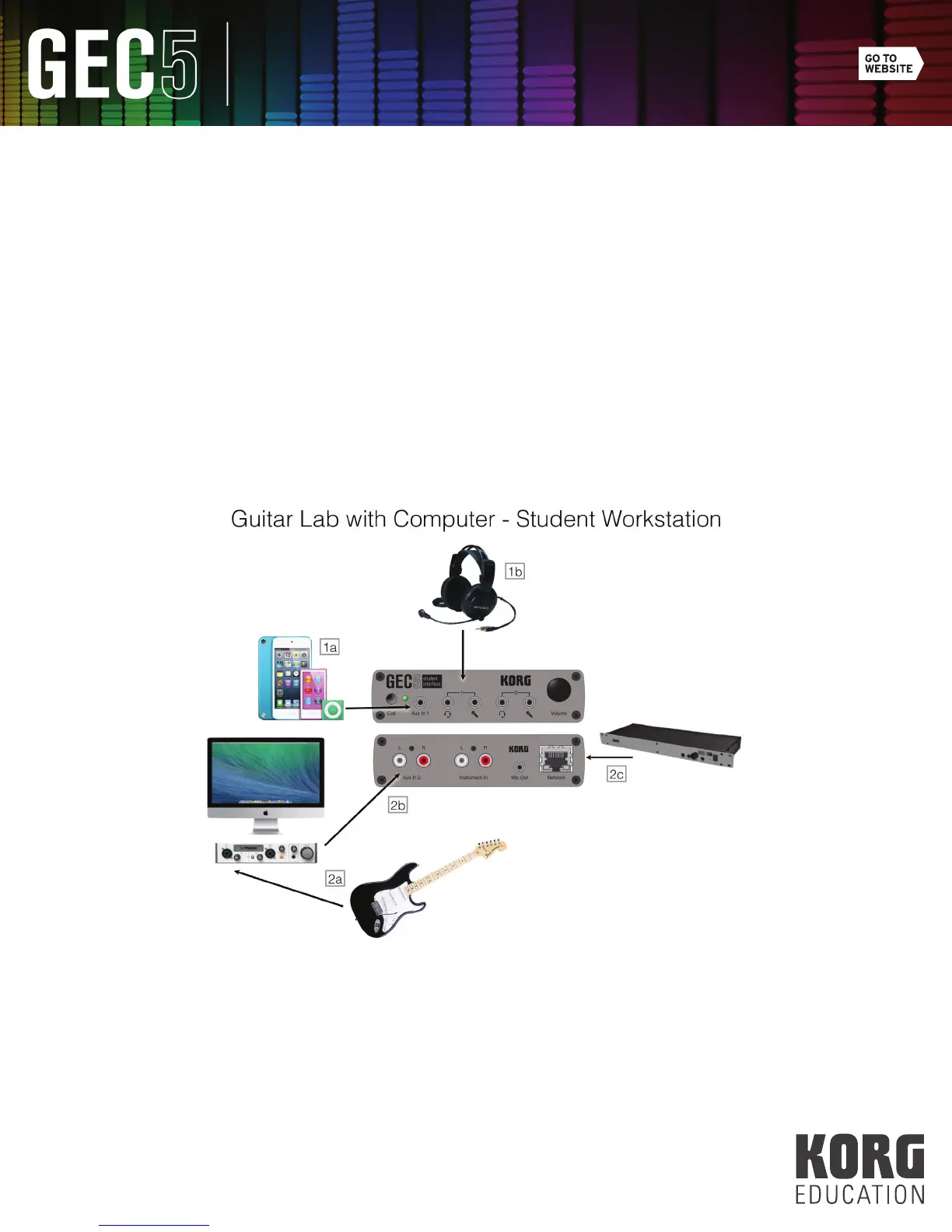

See Fig. 15 for a detailed diagram.
1. Front:
a. Audio device (iPod, laptop, etc.) to Student Interface Aux In 1.
b. Headphones to each headphone input.
2. Back:
a. Guitar output to computer audio interface input.
b. Computer audio interface output to Aux In 2.
c. Network to Teacher Unit using CAT5 cable.
(Fig. 15)
