Hard disk expansion for Korg iS40-iS50 keyboards
_________________________________________________________________________________
_

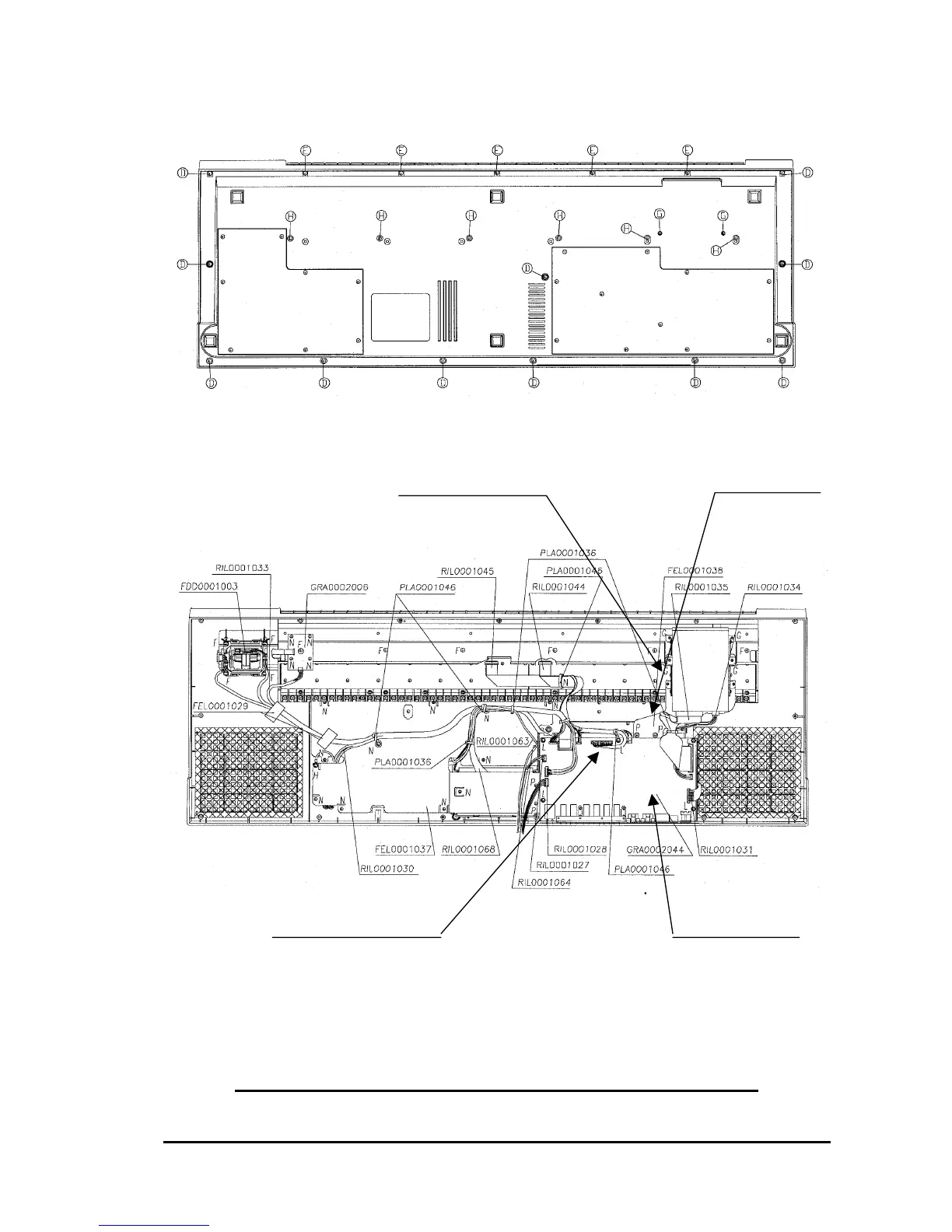

Turn the keyboard over again and fold up the complete front panel. The "Main Board" (main control
board) of the iS40/iS50 will become visible.
Host Adapter Position Ground
Cn2 Mother board connector Mother board
5. Installing of the iS35/iS40/iS50 Hard Disk host adapter board
Page 3
