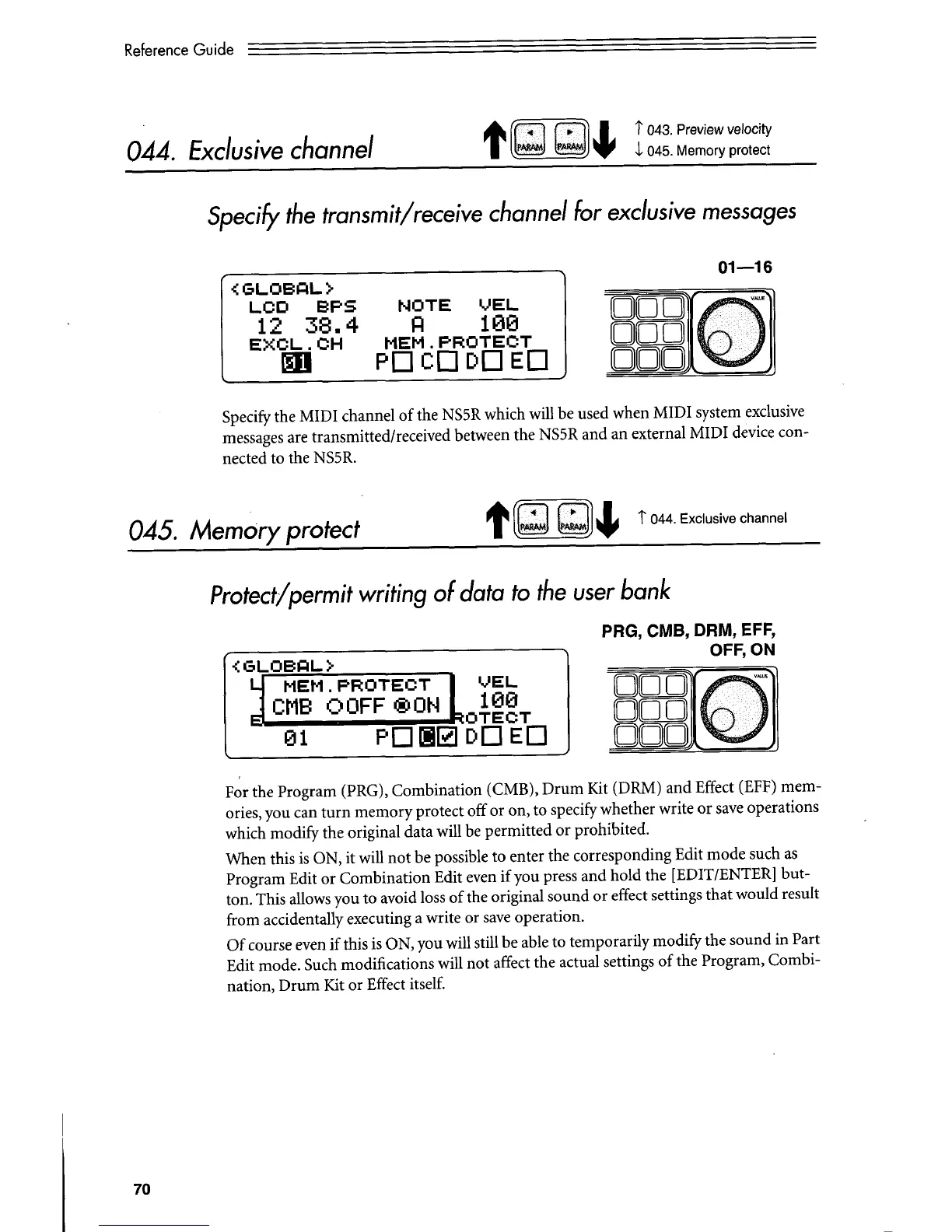

Korg NS5R - Exclusive Channel: Specify the Transmit;Receive Channel for Exclusive Messages; Memory Protect: Protect;Permit Writing of Data to the User Bank
