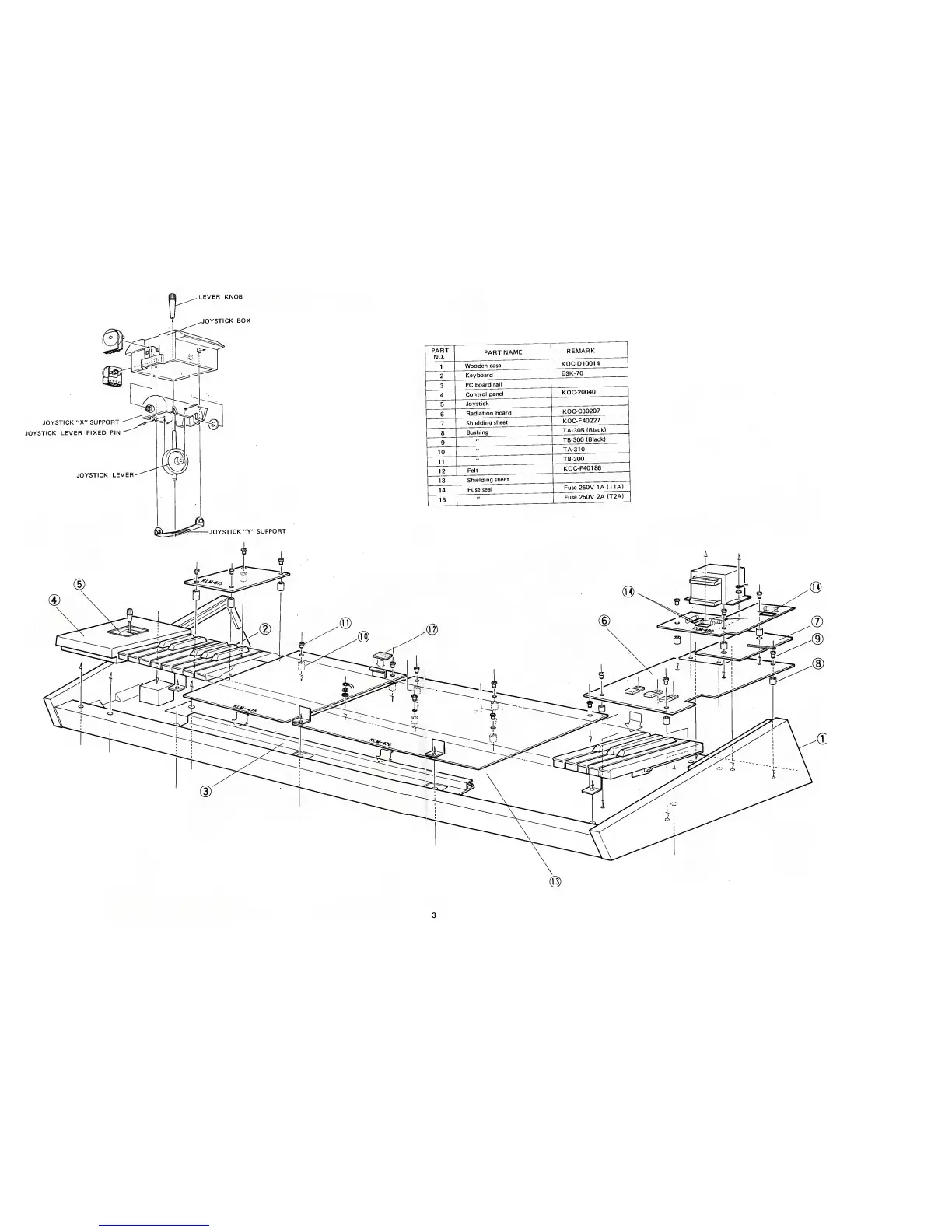

LEVER
KNOB
PART
NO.
PART
NAME
REMARK
1
Wooden
case
KOC-D10014
2
Keyboard
ESK-70
3
PC
board
rail
4
Control
panel
KOC-20040
5
Joystick
6
Radiation
board
KOC-C30207
7
Shielding
sheet
KOC-F40227
8
Bushing
TA-305
(Black)
9
••
TB-300
(Black)
10
-
TA-310
11
■■
TB-300
12
Felt
KOC-F40186
13
Shielding
sheet
14
Fuse
seal
Fuse
250V
1A
(T1
A)
15
"
Fuse
250V
2A
(T2A)
