Korg POLYSIX Service Manual

7)
Set
INTENSITY
to 0
and
check TP-3 with
oscil-
loscope.
Set EFFECT to
ENSEMBLE
and
confirm that
the
minimum ENSEMBLE
clock
time is 4
8/Lisec.
Set
EFFECT to
PHASE
and
confirm that
maximum
PHASE
clock
cycle is
8
~
12/isec,
and
minimum
is 1.5
~
3/isec.
8)
Set INT to 10
and
confirm that
maximum
PHASE
clock cycle
is 2.5
~
3.5|Jsec,
and
minimum is
1.0
~
2.0/Jsec.
9)
SET
INT
to
0
after completing
the
above.
10)
Set
EFFECT
to
CHORUS and
confirm
maximum
clock
cycle
of 1
6
—
22;usec., and
minimum of
8
~
12/usec.

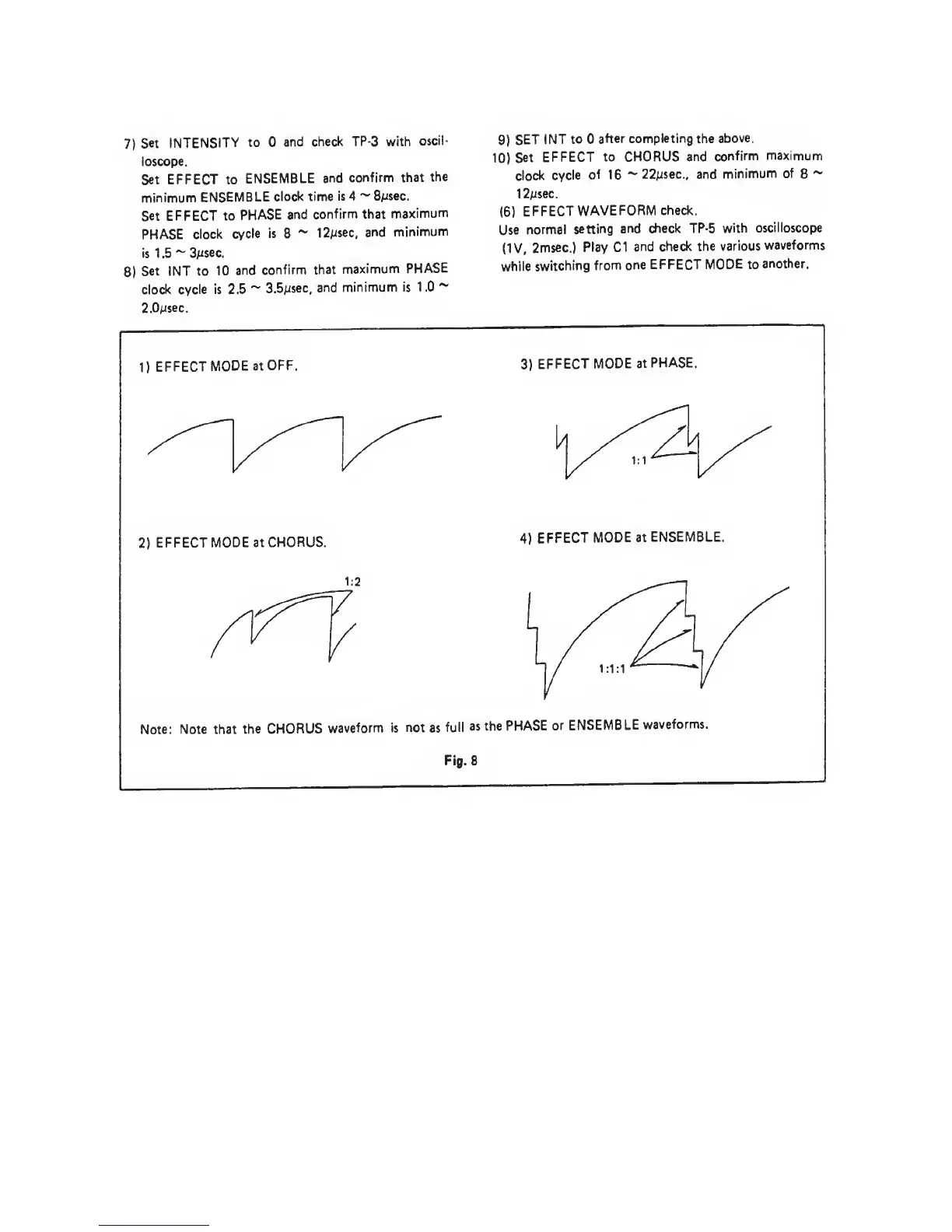

(6)
EFFECT
WAVEFORM
check.
Use
normal
setting
and check
TP-5 with
oscilloscope
(IV,
2msec.) Play
Cl
and
check the
various
waveforms
while
switching
from
one
EFFECT MODE to
another.
1)
EFFECT
MODE
at
OFF.
2)
EFFECT MODE
at CHORUS.
3)
EFFECT
MODE
at
PHASE.
4)
EFFECT
MODE at
ENSEMBLE.
Note: Note
that
the CHORUS
waveform is
not
as
full
as the
PHASE
or
ENSEMBLE
waveforms.
Fig. 8

Korg POLYSIX Specifications

General

Type	Analog
Polyphony	6 voices
Oscillators	1 VCO per voice
Effects	Chorus, Phaser, Ensemble
Keyboard	61 keys
Memory	32 patches
Year Released	1981
Waveforms	Sawtooth, Pulse
Filter	24dB/octave Low Pass Filter
LFO	Triangle
