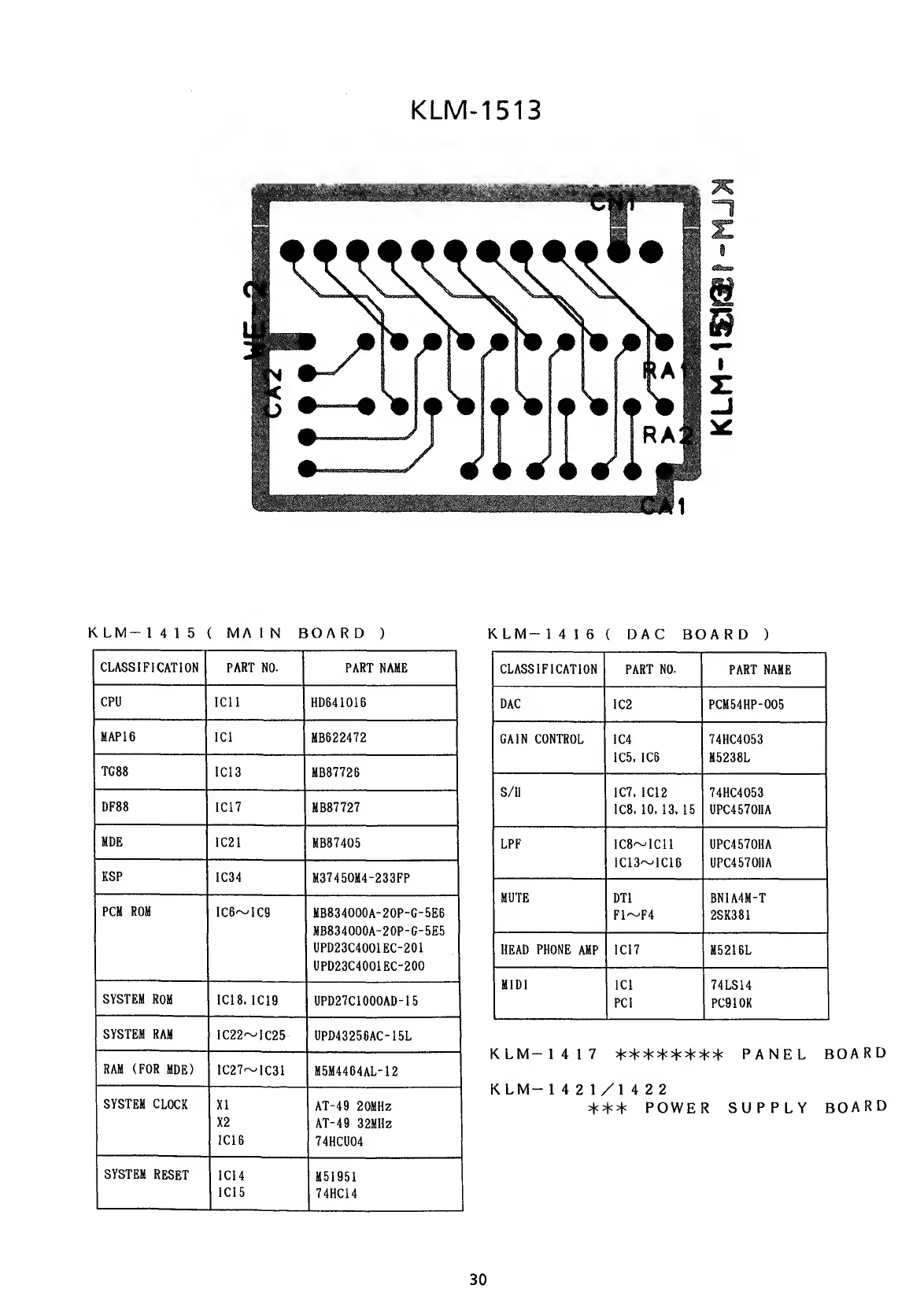

KLM-1513
EG»1
KLM-1415
(
MAIN
BOARD
)
KLM-1416
(
DAC
BOARD
)
CLASSIFICATION PART
NO. PART NAME
CPU
IC11
HD641016
MAP16
IC1
MB622472
TG88
IC13
MB87726
DF88
IC17
MB87727
MDE
IC21
MB87405
KSP
IC34
M37450M4-233FP
PCM ROM
IC6~1C9
MB834000A-20P-G-5E6
MB834000A-20P-G-5E5
UPD23C4001EC-201
UPD23C4001EC-200
SYSTEM
ROM
IC18,
IC19
UPD27C1000AD-15
SYSTEM RAM
IC22~IC25
UPD4325CAC-15L
RAM (FOR
MDE)
IC27~IC31
M5M4464AL-12
SYSTEM CLOCK
XI
X2
IC16
AT-49
20MHz
AT-49
32MHz
74HCU04
SYSTEM
RESET
1C14
IC15
M51951
74HC14
CLASSIFICATION
PART NO.
PART
NAME
DAC
IC2
PCM54HP-005
GAIN CONTROL
IC4
1C5.
1C6
74HC4053
M5238L
S/H 1C7, IC12
IC8, 10, 13. 15
74HC4053
UPC4570IIA
LPF
IC8~IC11
IC13~IC1D
UPC4570HA
UPC4570I1A
MUTE
DTI
F1~F4
BN1A4M-T
2SK381
HEAD PHONE AMP
IC17 M5216L
MIDI IC1
PCI
74LS14
PC910K
KLM-1417
********
PANEL
BOARD
KLM- 14
2 1/14
2 2
***
POWER SUPPLY
BOARD
30
