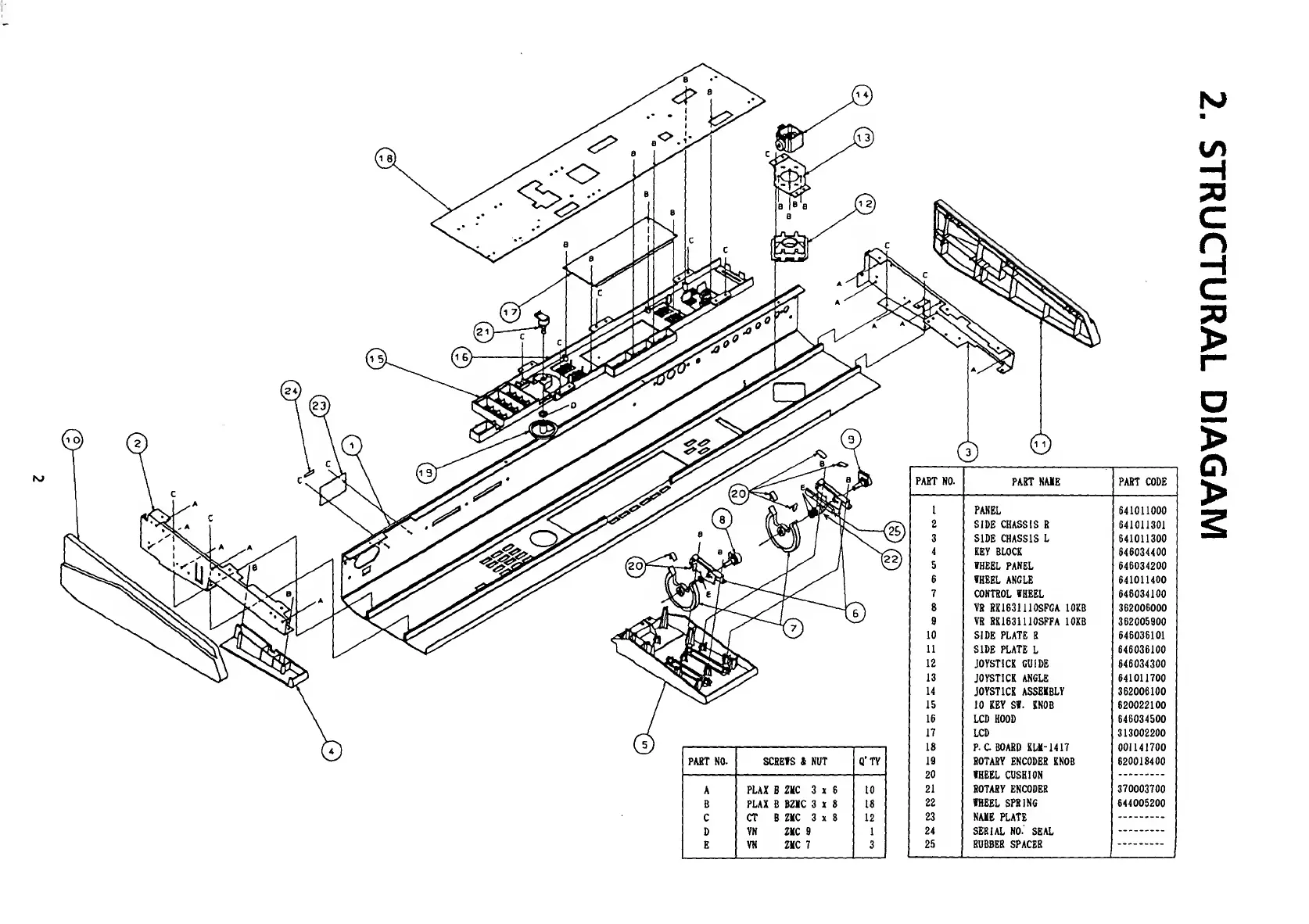

Korg Wavestation - Structural Diagram

d>
©
PART NO. SCBETS i NUT Q'TV
A
B
C
D
E
PLAX B
ZKC 3x6
PLAX B BZIC 3x8
CT
B
ZKC 3 x 8
VN
ZKC
9
VN ZKC 7
10
18
12
1
3
PAST NO.
PABT NAME PART CODE
1
PANEL 641011000
2 SIDE CHASSIS
B
641011301
3 SIDE CHASSIS L 641011300
4
KEY BLOCK
646034400
5
WHEEL PANEL 646034200
6
WHEEL ANCLE 641011400
7
CONTROL WHEEL 646034100
8
VK EK1631U0SFGA 10KB
362006000
9 VR
RK1631110SFFA 10KB 362005900
10 SIDE PLATE
R
646036101
11
SIDE PLATE
L
646036100
12
JOYSTICK
GUIDE 646034300
13
JOYSTICK ANGLE
641011700
14
JOYSTICK ASSEMBLY 362006100
15
10
KEY
SW. KNOB
620022100
16 LCD HOOD 646034500
17
LCD 313002200
18
P. C BOARD KLK-1417 001141700
19
ROTARY
ENCODER KNOB
620018400
20
WHEEL
CUSHION
21 ROTARY ENCODER 370003700
22 WHEEL SPRING 644005200
23
24
25
NAKE
PLATE
SERIAL NO. SEAL
RUBBER SPACES
c
n
H
C
>
g
>
>
