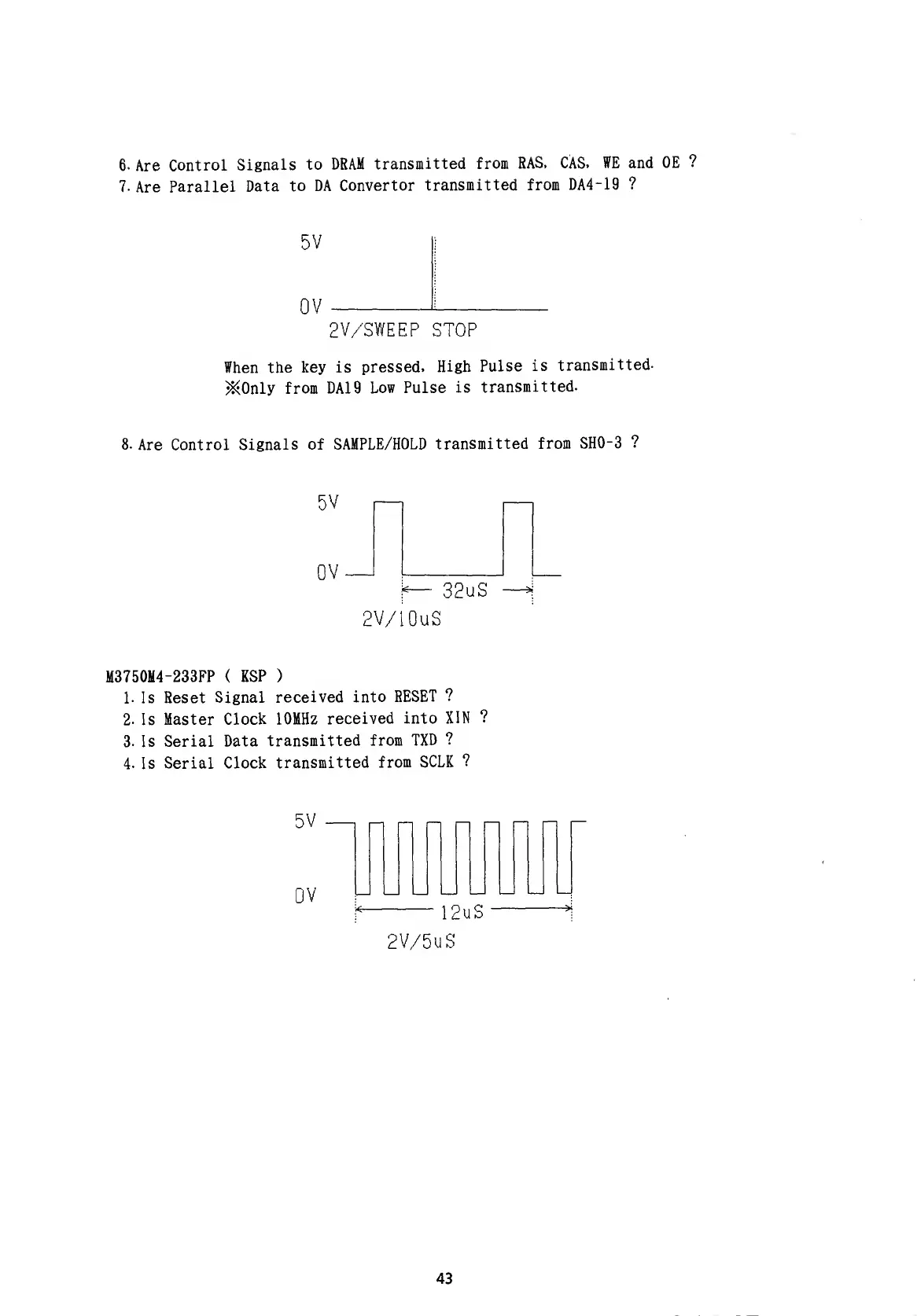

6.
Are
Control
Signals
to
DRAM
transmitted
from
RAS, CAS, WE and
OE
?
7.
Are
Parallel
Data
to DA
Convertor
transmitted from
DA4-19
?
5V
OV
2V/SWEEP
STOP
When
the key is
pressed.
High
Pulse
is
transmitted.
j^Only
from DAI 9
Low Pulse
is
transmitted.
8. Are Control
Signals of
SAMPLE/HOLD
transmitted
from
SHO-3
?
5V
OV
32uS
2V/10uS
M3750M4-233FP (
KSP
)
1.
Is Reset
Signal
received
into
RESET
?
2. Is
Master Clock
10MHz
received
into
XIN
?
3.
Is Serial
Data
transmitted
from
TXD
?
4.
Is
Serial Clock
transmitted
from SCLK
?
5V
OV
12uS
2V/5uS
43
